-20°c to +40°c

None

None

IP65

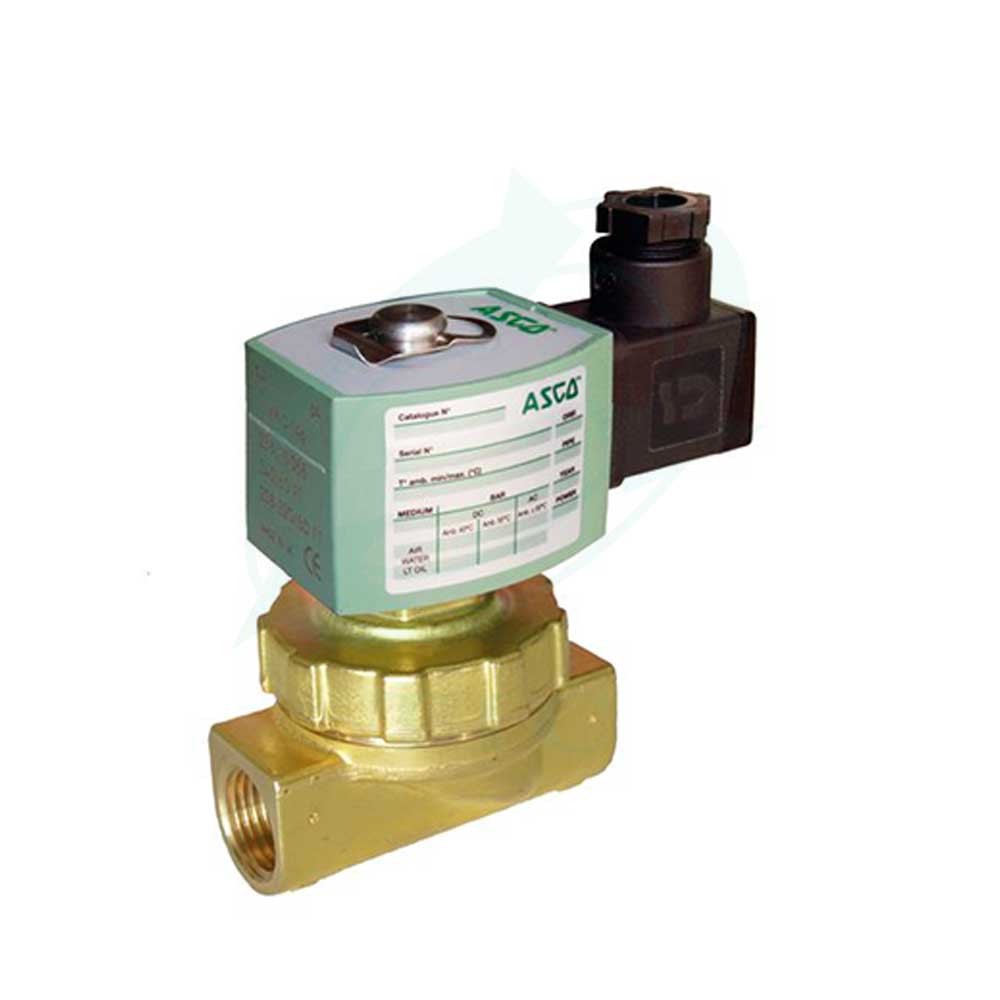

• Small compact sized valves particularly designed for hot water and steam,
compatible with the seal materials used
• Lightweight stamped steel pistons giving all-round support to resilient, tight seal
discs
• Valves require a minimum operating pressure of 0,35 bar
• All products are covered by the Pressure Equipment Directive 97/23/EC and are
suitable for group 1 and 2 fl uids
• The solenoid valves satisfy all relevant EC Directives

Ensure that the compatibility of the fl uids in contact with the materials is verifi ed
Body Brass
Core tube Stainless steel
Core and plugnut Stainless steel
Springs Stainless steel
Seat Brass
Seals EPDM
Discs EPDM or PTFE
- Fluid in the system: Air , steam
-Differential pressure (PS) 0,35 - 16 bar [1 bar = 100kPa]
- Fluid temperature range -10 to +185 °c
- Ambient temperature range -10 to +40 °c
- Standard voltages DC (=): 24VAC (~):24V - 115V - 230V / 50 Hz
