-25°c ถึง +55°c

None

None

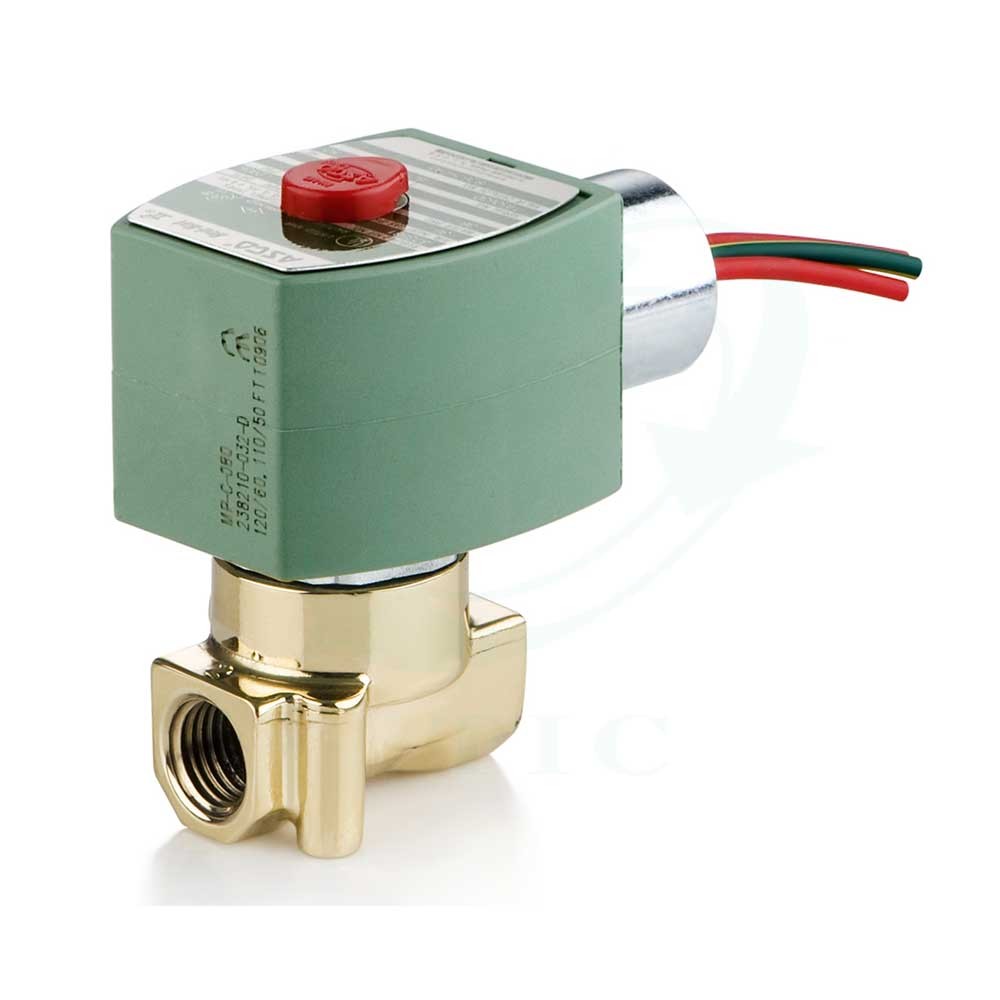

Specification:Welded core tube provides higher pressure ratings
• Reliable, proven design with high flows
• Small poppet valves for tight shutoff
• Lead-free versions available for Safe Drinking
Water Act Compliance
• Wide range of elastomers for specialty service applications
• Mountable in any position
• Tapped mounting holes in body standard

Ensure that the compatibility of the fl uids in contact with the materials is verifi ed

- Fluid in the system: Air , water
-Differential pressure (PS) 0,35 - 16 bar [1 bar = 100kPa]
- Fluid temperature range -20 to +60 °c
- Ambient temperature range -20 to +55 °c
- Standard voltages DC (=): 24VAC (~):24V - 115V - 230V / 50 Hz

IP65
