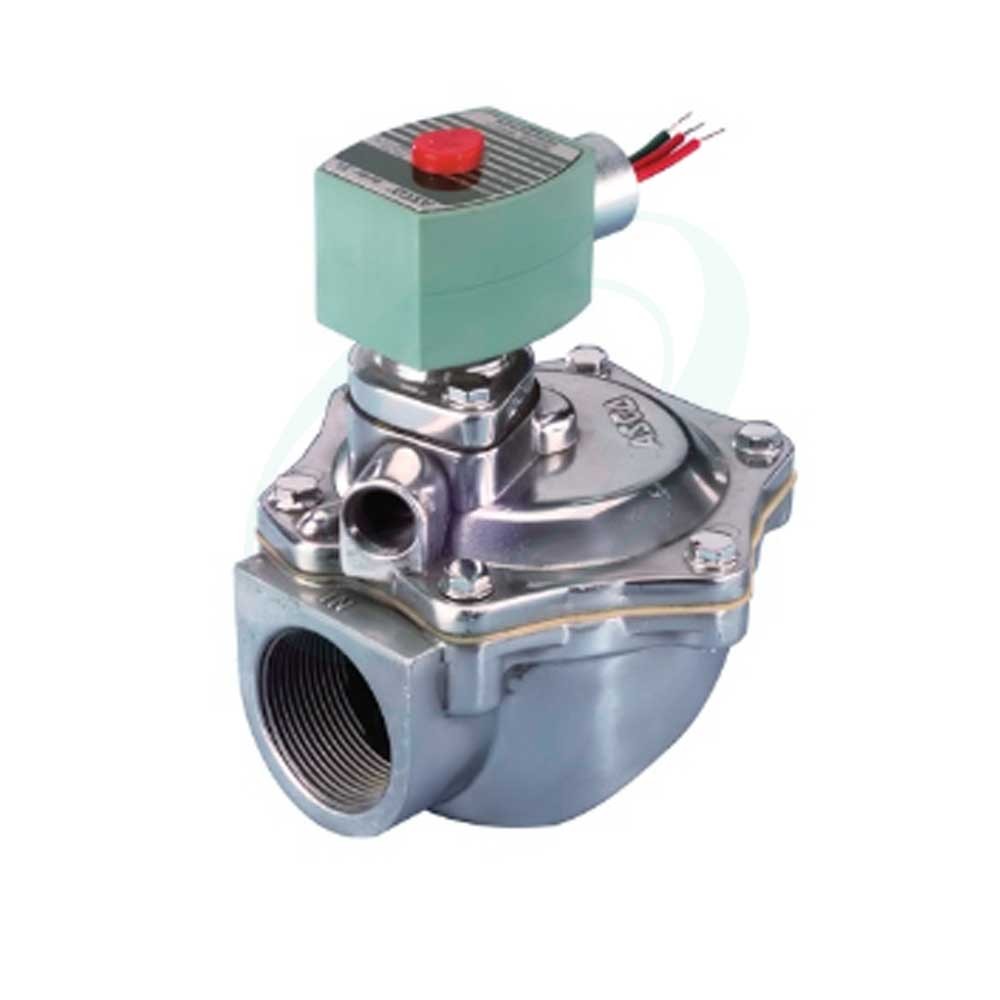

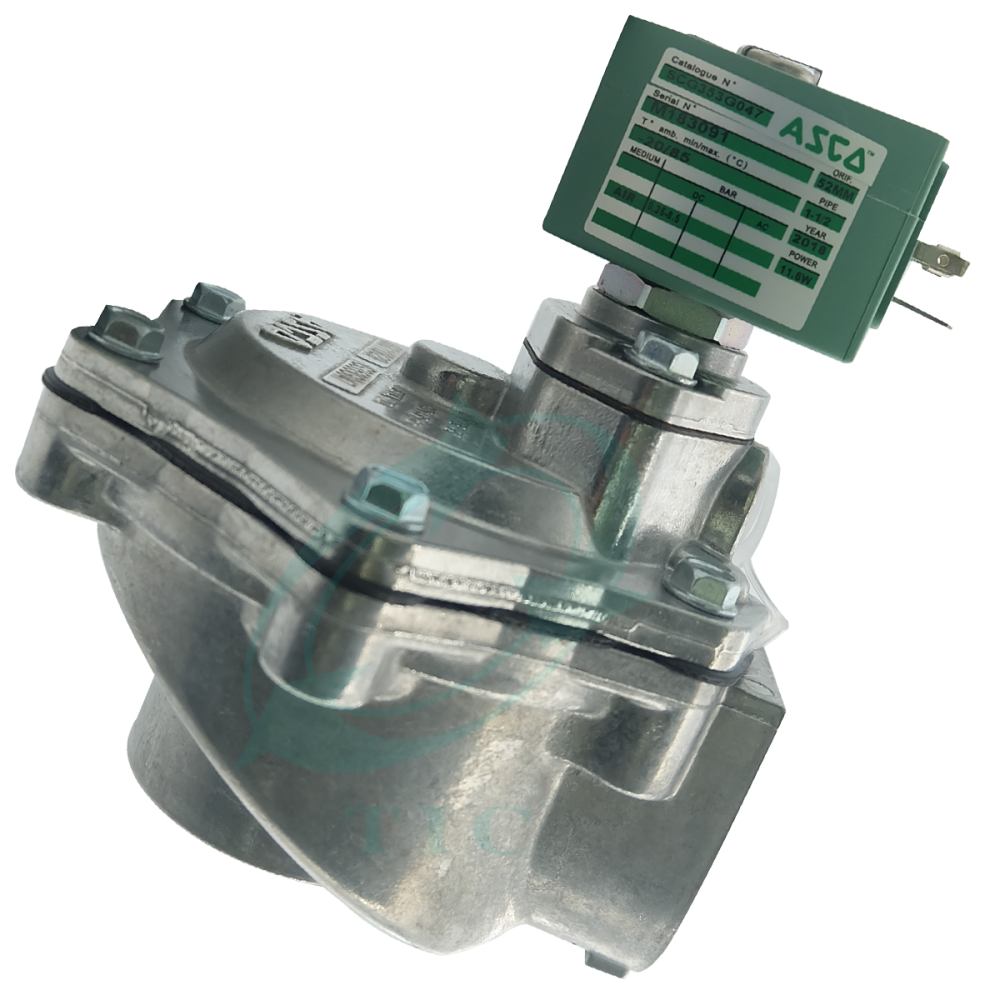

Solenoide Valves
Brand : Asco
|
Model : 353 Pulse SERIES |
Type : Level/Flow/Pressure and Solenoid valves Properties
operating temperature range
-20°c ถึง +85°c
output
None
Current rating
None
IP
IP67
details
- The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
-The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
- Fluid in the system: Air
-Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]
- Ambient temperature range -20 to +85°c
- Standard voltages DC (=): 24VAC (~):24V - 115V - 230V / 50 Hz
-The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
- Fluid in the system: Air
-Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]
- Ambient temperature range -20 to +85°c
- Standard voltages DC (=): 24VAC (~):24V - 115V - 230V / 50 Hz
Data Sheet
