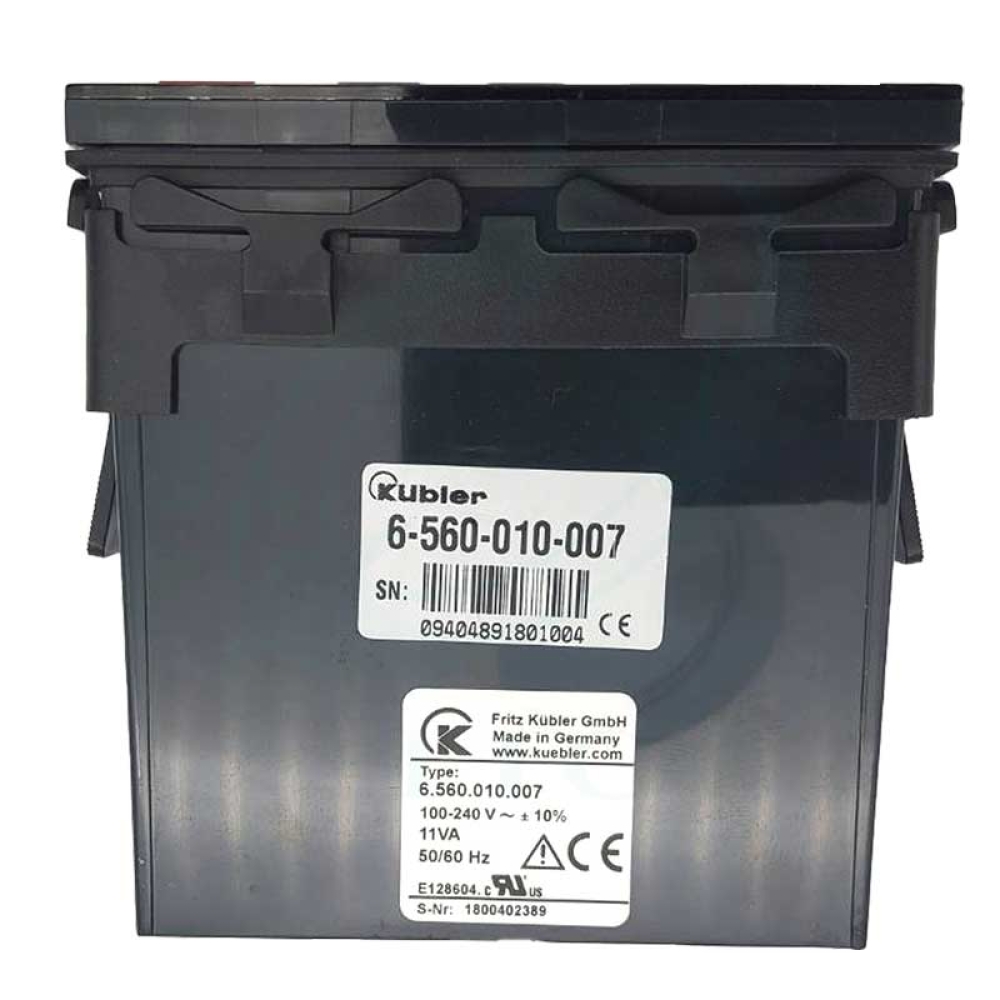

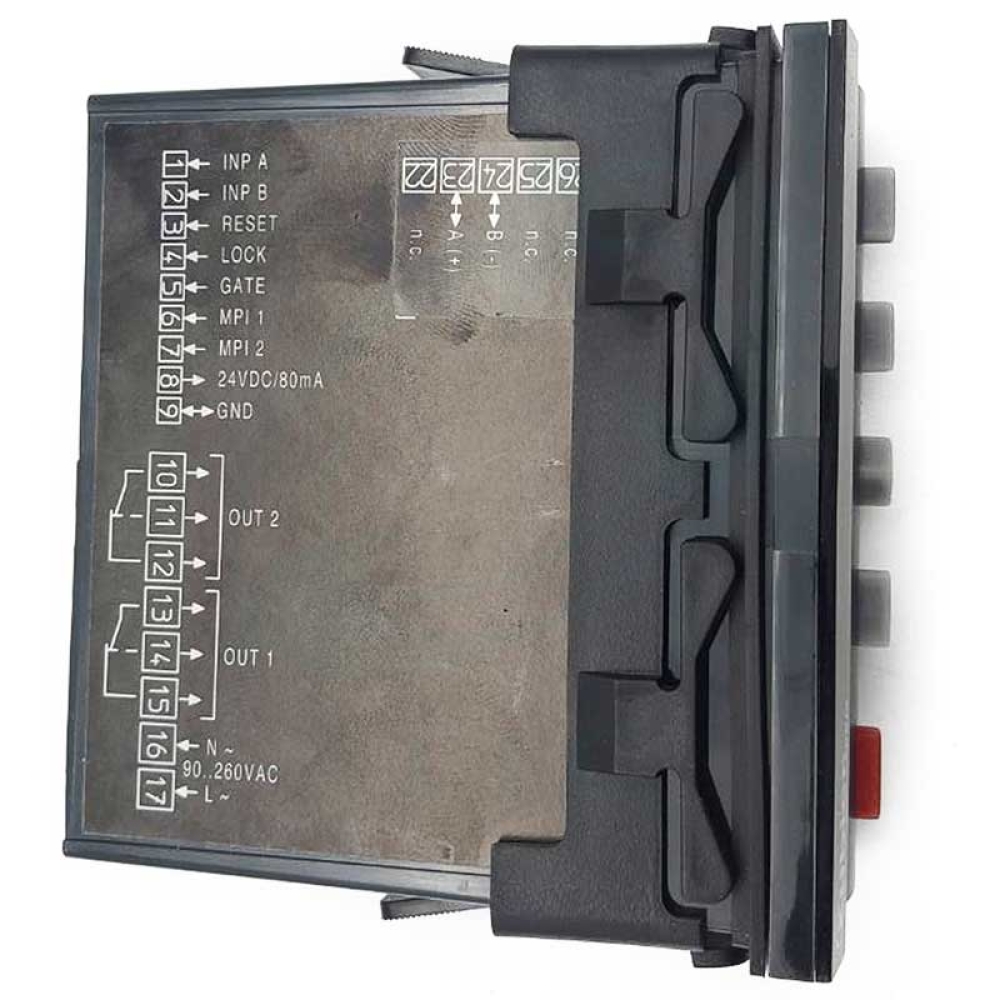

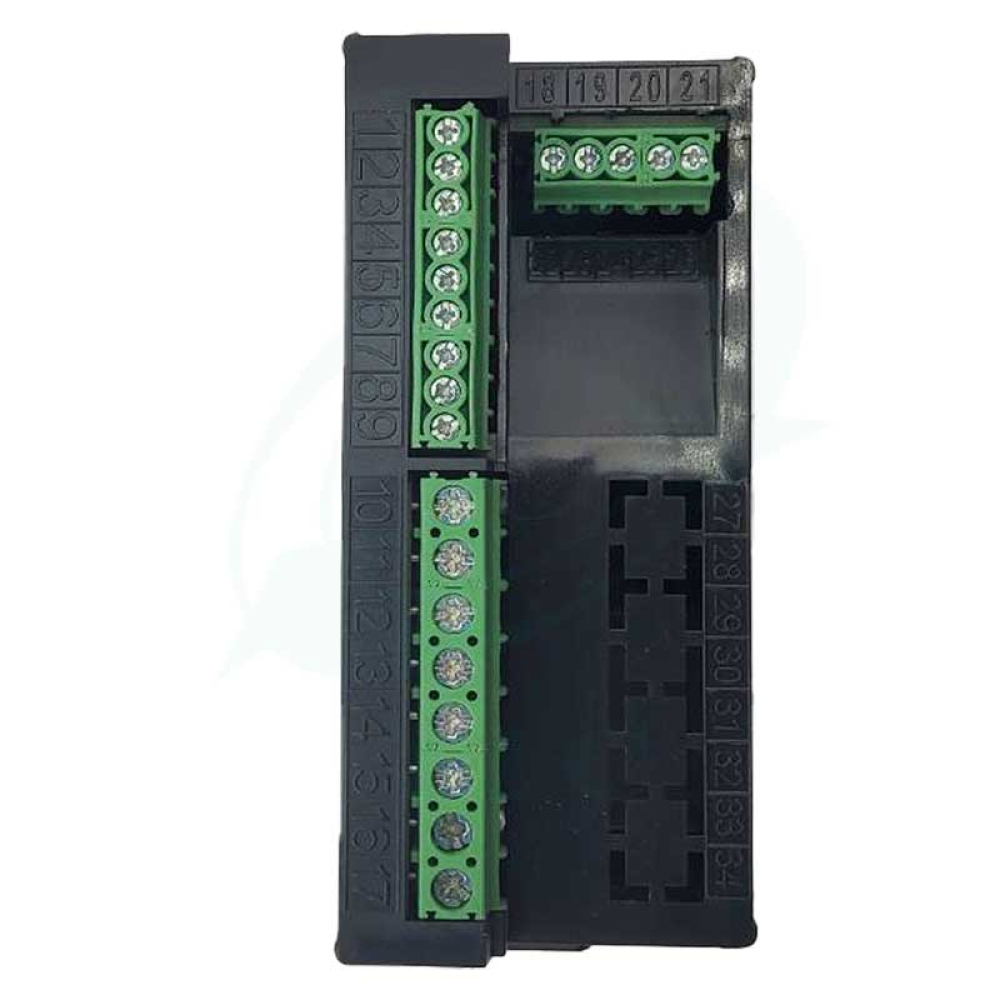

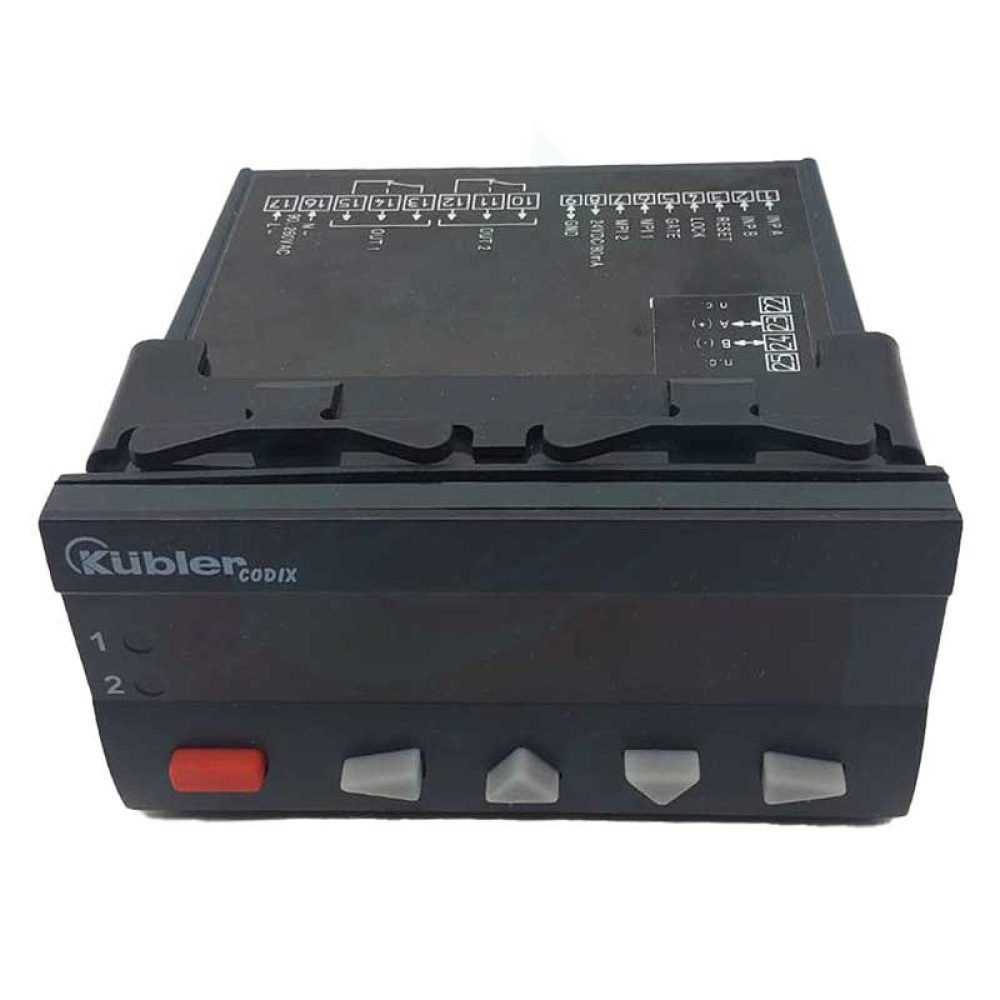

Digital Counter
Brand : Kubler
|
Model : 6-560 Series |
Type : Counter/Timer/Time switch Properties
body size
96 x 48 mm.
input
PNP/NPN
operating temperature range
-10 °C to 50 °C
power supply
10-30 VDC , 100-240 VAC
IP
IP65
details
- 96 x 48 mm.
- 6-digit red 14 segment LED display
- Counter, tachometer, timer and position display in one device.
- Can be used as preset counter, batch counter or total counter.
- 2 relays.
- Scalable display.
- Readable or configurable via RS232/485 interface via MODBUS or CR/LF protocol.
- Supply 10-30 VDC , 100-240 VAC
- Operating temperature -20 – 65 oC
- IP65
- 6-digit red 14 segment LED display
- Counter, tachometer, timer and position display in one device.
- Can be used as preset counter, batch counter or total counter.
- 2 relays.
- Scalable display.
- Readable or configurable via RS232/485 interface via MODBUS or CR/LF protocol.
- Supply 10-30 VDC , 100-240 VAC
- Operating temperature -20 – 65 oC
- IP65
Data Sheet
