-10°c to +50°c

2 Output

3 A AC/DC

IP65

- Supply voltage: 10 ... 30 V DC, max. 1,1 W
- with reverse polarity protection.90 ... 260 V AC max. 4 VA
- Display: 2 line LCD display, 6-digits
- Count inputs: 2 count inputs, 4 input modes are programmable
- Polarity of the inputs: programmable for all inputs in common
- Input resistance: approx. 10 kΩ
- Count frequency: via DIL switches for INP A and INP B
- can be set separately 30 kHz10 kHz for input modes E3 and E4 (quadrature)
- for automatic repeat - 900 Hz without losing counts (500 Hz for input mode E4)
- Min. pulse duration 5 ms
- AC supply voltages:Low 0 ... 4 V DC High 12 ... 30 V DC
- Pulse shape: variable (Schmitt-Trigger characteristics)
- Output 1 Relay: with potential free contact, programmable as normally opened or normally closed.
switching voltage max. 250 V AC/125 V DC,
switching current max. 3 A.
switching current at DC min. 30 mA
switching power at DC 90 W at AC max. 750 VA

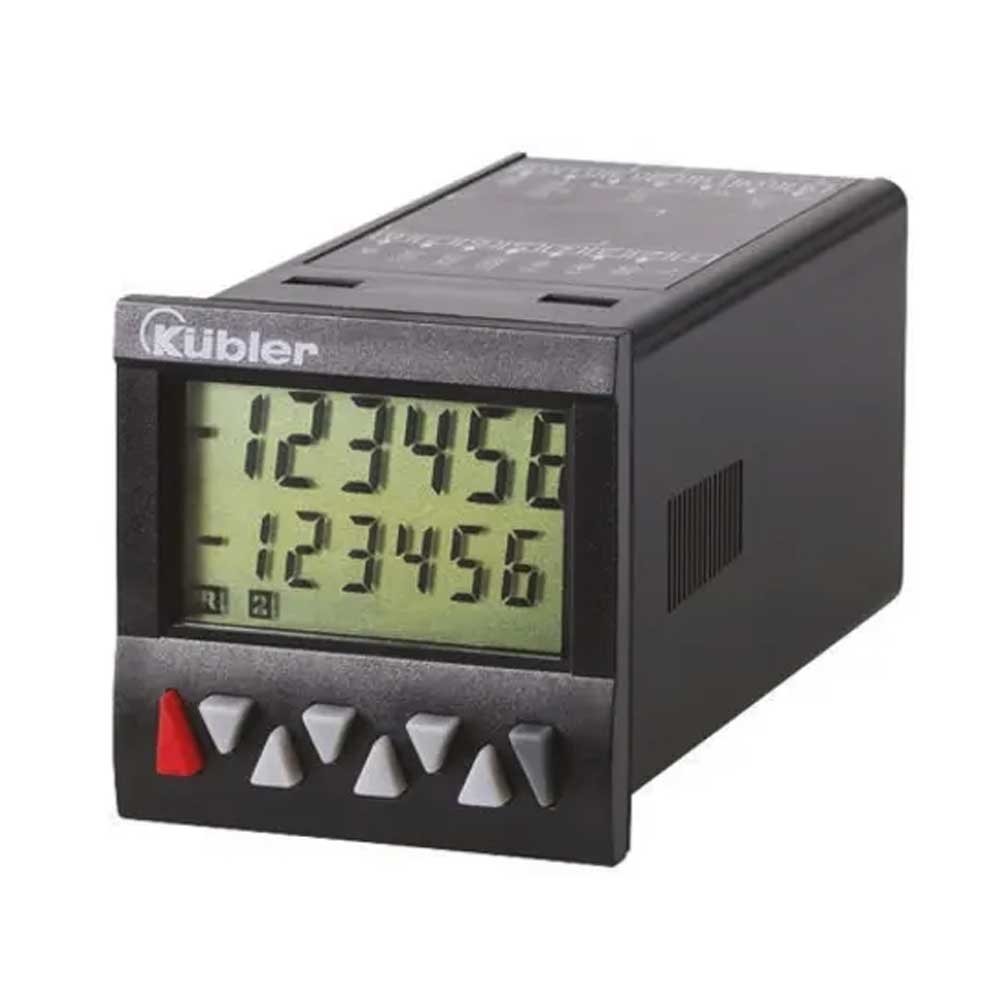

- 2 line LCD display
- Programmable as impulse counter,frequency meter or time meter with sign
and zero blanking
- Power supply 90 ... 260 V AC or 10 ... 30 V DC
- Display range -199 999 ... 999 999 with zero blanking
- Easy to operate and set the preset values via 4 keys
- Relay or optocoupler-output
- Scaling factor 0.0001 ... 9.9999
- Protection: IP 65
