PLC/SCADA/Touch screen/Servo Motor

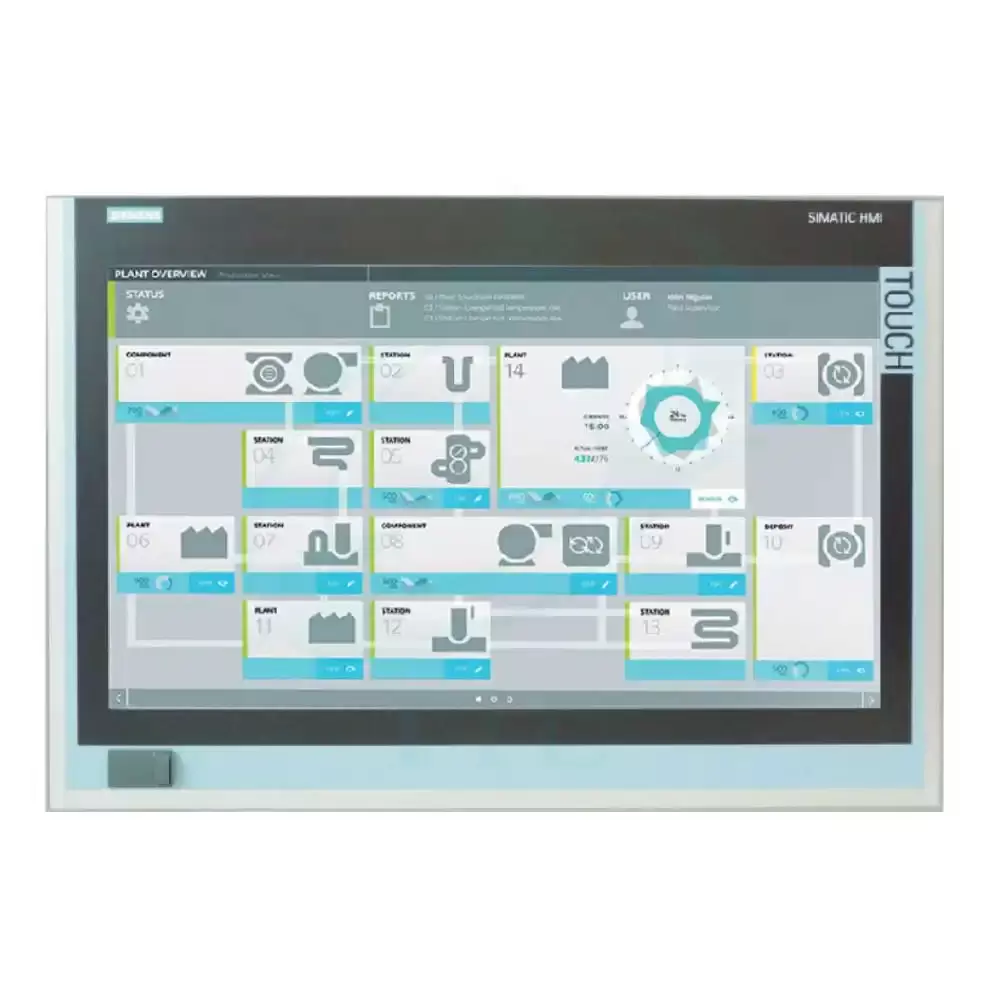

Brand : SIEMENS
|
Model : 6AV7241-3DB34-0JA0 |
Type : Touch Screen Properties
Conectivity
Connection ports : 2x RS232/RS485 ; w/o PCle
screen size
19” (1366x768 pixel)
body size
464x318x76mm
operating temperature range
0 to 45°C
power supply
24VDC
IP
IP65 (at the front)
IP20 (rear)
IP20 (rear)
details
- Touch screen model IPC447E - 1 front USB port, 4 rear ports, Ethernet (10/100/1000) - External memory : 8GB
CPU processor
Processor: Core i3-6102E; 3x Gigabit Ethernet (IE/PN)
Software
Operating System : Windows7 Ultimate
Data Sheet
