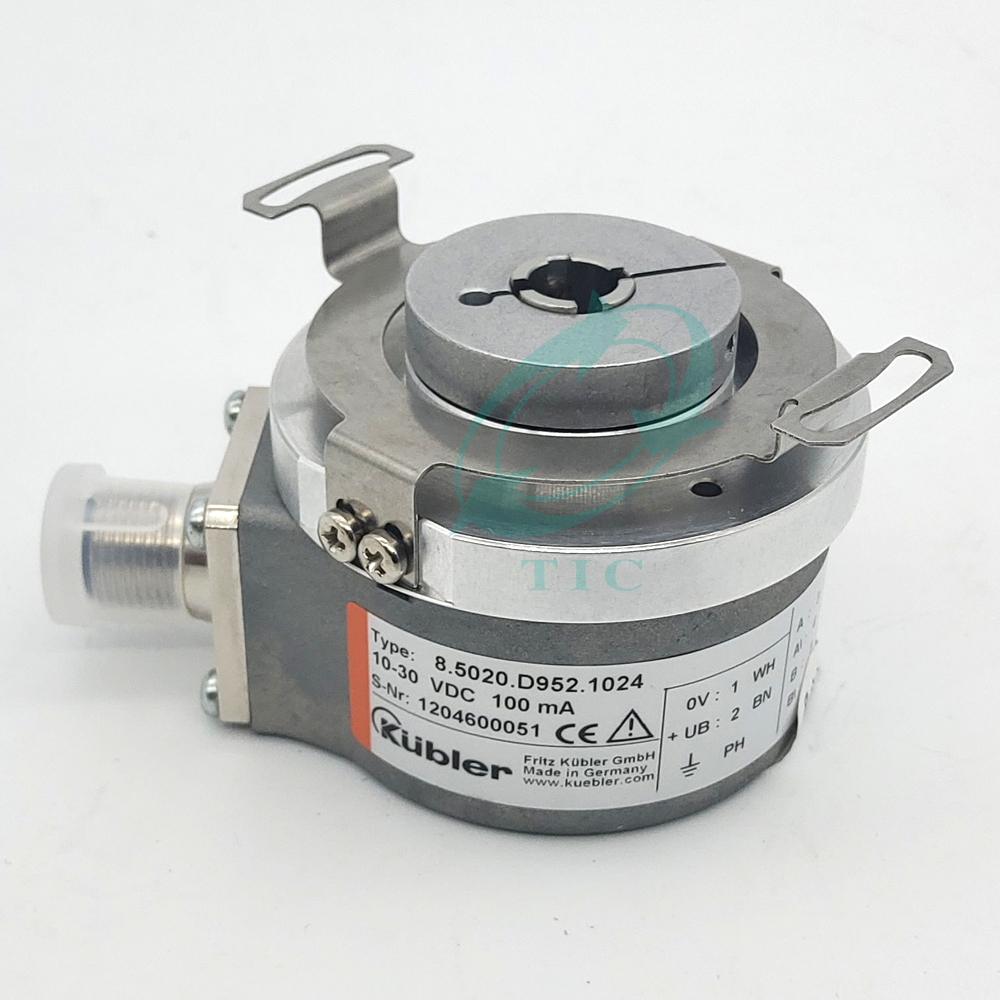

Encoder
Brand : Kubler
|
Model : 8-5020 (แบบแกนกลวง) |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
body size
Suitable for harsh applications (50 mm).
operating temperature range
-40 °C ... +85 °C
Housing Material
stainless steel
power supply
RS422 5 - 30 VDC or Push - pull 10 - 30 VDC, Push - pull 5 - 30 VDC (choose to order)
Core size/Hollow hole/Shaft hole
Hollow shaft Ø6, Ø1/4 inch, Ø10, Ø3/8 inch, Ø12 mm. Ø1/2 inch, Ø5/8 inch, Ø15, Ø8 mm, Ø14 mm.
output
Push-pull Transistor or Line-driver (D)
Number of pulses/cycle
1, 5, 10, 12, 36, 50, 60, 100, 200, 250, 256, 360,400, 500, 512,600, 800, 1000, 1024, 1200, 2000,2048, 2500, 3600 (Other pulse rates on request)
Wiring Diagram
Line out and M23 ,M12 (choose to order)
IP
IP67
Design By
European quality standards from Germany
Data Sheet
