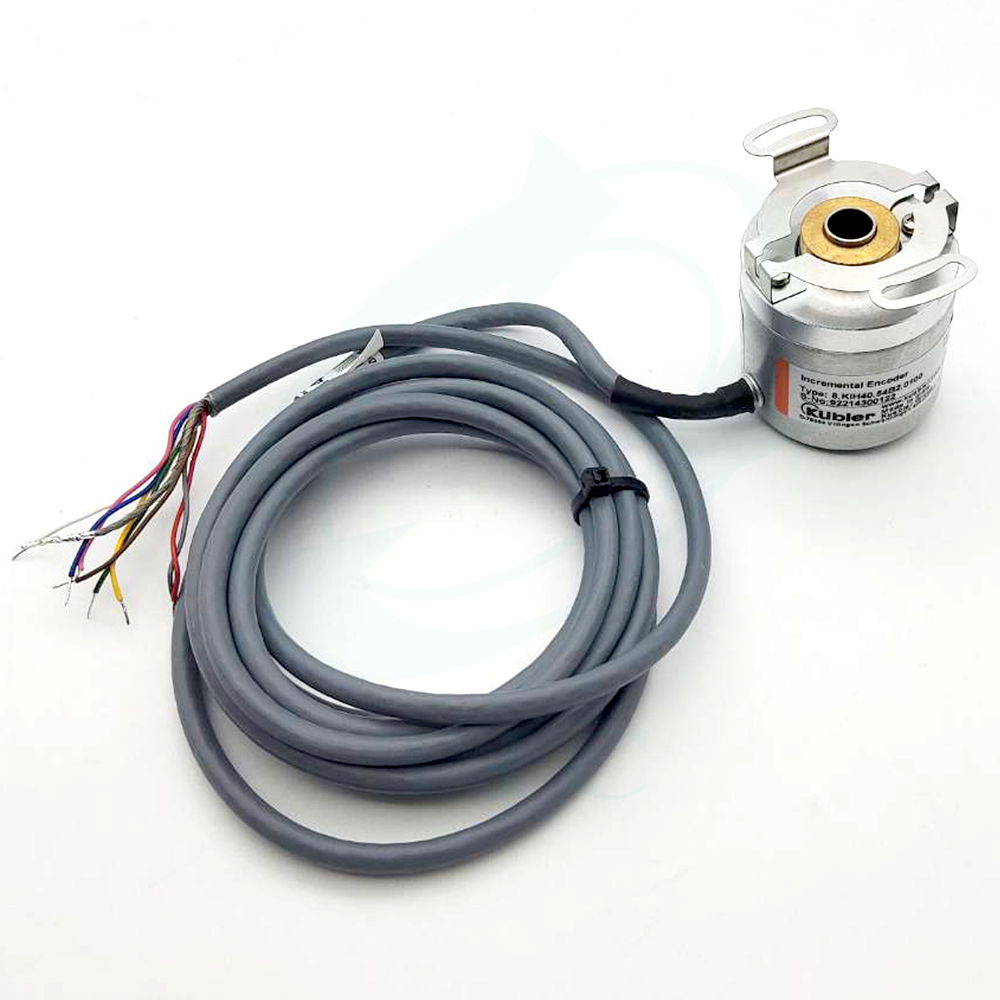

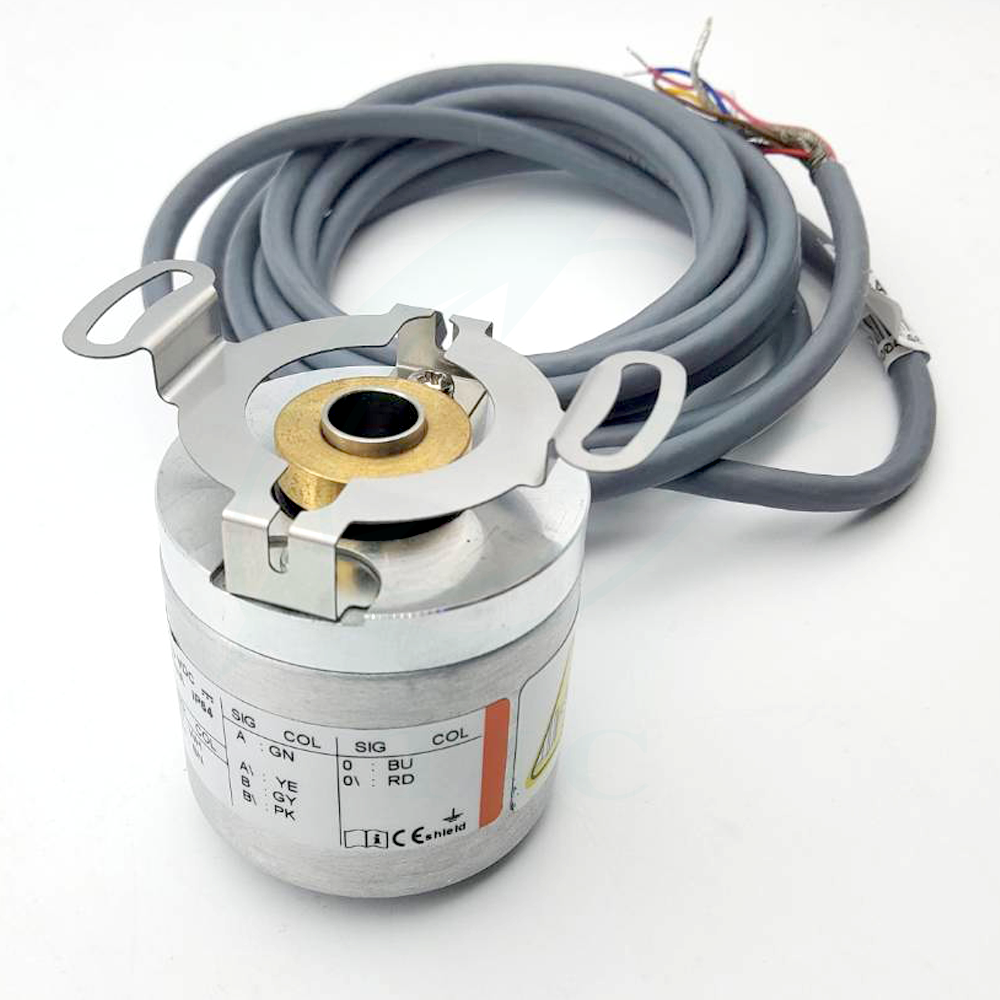

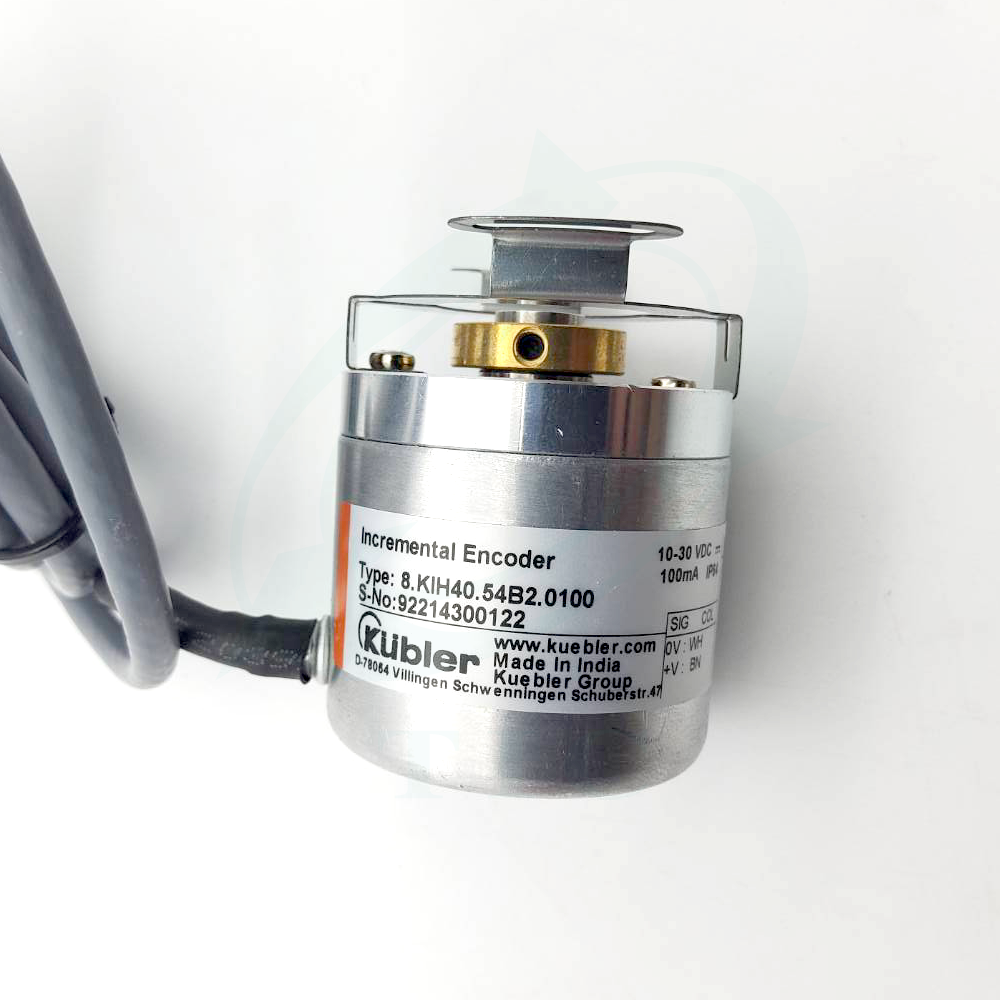

Encoder
Brand : Kubler
|

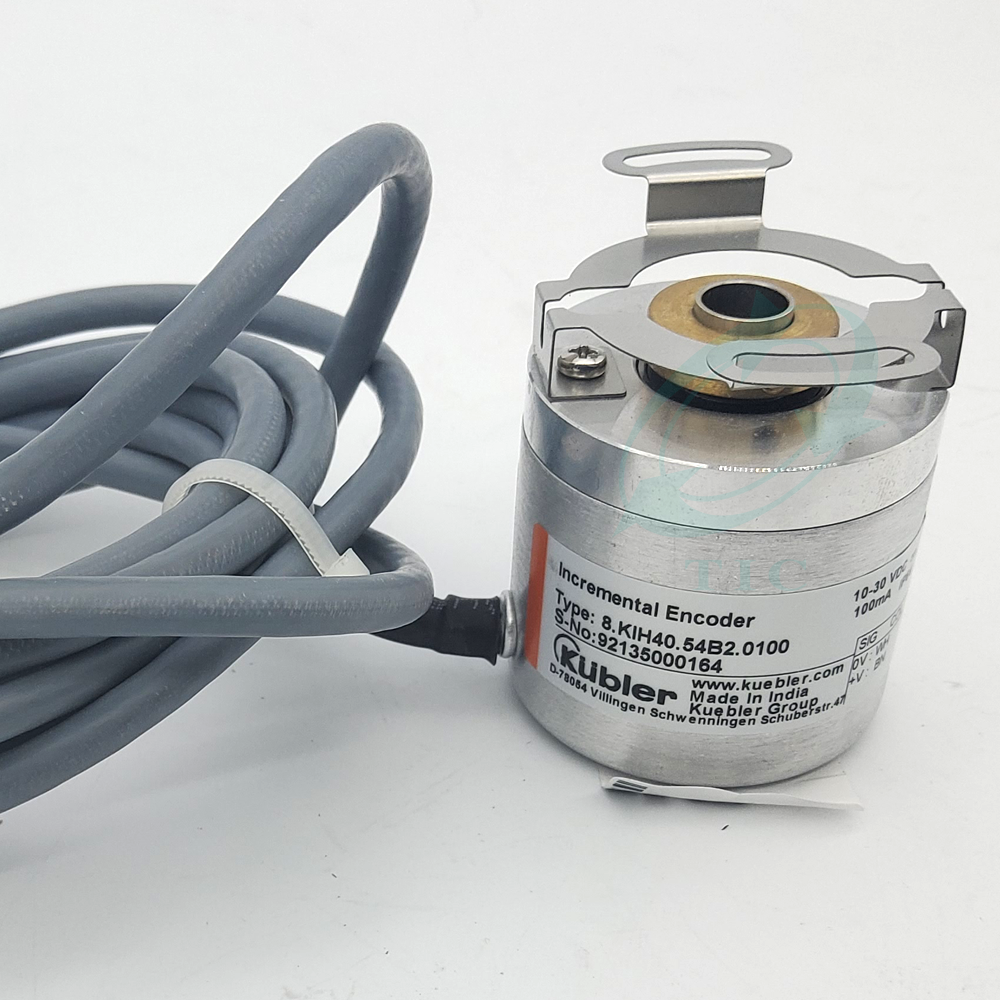

Model : 8-KIH40 Series (แบบแกนกลวง) |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
body size
Diameter. 40mm and 46mm
operating temperature range
-20 °C ... +70 °C
Housing Material
aluminium
power supply
RS422 5 Vdc/Push-Pull 10-30 Vdc/open collector 10-30 Vdc
Core size/Hollow hole/Shaft hole

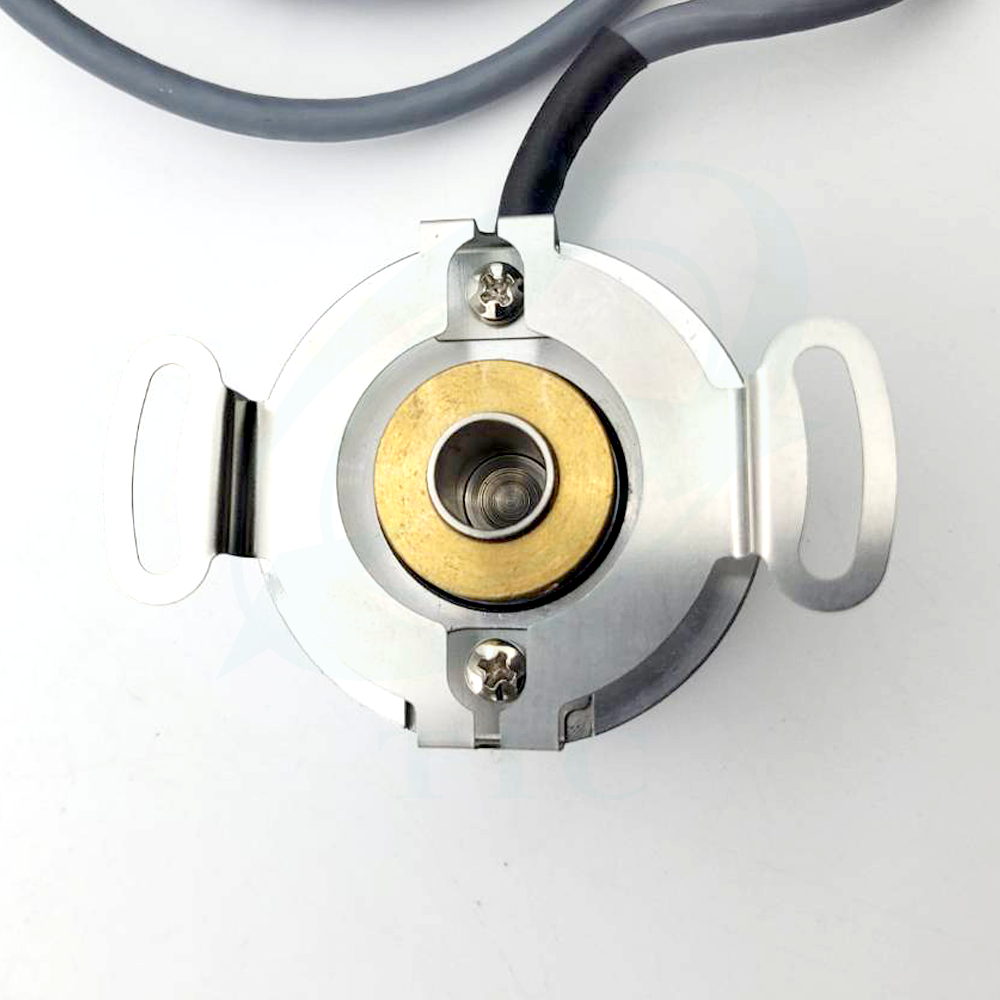

Hollow shaft 8 mm.10 mm.1/4"
output
RS422/Push-Pull/open collector
Number of pulses/cycle
25, 100, 200, 360, 500, 512, 600, 1000, 1024,2000, 2048, 2500
Wiring Diagram
Cable
IP
IP64
Design By
European quality standards from Germany
details
- Very good resistance to electromagnetic field interference.
- Reverse polarity protection and short circuit protection
- Reverse polarity protection and short circuit protection
Data Sheet
