All model 4 size1. AG44: W96 x H96 x D1002. AG33: W72 x H72 x D1003. AG42: W48 x H96 x D1004. AG24: W96 x H48 x D100

Universal input: Thermocouple: (K, J, E, T, R, S, B) RTD: Pt100 and (DC1~5V, DC4-20mA) (Linear)

LED 7 Segment

PID Conttrol or ON-OFF Control

Main control output: Relay contract, pulse 12VDC, current 4-20mA

100~240 VAC

-

- PID control with auto tuning function or ON-OFF operation- Measuring unit: °C or °F
- Option: Alarm output, analog retransmission, analog input for remote set point function, event input for changing set point

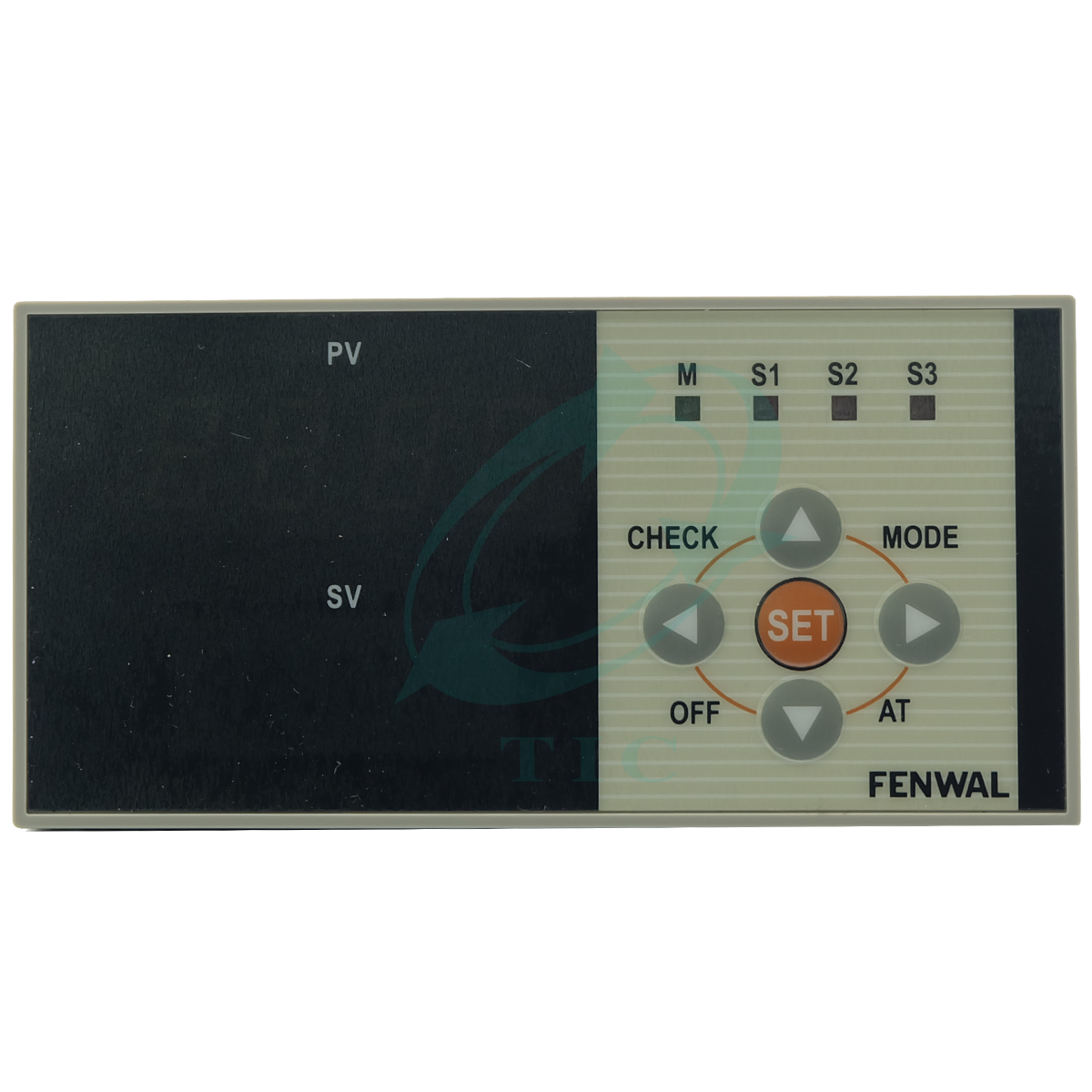

- Display: PV and SV
- 3 Alarm output maximum
- Power supply: 100-240 VAC 50/60Hz
- Heater break alarm function (CT input)
