-15°C to +65°C

1 Output

300A

IP20

Specification:

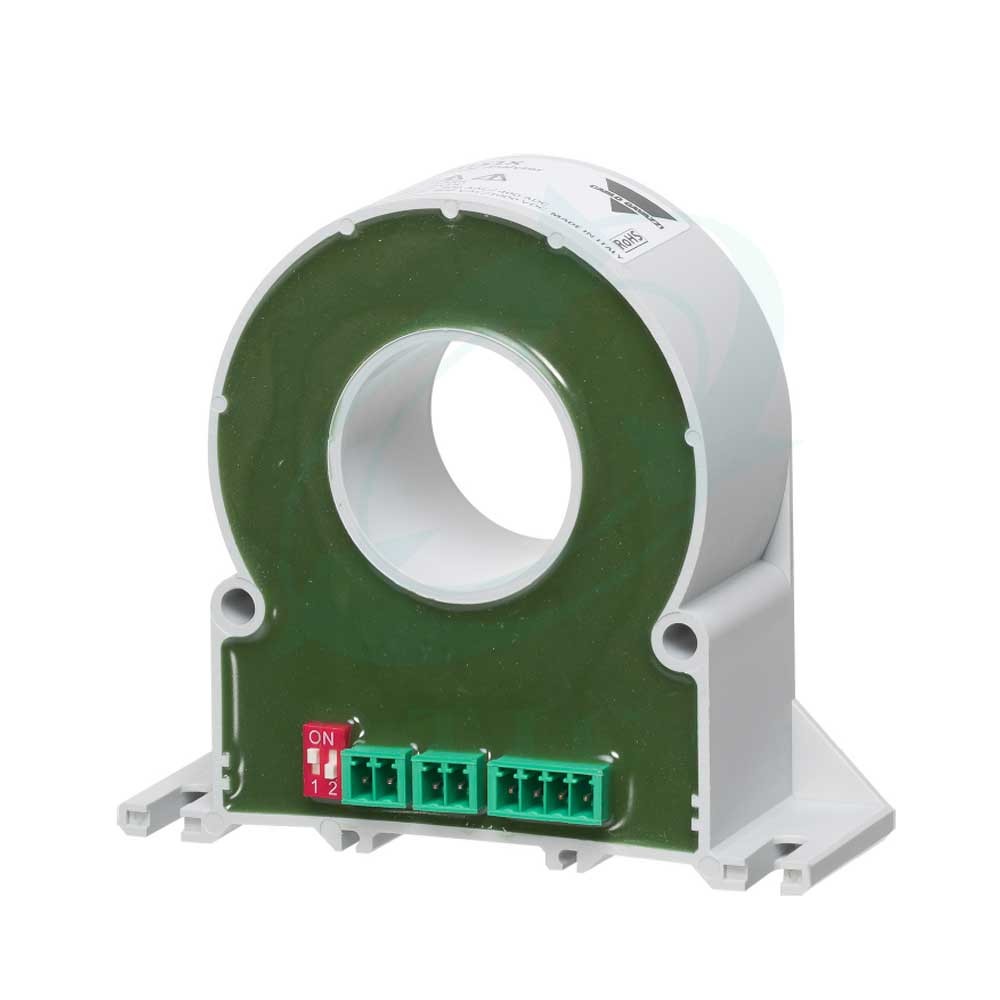

-True RMS AC and DC monitoring for SCADA electrical System.
- 1 Phase Range: current input 300 AAC/ADC
-Current sensing by Hall effect;
-Voltage range: 800 Vac/1000 Vdc
-RS485 Modbus output; variables: A, V, W, var, VA, kW, HZ, PF, THD,kWh.
-Up to the 40th harmonic
-Compatible with VMU-C EM
-Dimension : 15 mm hole diameter
-Protocol : Modbus RTU (RS485) , Address : 1-247
-Working temperature From -15 to +65 °C
-Protection degree (front): IP20
-Weight : 80g
-Power Supply : 9-30 Vdc
-Over voltage category Up to 600 V Cat. III , Up to 1000 V Cat. II
