Power Analyzer/Renewable Energy
Brand : Carlo Gavazzi
|

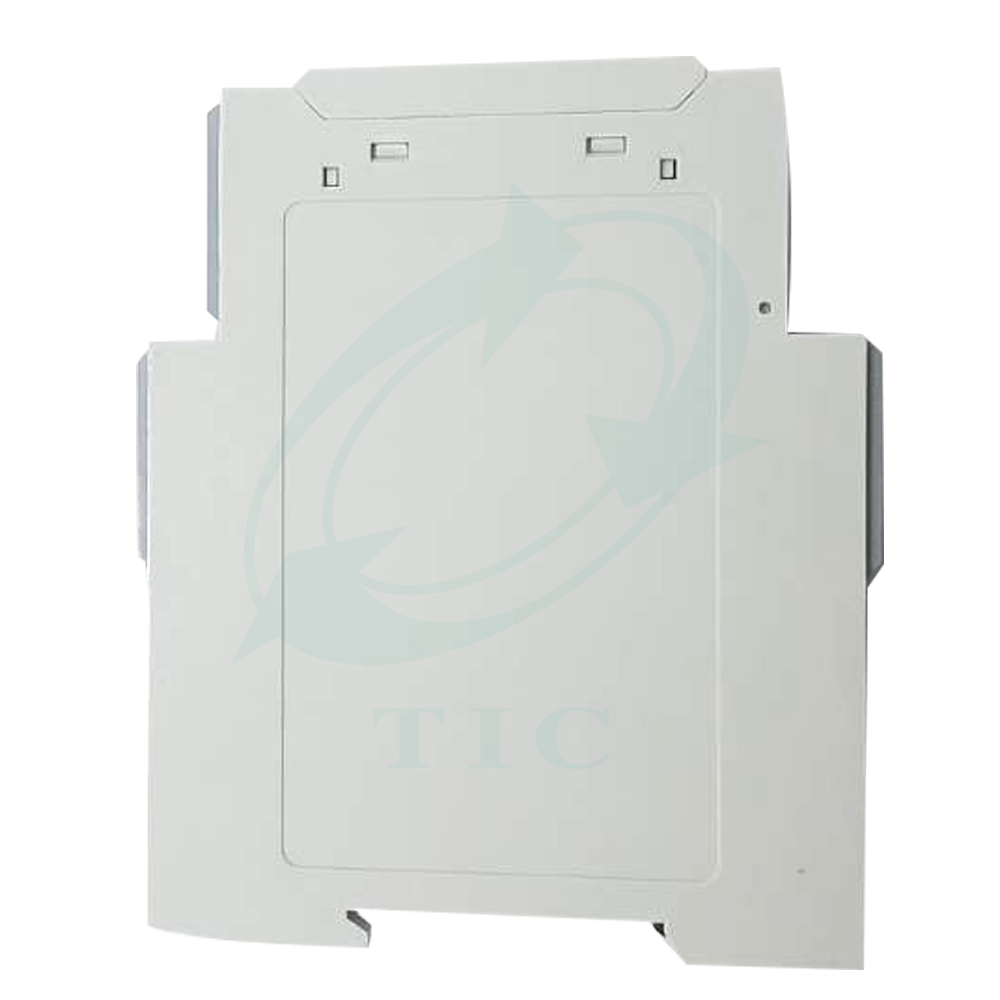

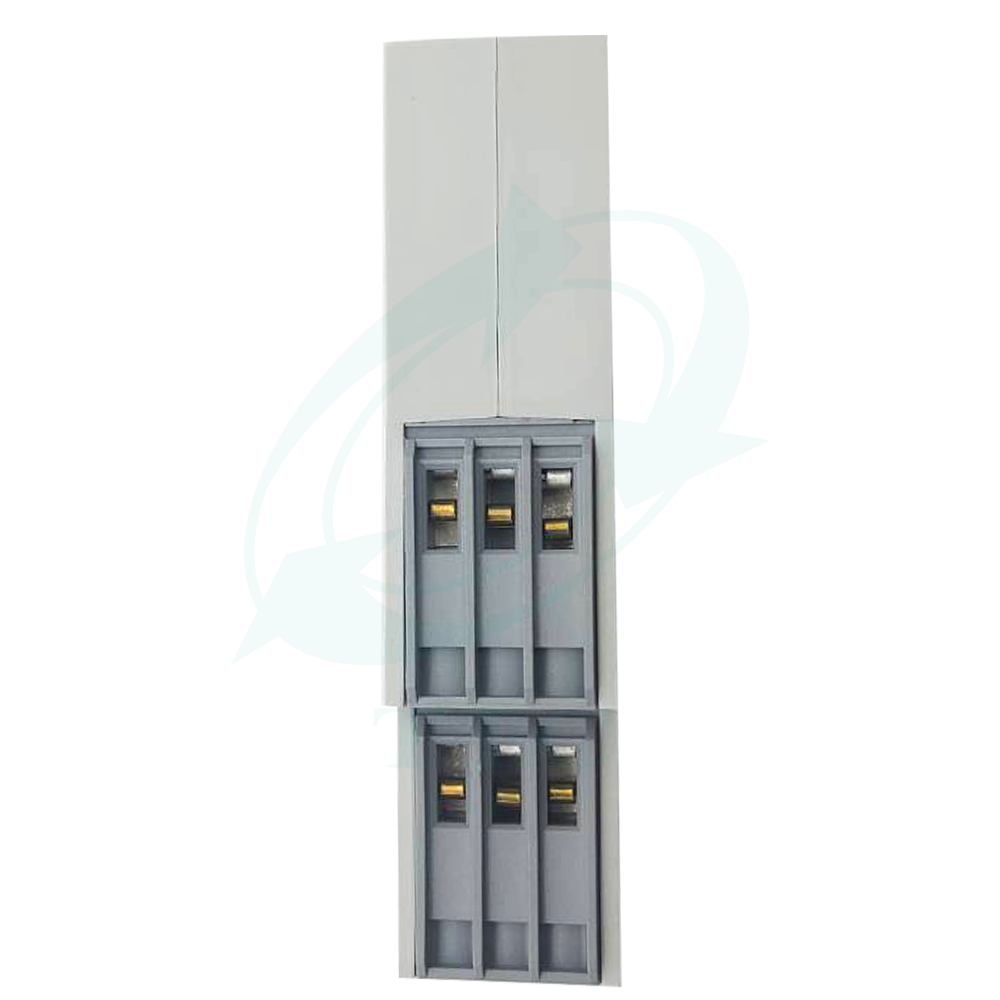

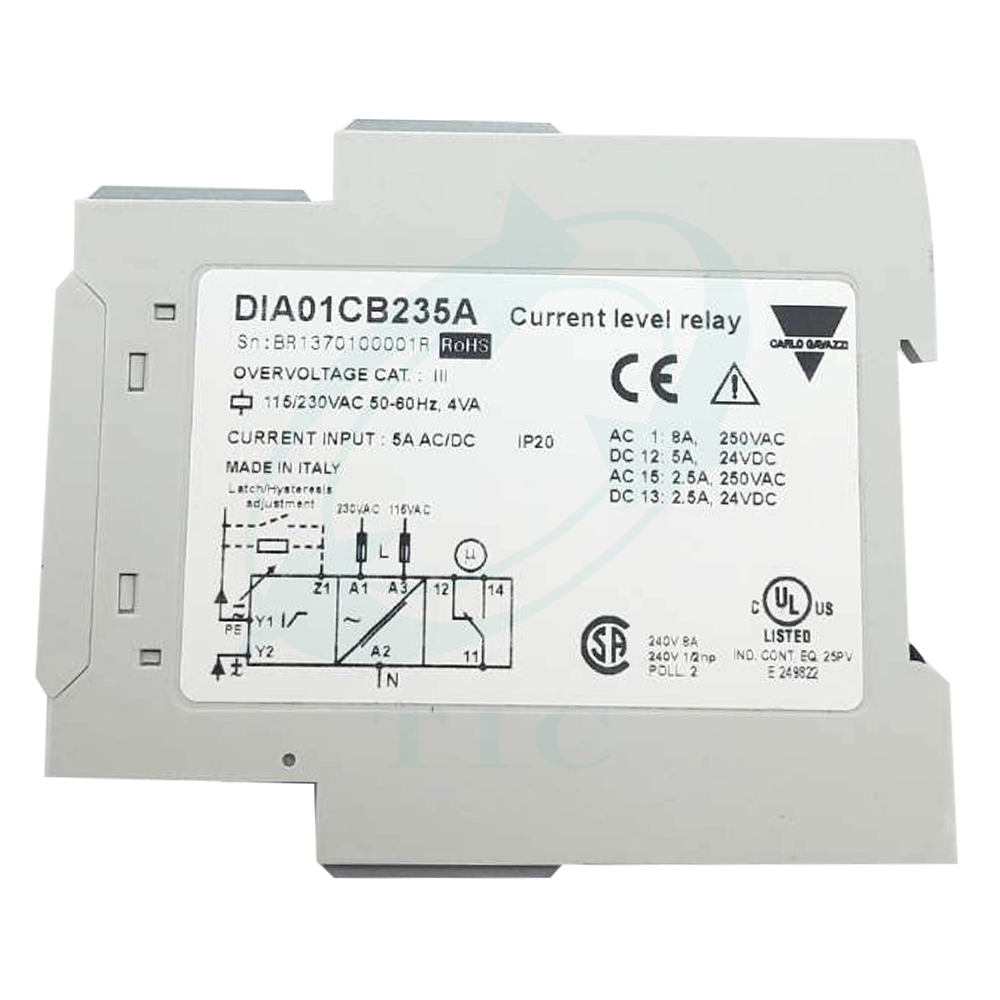

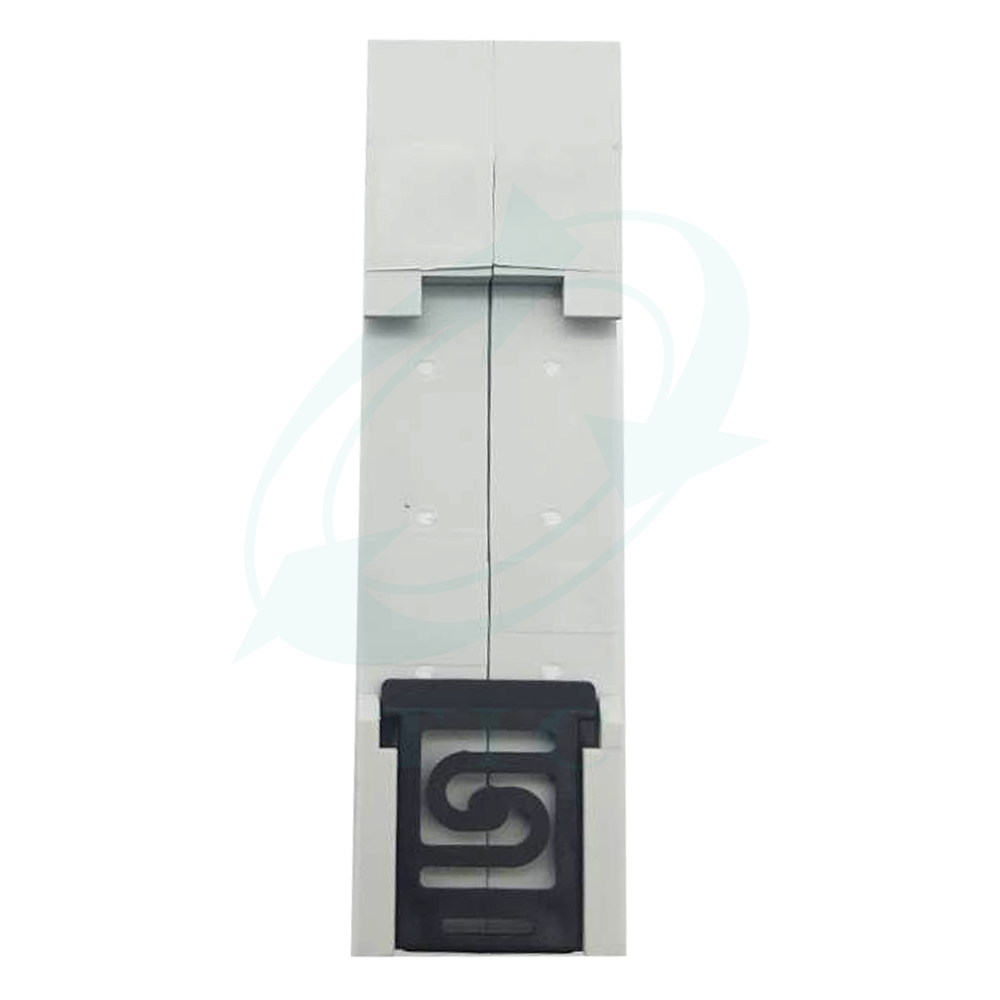

Model : DIA01/PIA01 Series |
Type : Current monitoring relays and Phase loss / Phase Sequence Properties
Conectivity
-
screen size
-
installation
DIN-rail (DIA01),Plug-in (PIA01)
body size
22.5 x 80 x 99.5 mm.
Accuracy
-
operating temperature range
-20°C to 60°C
Weight
Weight 150 g
power supply
115 or 230 VAC
output
Relay output SPDT 8 A 250 VAC
Measuring range
- Receive current from CT/5 A directly
- Control range 0.5 to 5 AAC
- Control range 0.5 to 5 AAC
measure current
-
pressure gauge
-
temperature/humidity
-
IP
IP20
details
- There is an LED to show the working condition of the output.

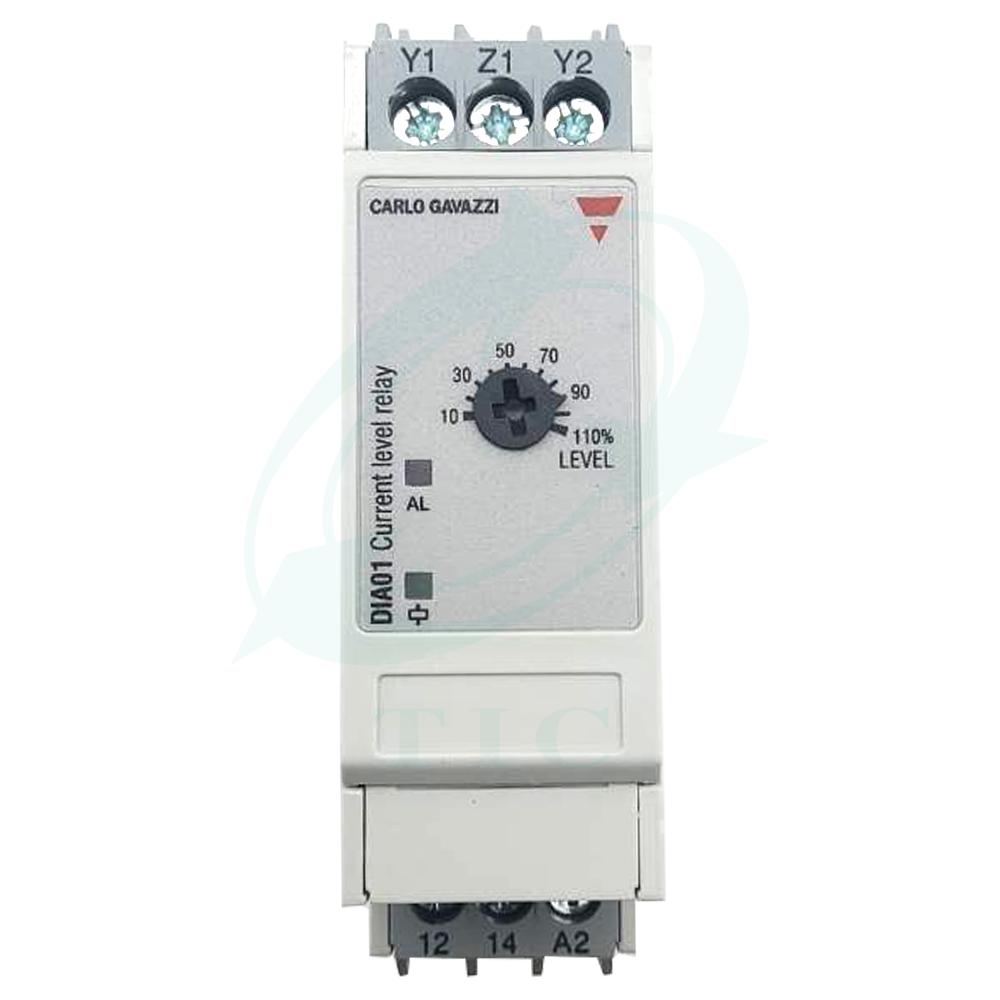

- To adjust the value, turn the knob on the front of the machine. Set the percentage to 10-10
- To adjust the value, turn the knob on the front of the machine. Set the percentage to 10-10
Data Sheet
