Power Analyzer/Renewable Energy
Brand : Carlo Gavazzi
|

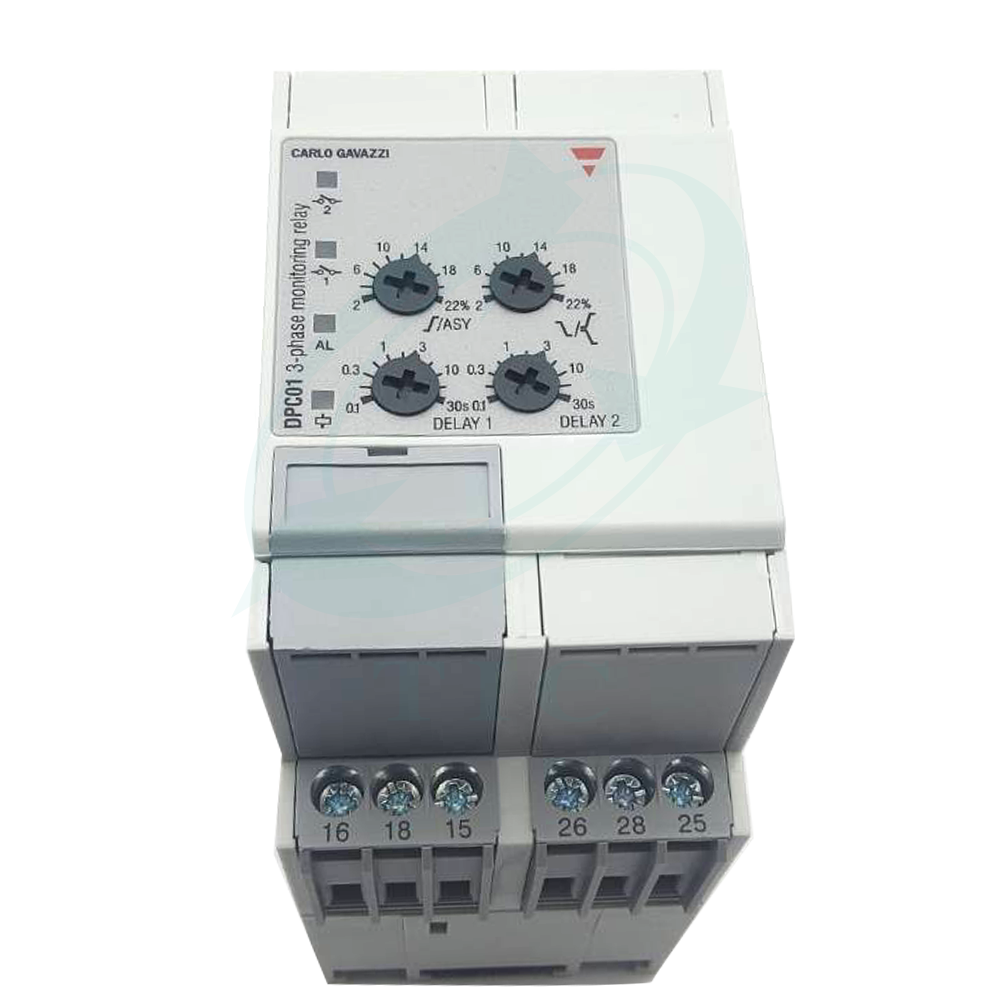

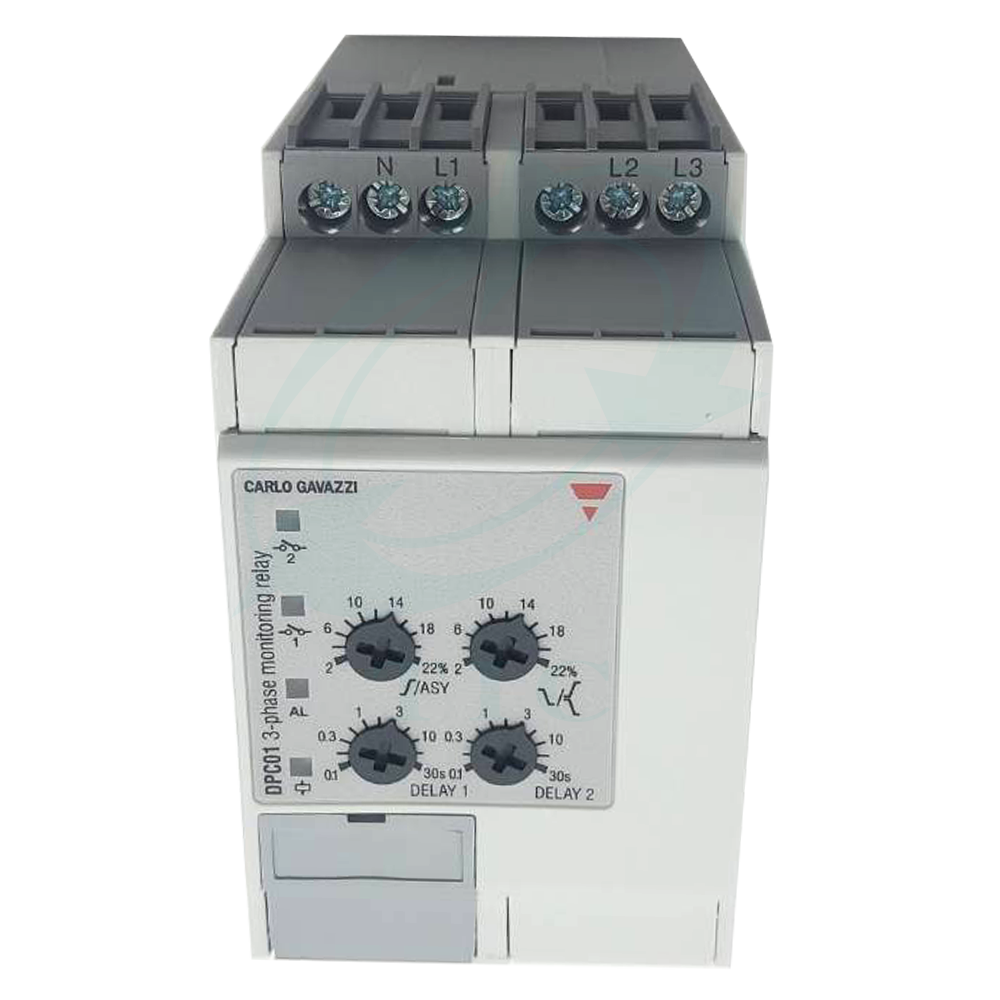

Model : DPC01/PPC01 Series |
Type : Over or Under Frequency monitoring relays Properties
Conectivity
-
screen size
-
installation
DIN-rail (DPC01),Plug-in (PPC01)
body size
-
Accuracy
-
operating temperature range
-20°C to 60°C
Weight
220 g.
power supply
208 to 480 VAC
output
2 sets of SDPT relay outputs, size 8A 250 VAC
Measuring range
2 levels of voltage protection, both high and low, Multifunction type
- Set voltage level or asymmetric voltage value
- Prevents wrong phase sequence, lost phase
- Choose protection between phase-phase or phase-neutral.
- Set voltage level or asymmetric voltage value
- Prevents wrong phase sequence, lost phase
- Choose protection between phase-phase or phase-neutral.
measure current
-
pressure gauge
-
temperature/humidity
-
IP
IP20
details
There is a timer delay
Data Sheet
