output, withstand current 10 (6) A

230 V AC/50 Hz

-

IP 40

-

Wall installation

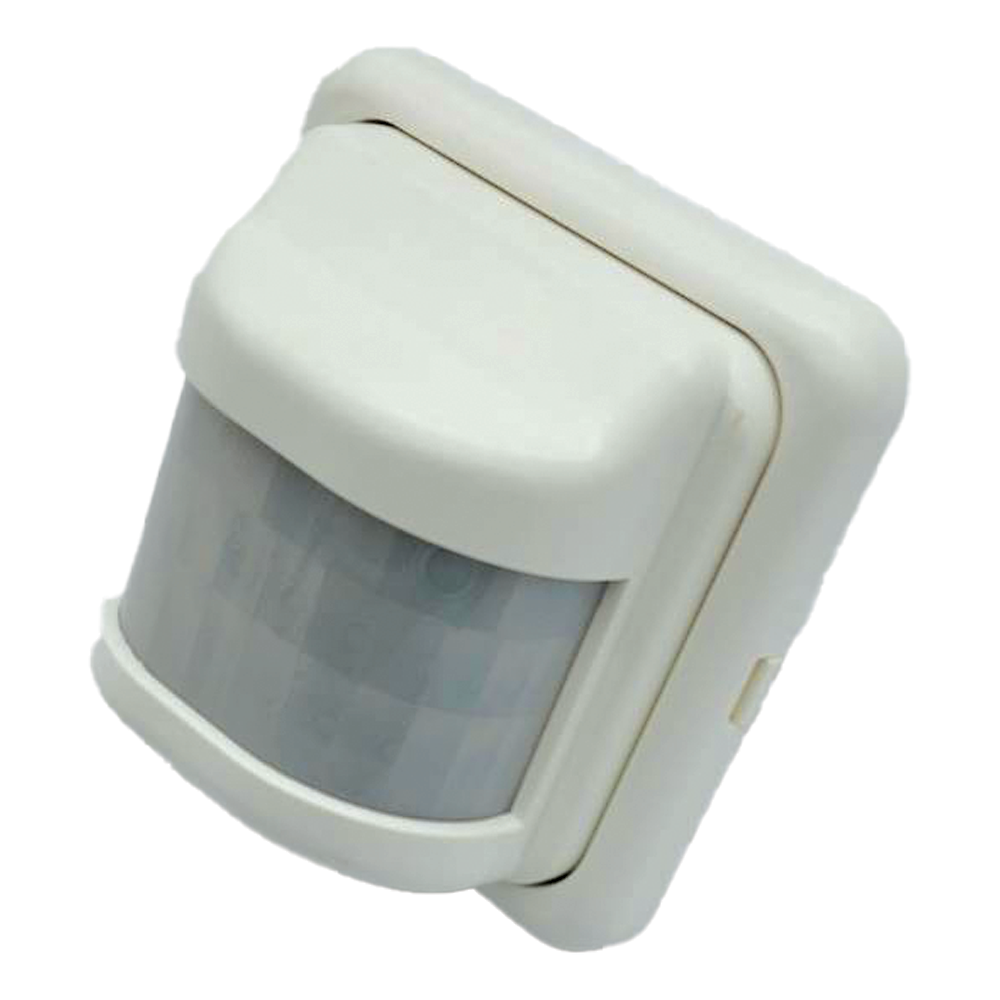

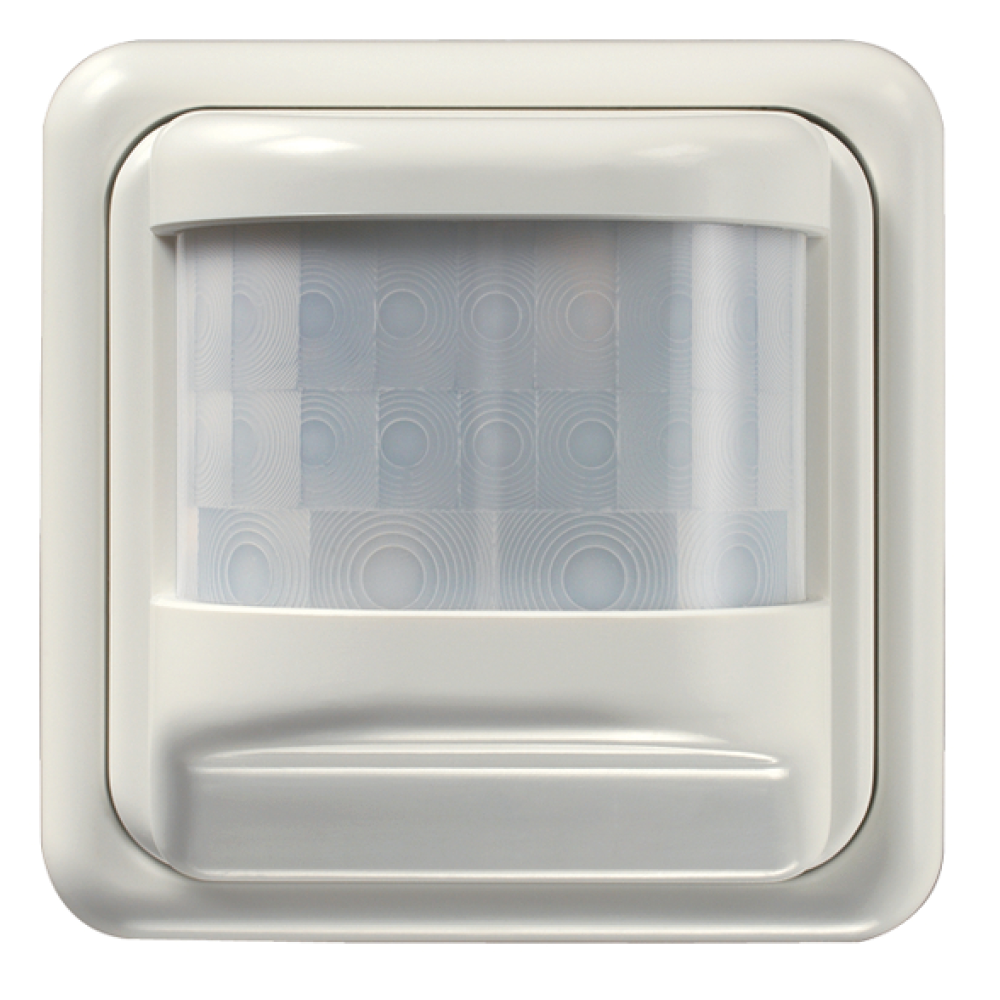

- Presence detector (PIR)
- Detection area 180°
- Installation type : Wall installation
- Light switch output (relay, 230 V) / Presence switch output (relay, potential-free)
- Automatic control of lighting and HVAC
- The switching behaviour of the presence detector is controlled by presence and light
- The presence detector detects moving bodies in a radius of approx. 8 m. Seated persons can
- be reliably detected in an area of 8 m x 4 m. The recommended installation height is 2.2 m
- The parameters are set via the potentiometer
- Operating voltage 230 V AC/50 Hz
- Recommended installation height 1,6 – 2,2 m
- Setting range brightness 50 – 1600 lx
- Light switch-off delay 2 min-15 min
- Presence switch-off delay 10-60 min
- Ambient temperature +0 °C … +50 °C
- Type of protection IP 40
