RS485 Depend on ordered

17x45 mm

Panel mount

17x 90 mm

Class 1

-25°C ถึง +55°C

80 g

AV8: 230VLN AC - 5(45)A (Direct connection)
AV7: 120VLN AC - 5(45)A (Direct connection)

pulse output
RS485 Modbus port
M-bus port

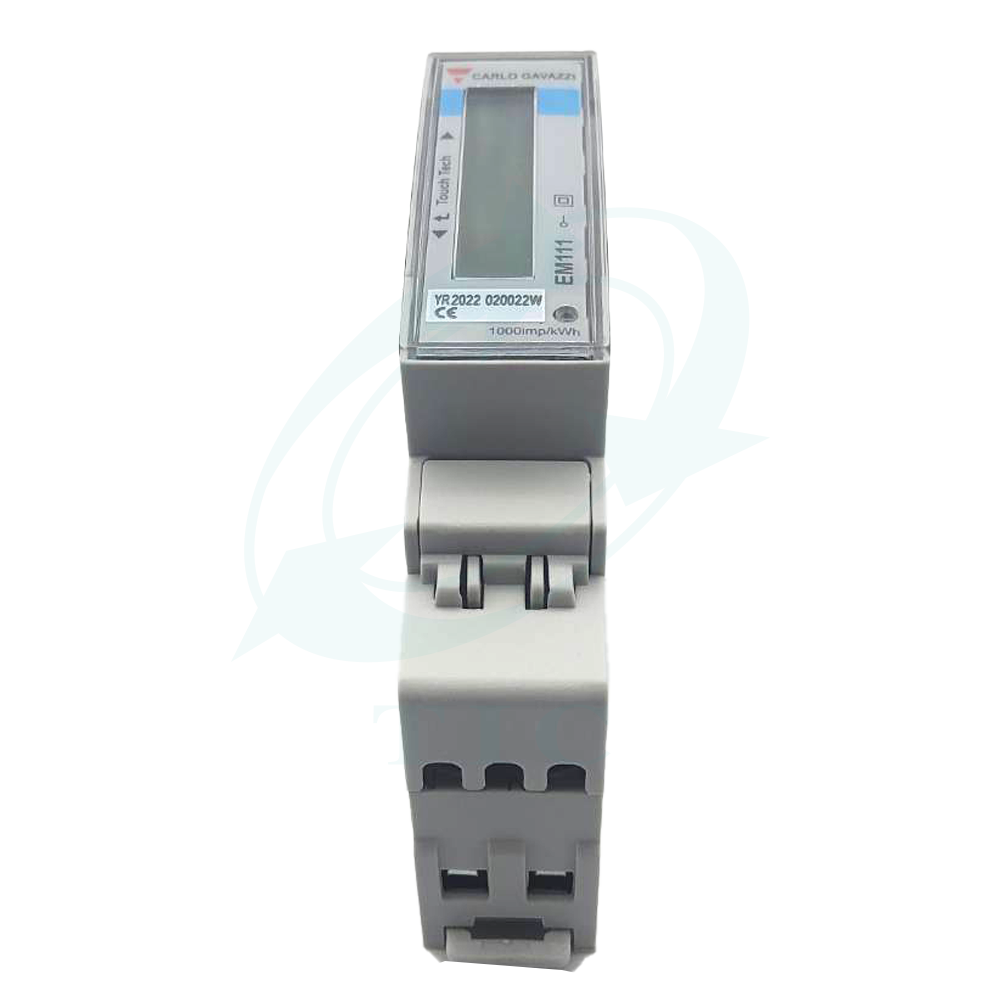

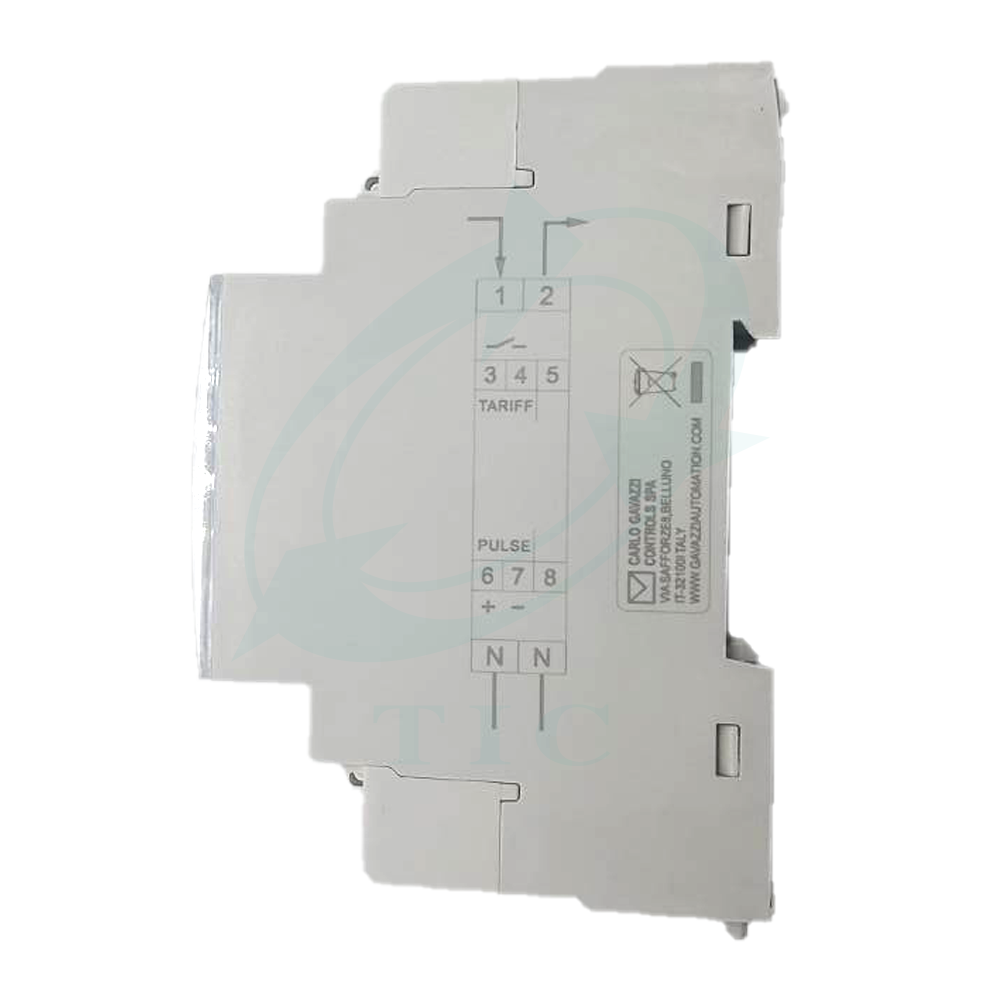

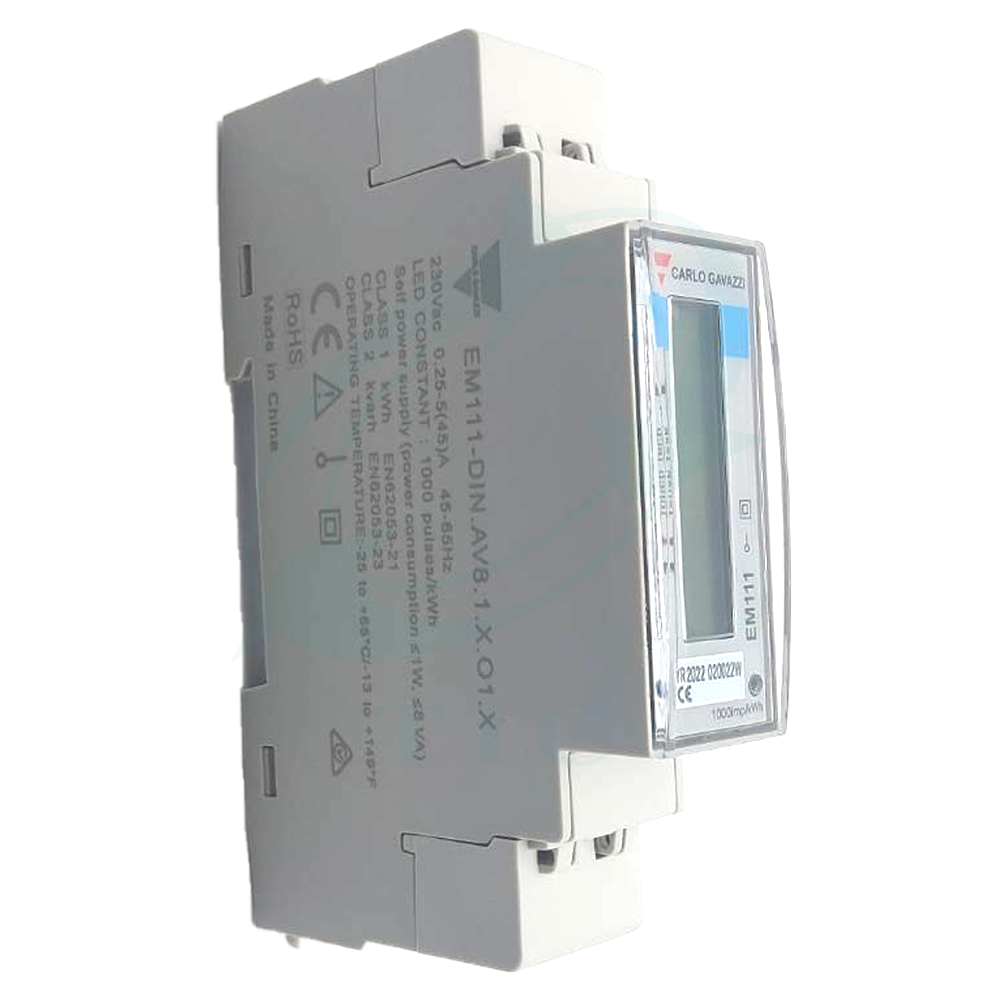

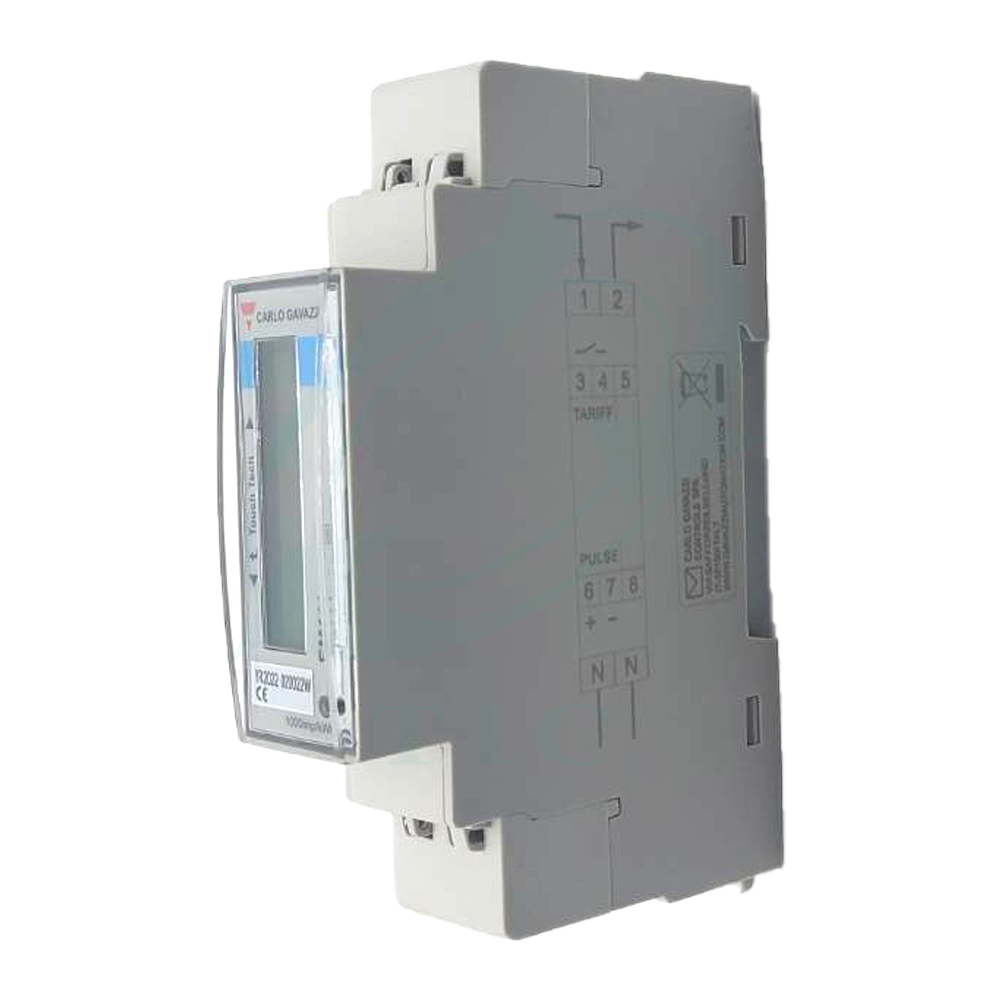

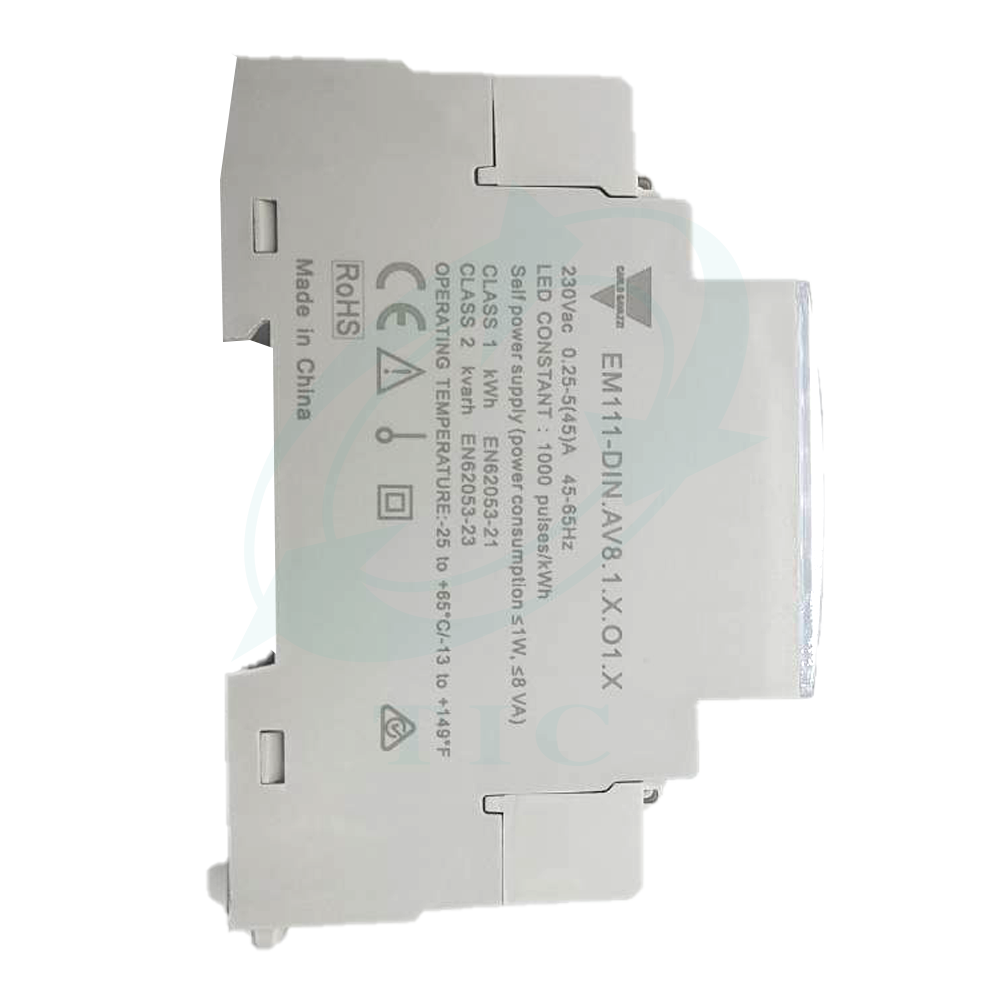

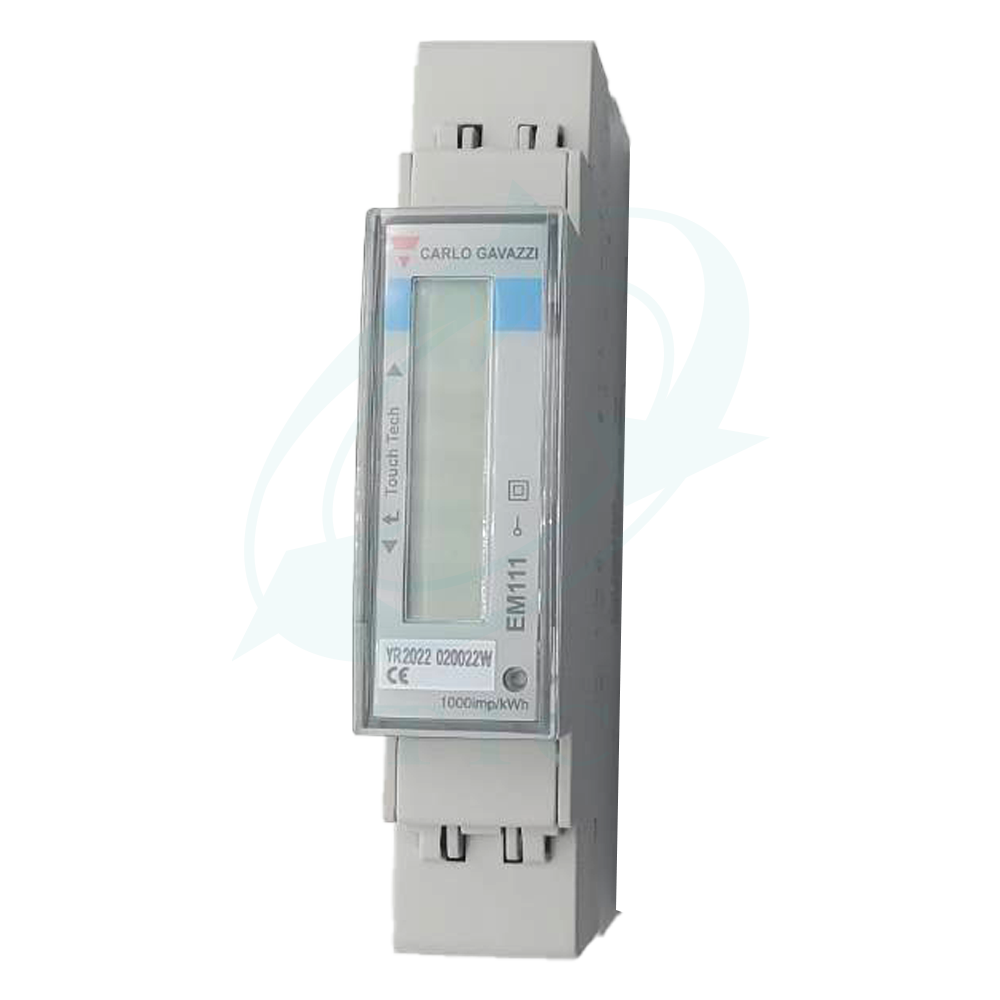

1-phase electric energy meter

Measures direct current up to 45AAC

AV4: 400/690VLL AC 1(2)A (**)
VLN: 160V to 480VLN VLL: 277V to 830VLL
AV5: 400/690VLL AC 5(6)A (*) VLN: 160V to 480VLN VLL: 277V to 830VLL
AV6: 100/208VLL AC 5(6)A (**) VLN: 40V to 144VLN VLL: 70V to 250VLL
AV7: 100/208VLL AC 1(2)A (**) VLN: 40V to 144VLN VLL: 70V to 250VLL

20 to +65 °C, indoor, (R.H. from 0 to 90%

IP51

Measurement in TRMS. Measure parameters are W, VA,PF , var, V , A, kWh.
