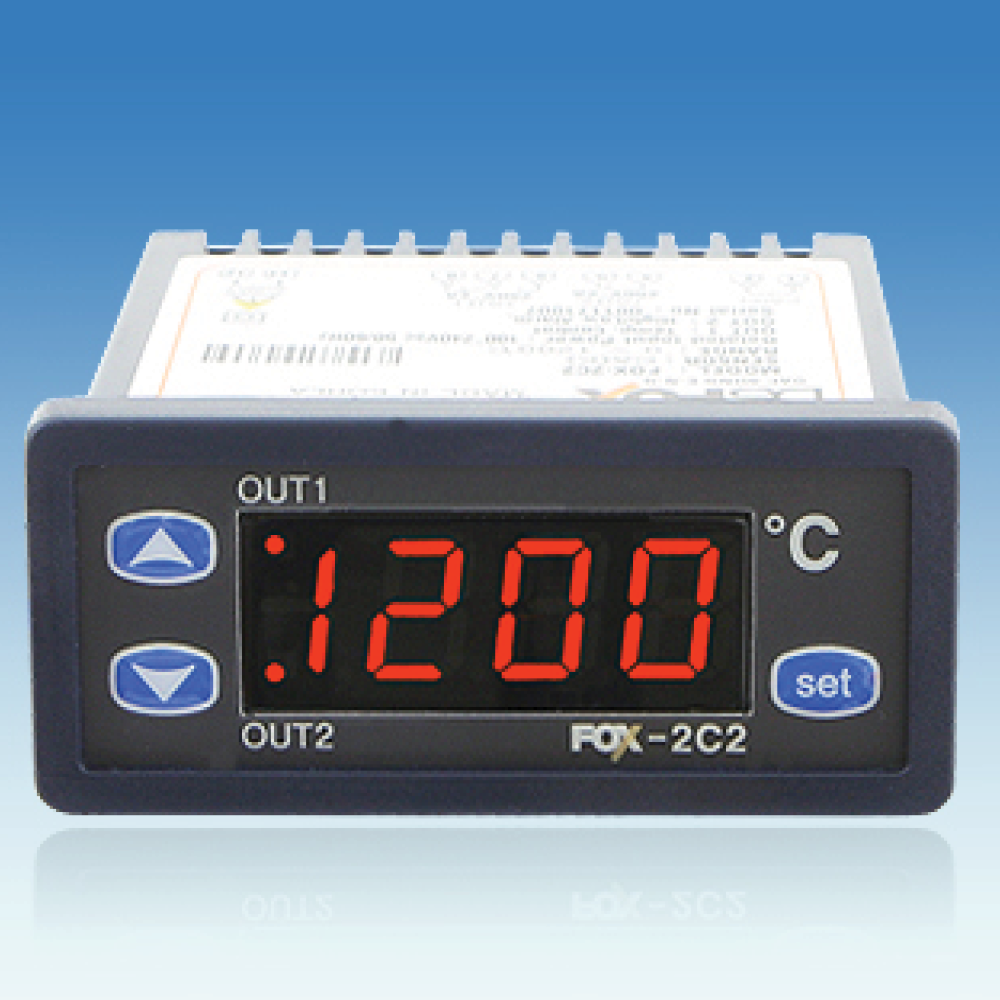

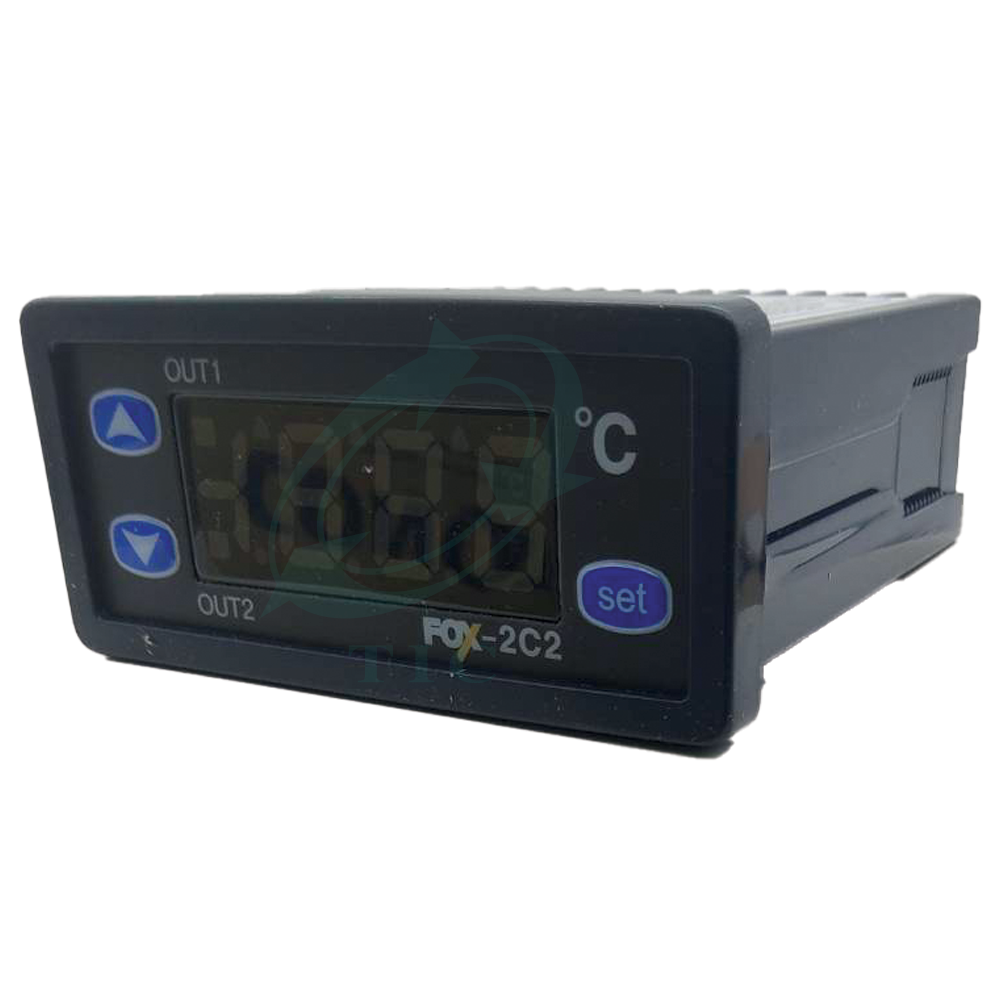

Temperature Probe and Controller/Heater
Brand : FOX
|
Model : FOX-2C2 |
Type : Temperature controller Properties
body size
77(W) X 35(H) X 77(D)
input
CA(K)
temperature display
LED 7 SEGMENTS (RED)
control
ON / OFF
output
Relay 2A / 250VAC
temperature/humidity
0-50°C, 5-85% RH
power supply
220VAC (50/60 Hz)
Pros
With large number, Can see number in the distance
details
- Input Sensor : CA(K)
- Display Accuracy : ±1% rdg ± 1 digit
- Display : LED 7 SEGMENTS (RED)
- Operating Range : 0~1200°C
- Output : 2 Relay( 1a 1c 250VAC 2A )1R : Temp, 2R : Alarm
- Control Method : ON / OFF
- Weight : 160gHighlight : With large number, Can see number in the distance
- Display Accuracy : ±1% rdg ± 1 digit
- Display : LED 7 SEGMENTS (RED)
- Operating Range : 0~1200°C
- Output : 2 Relay( 1a 1c 250VAC 2A )1R : Temp, 2R : Alarm
- Control Method : ON / OFF
- Weight : 160gHighlight : With large number, Can see number in the distance
Data Sheet
