48 x 48 x 91 mm.

-20°C to 50°C

85V~264 VAC (50/60Hz)

IP 65

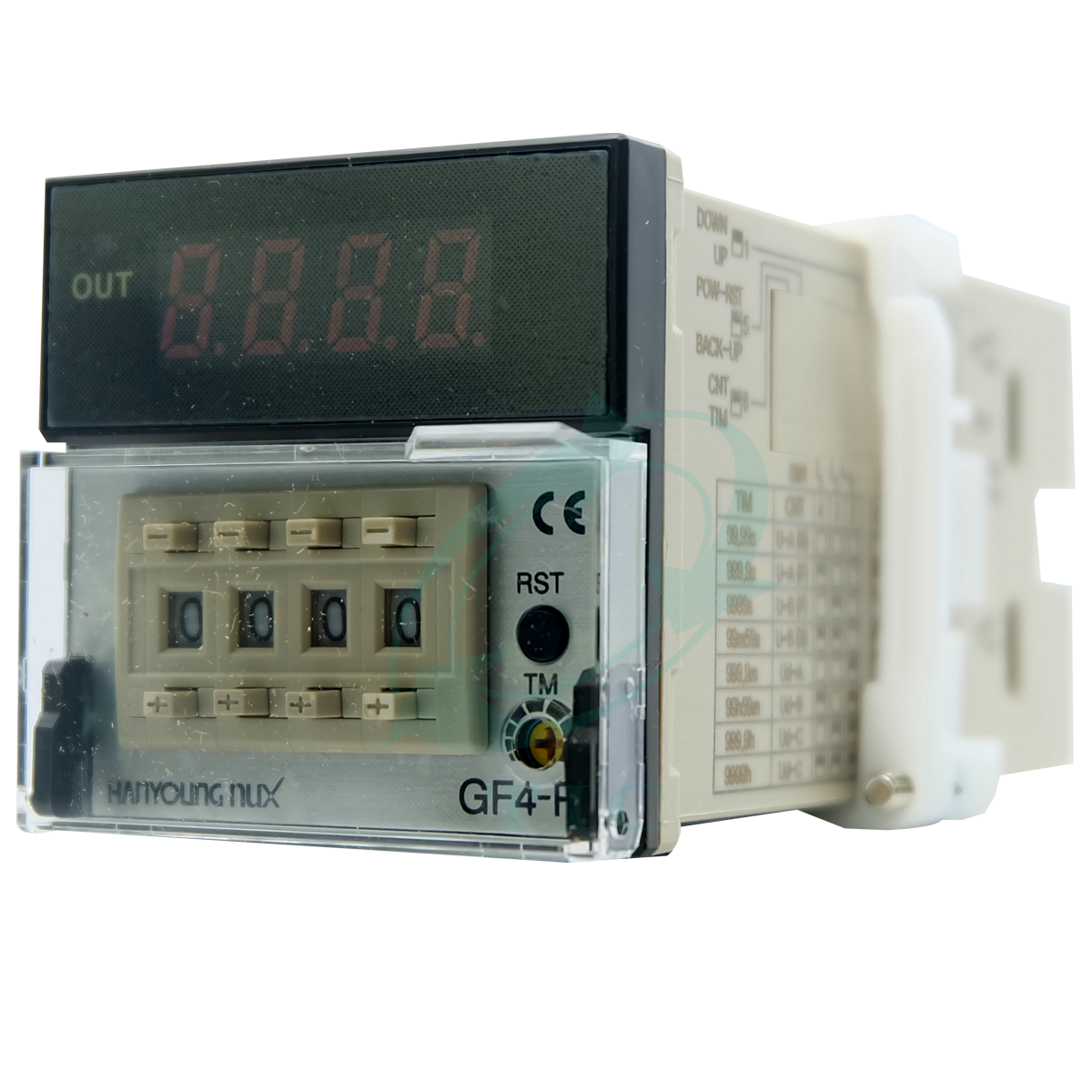

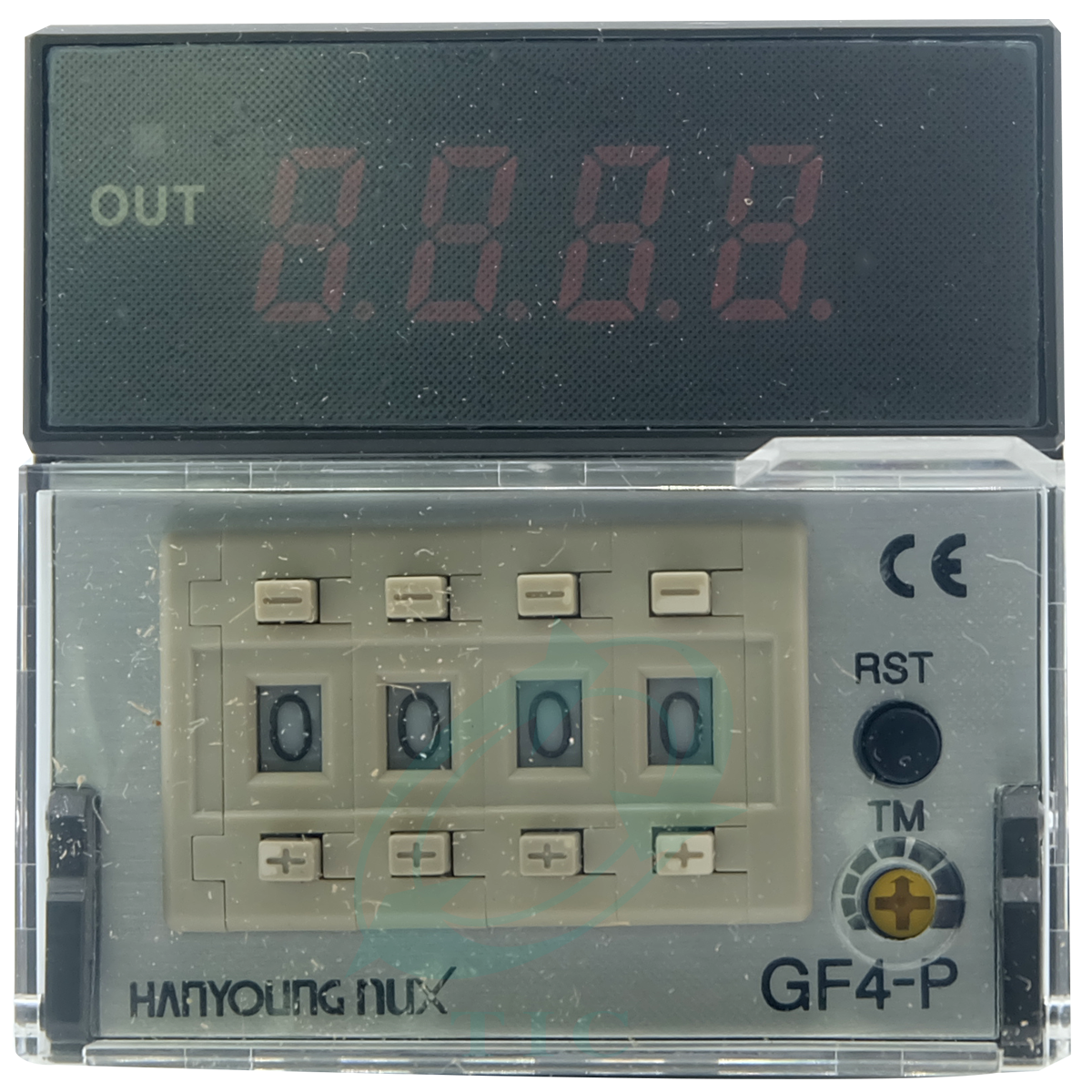

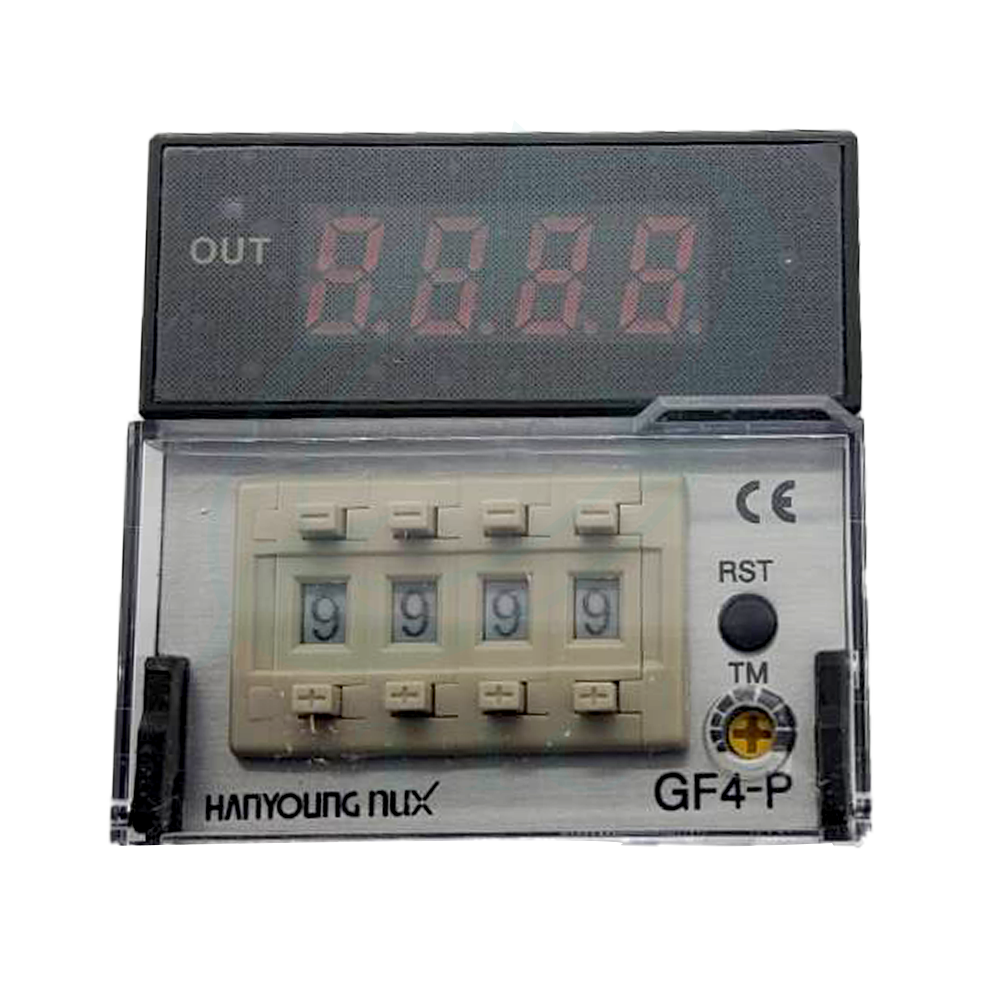

- Housing: Dimension 48 x 48 x 91mm- Digital display ; Zero Blanking system by 7 segment LED 4 digits- Timer range; 99.99s, 999.9s, 9999s, 999.9m, 999.9h, 99m59s, 99h59m- Power supply; AC 85~264V V Power supply to sensor; DC 12V- The speed in the measurement chooses can fine 30Hz / 3 kHz- Choose can be usable both of ON-DELAY / OFF-DELAY- Choose a position has of the decimal point 1 a position- Have no scale Factor- Have 1 output relay 2 A 250VAC (Except GF4-P41N )- Output mode ; F,N,C,R,K,P,Q,S,A2 (Except GF4 -T40N)
