LCD Display can record and real-time display

100 – 240 VAC

-

size 7-inch TFT color LCD (WVGA: 800 x 480 dots)

-

-

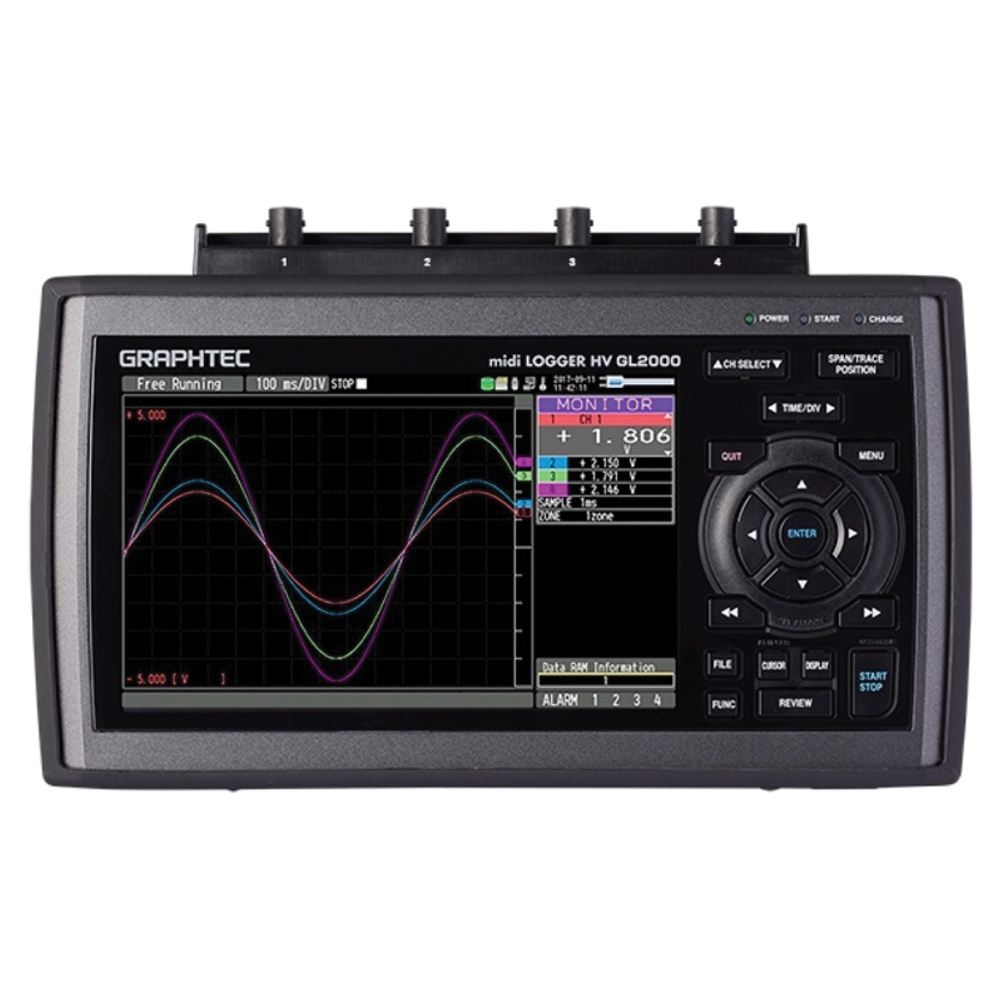

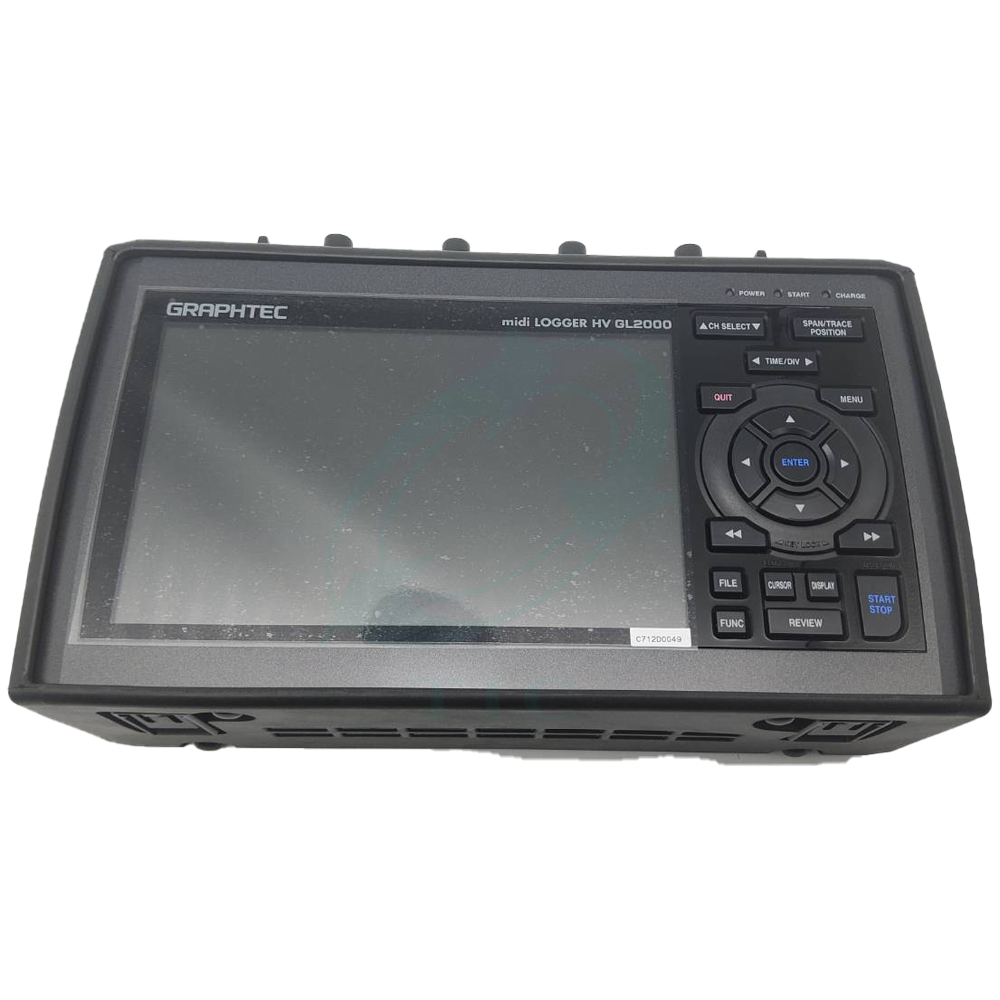

The Graphtec GL2000 is an 4-channel high voltage (600V CAT III) data logger. The GL2000 has isolated inputs for improved inter-channel interference. The GL2000 uses multiple A/D converters to enable simultaneous high-speed sampling on all channels.
- size 7-inch TFT color LCD (WVGA: 800 x 480 dots)
- Multi-function input
● Thermocouple (TC) : K, J, E, T, R, S, B, N, W(WRe5-26)
● Voltage(DC) : 20 mV – 1000V
● Voltage(RMS) : 10 mV – 1000Vrms
● 0 to 100 % RH - using the humidity sensor (option B-530)
- High speed 1 MS/s simultaneous sampling with isolated input
-Waveform in Y-T with digital values, Enlarged waveforms, Digital values and Real-time statistical result values, XY graph
- Mathematical functions include positive, negative, multiplication, division
- Interface to PC Ethernet (10 BASE-T/100 BASE-TX), USB2.0
- Supported OS Windows 10, 8.1, 8, 7, Vista (32/64-bit edition)
