Voltage Module, Voltage / Temperature Module, High Speed Voltage Module High Voltage Module, DC Strain Gauge Module, Charge Acceleration) Module , Logic / Pulse Module, Voltage Output Module

LCD Display can record and real-time display

100 – 240 VAC

-

5.7-inch TFT color LCD monitor (VGA: 640 x 480 dots) touch screen

-

-

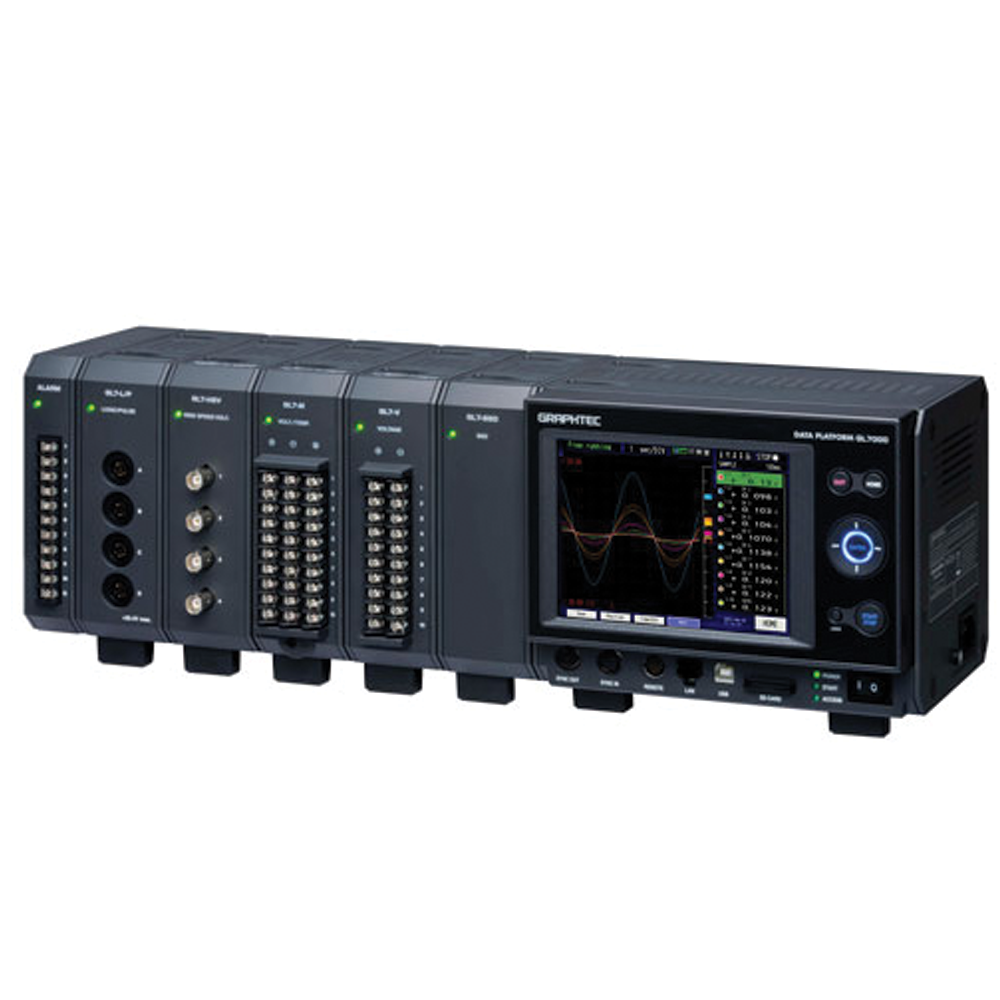

- Attached to up to 10 modules (*1), Max. 112 channels in 1 of GL7000
- 8 Module Input Voltage Module, Voltage / Temperature Module, High Speed Voltage Module High Voltage Module, DC Strain Gauge Module, Charge (Acceleration) Module , Logic / Pulse Module, oltage Output Module
- Storage device RAM, Flash memory, SD CARD, SSD Module

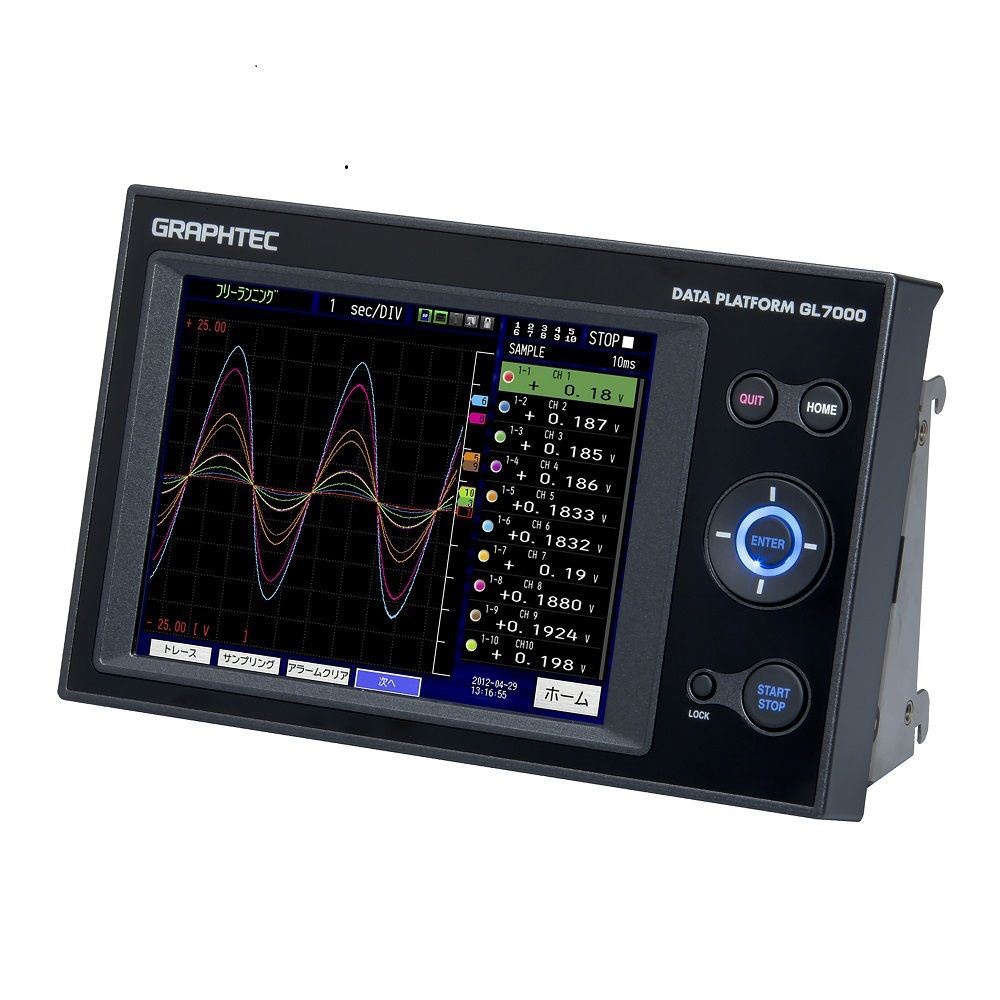

- 5.7-inch TFT color LCD monitor (VGA: 640 x 480 dots) touch screen
- Operating environment 0 to 40?C, 5 to 85% RH
- Power source 100 to 240 V AC, 50 to 60Hz
- Send e-mail to the specified address when the alarms occur
- Free soft ware GL-Connect
