input 20 ch/ expandable up to 200ch.

LCD Display can record and real-time display

100 – 240 VAC

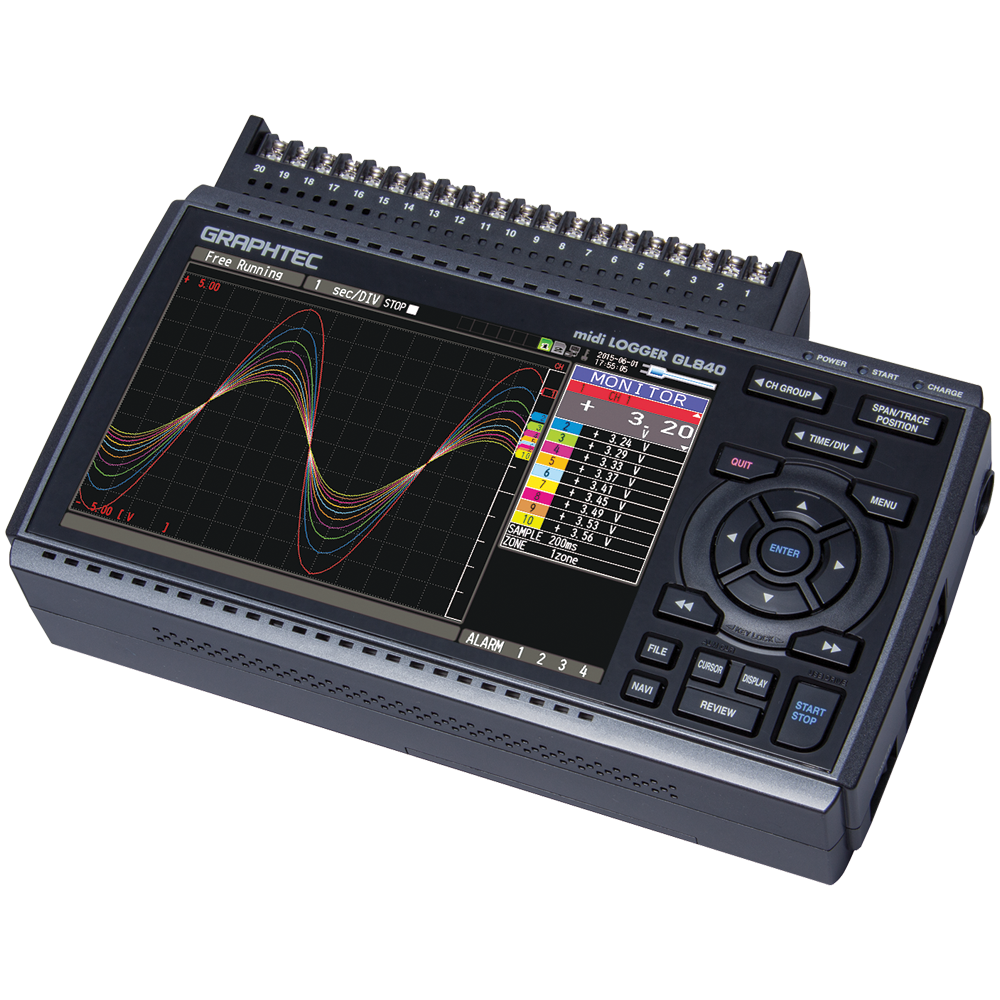

This is the high performance paperless recorder which can operate with universal input 20 ch/ expandable up to 200ch.Memory system with USB flash drive can record a large of data and ensure that data are not loss.

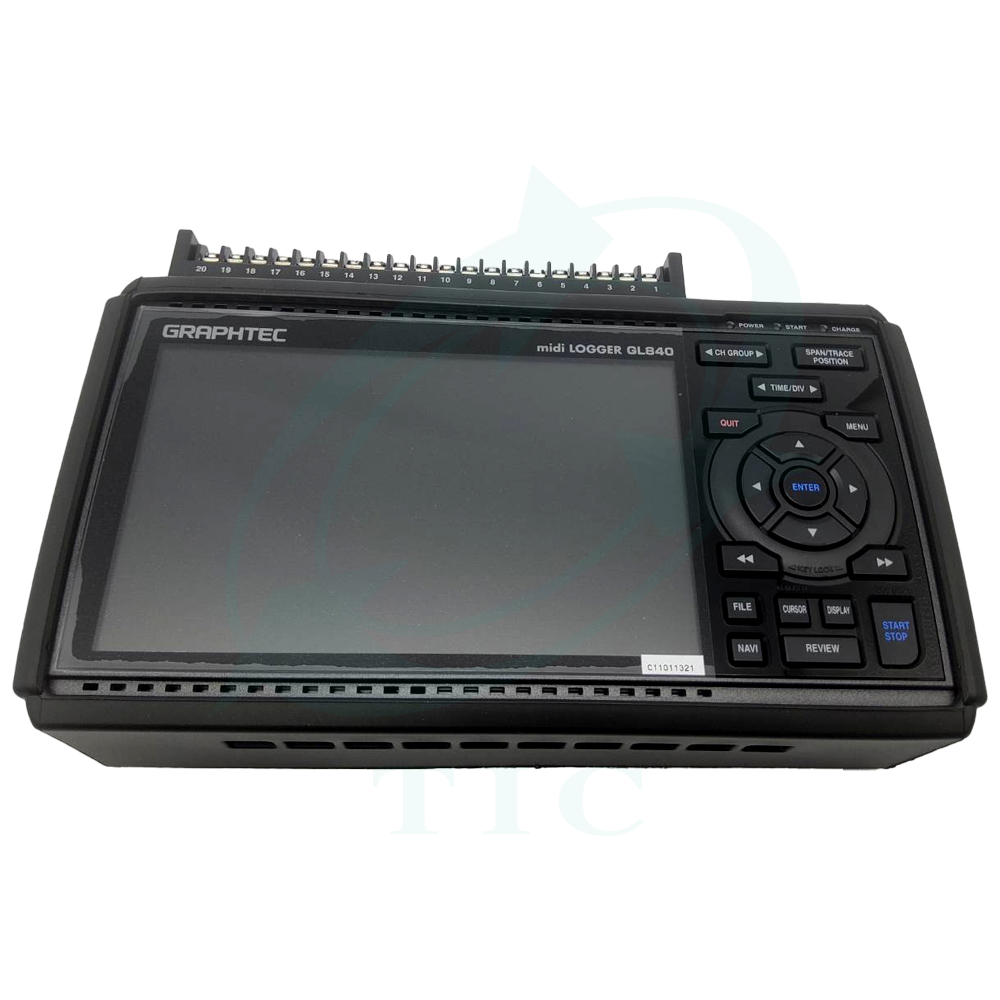

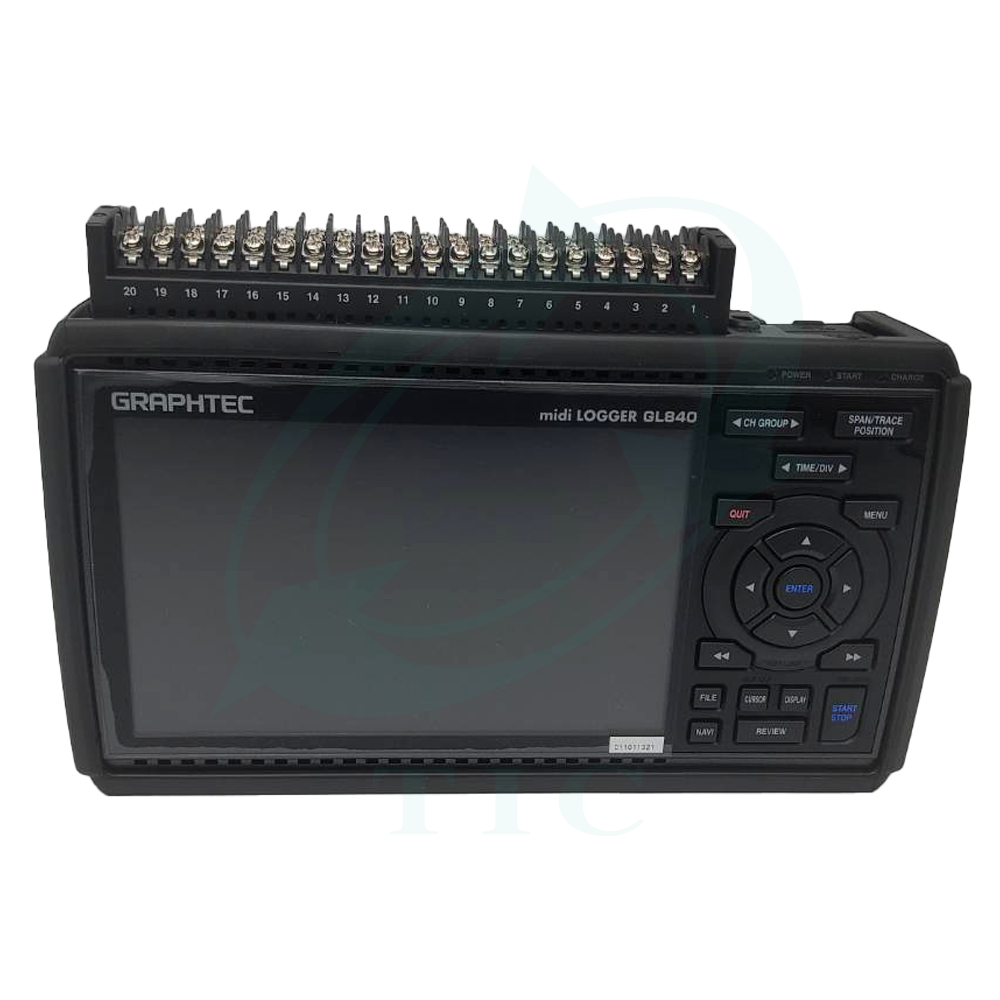

Display 7” color TFT LCD

Alarm output 4 ch.(Open collector)

- Paperless recorder, reduce cost of paper and ink
- Display 7” color TFT LCD
- Various input type : Voltage, Thermocouple, Humidity, Logic/Pulse
- Universal Input- Thermocouple (TC) : K, J, E, T, R, S, B, N, W(WRe5-26)
- RTD : PT100, JPT100, PT1000 (IEC751)
- Voltage : 20 mV – 100 V
- Humidity : 0-100% RH (use with humidity sensor :B-530)
- 20 isolate inputs / expandable up to 200 inputs- Ability to access additional (GL100) sensors & adapters- Smartphone access : AppStore & Google Play
- Display value 4 type : Trend, Bar, Numerical, Mixed- Sampling Rate 10 ms
- Alarm output 4 ch.(Open collector)
- Display function :Average, Peak, Maximum, Minimum, RMS
- Calculate function : Addition, Subtraction, Multiplication, Division
- Dimension :(Wx Hx D) : 232 x 152 x 50 mm.

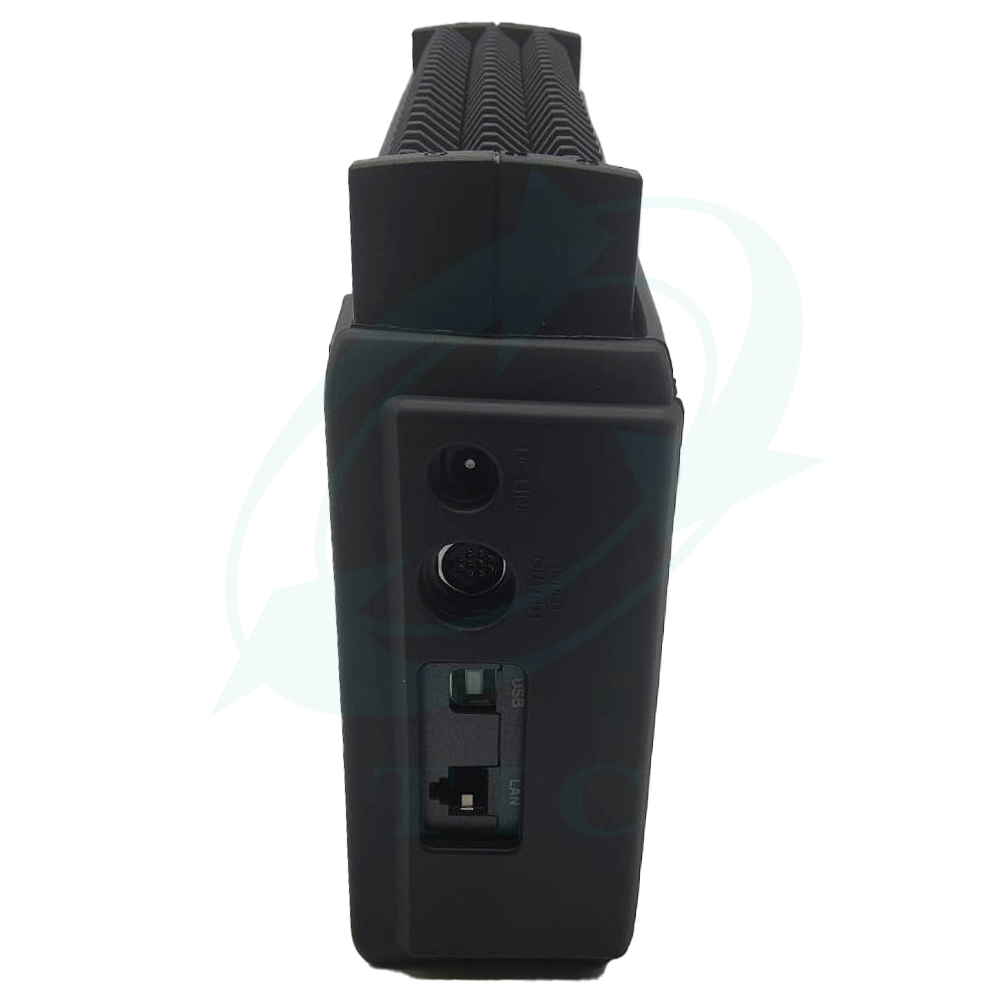

- PC connection : Ethernet (10Base-T/ 100Base-TX) orUSB
- Application Software : Window 8 / 7 / Vista / XP (32 bit, 64 bit)

Internal memory 2GB, expand with USB flash drive (4 GB recommend)
