72 x 72 x 100 mm.

0°C to 50°C

85V~264 VAC (50/60Hz)

None

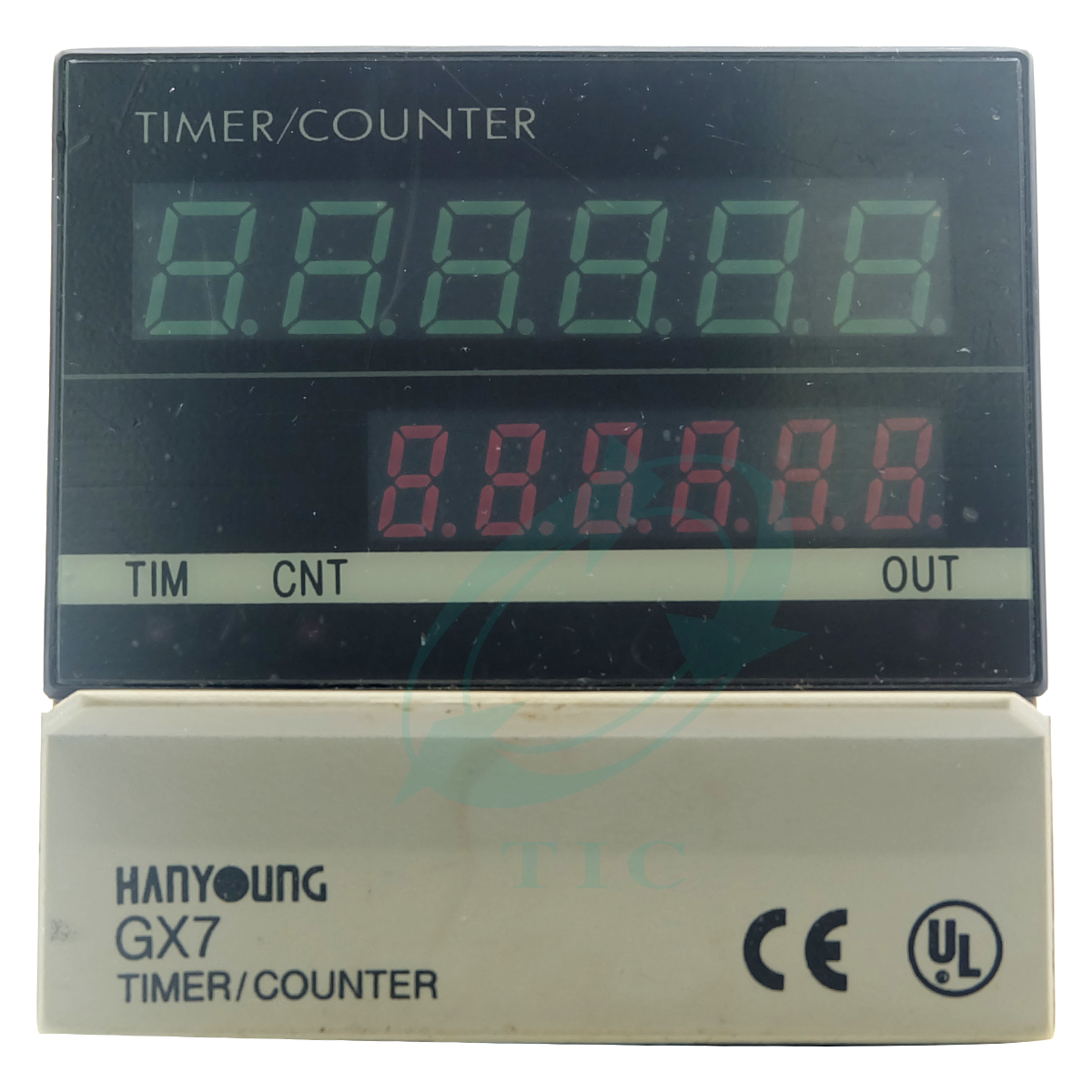

- Digital display; Zero Blanking system by 7 segment LED 6 digits
- Timer range; 99.99s, 999.9s, 9999s, 999.9 m, 999.9h, 99m59s, 99h59m
- The speed in the measurement chooses can fine 30Hz/ 1kHz / 2kHz/ 5kHz
- Choose can be usable both of ON-DELAY / OFF-DELAY
- Choose a position has of the decimal point 3 a position
- Power supply; AC 85~264V Power supply to sensor; DC 12V
- There is scale factor
- Choose the work of Input/Output get many the format such as N, F, C, R, K, P, Q, S, A1 (Except GX7 -T60E)
- Have 1 and 2 A 250VAC 2 output relay oval (Except GX7 -T60E)
