21.5 x 28 mm

-20°C to 50°C

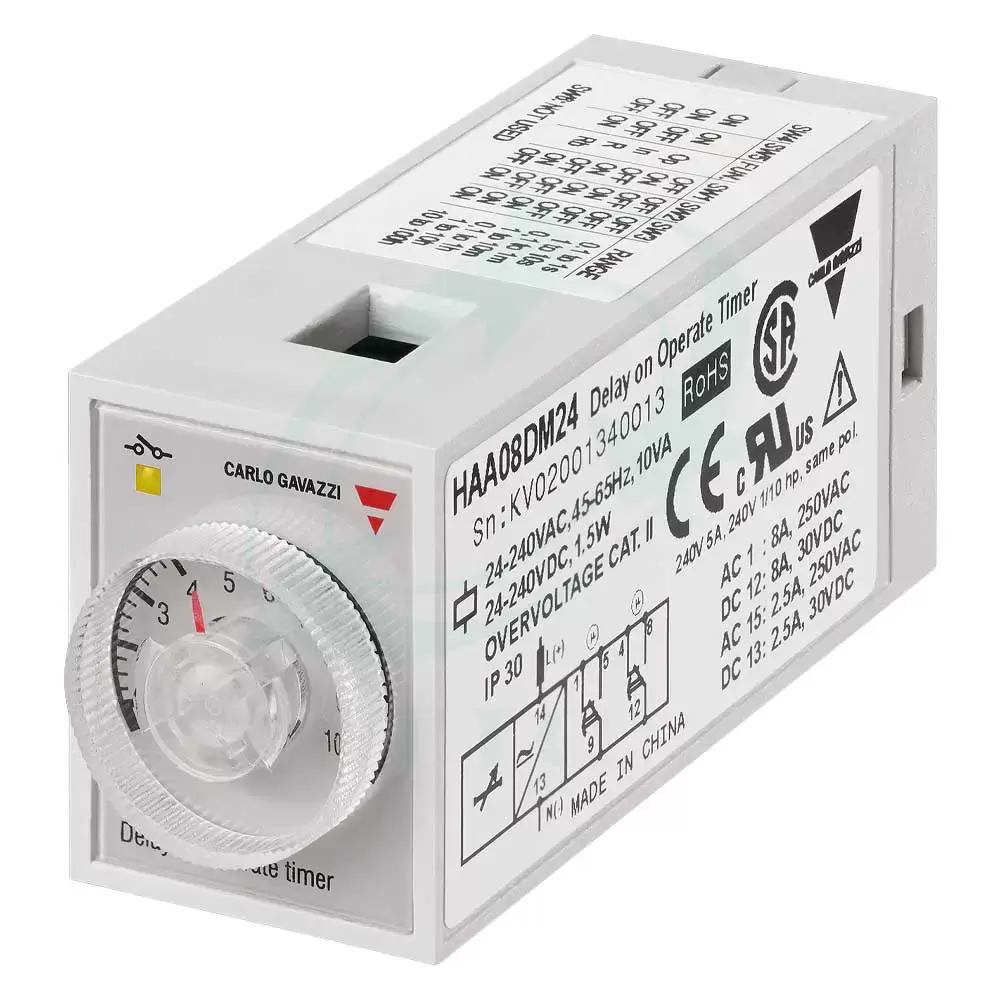

8 A DPDT relay (HAA08), 5 A 4PDT relay (HAA14)

-

IP 52

- Interval can be set from 0.1 sec. to 100 hrs. (Timer Delay on Operate).
- Choose a time interval from the Dip-switch
- Set the usage by turning the twist on the machine.
- The Dip-switch has 4 functions:
Op - delay on operate
R - symmetrical recycler ON first
Rb - symmetrical recycler OFF first
In – interval
- Auto start
- Repeatability: ± 0.3% on full scale
- 8-pin, 14-pin blade socket for HAA08, HAA14 respectively.
- LED indicates relay status and power supply ON
