Temperature Probe and Controller/Heater
Brand : Hanyoung
|

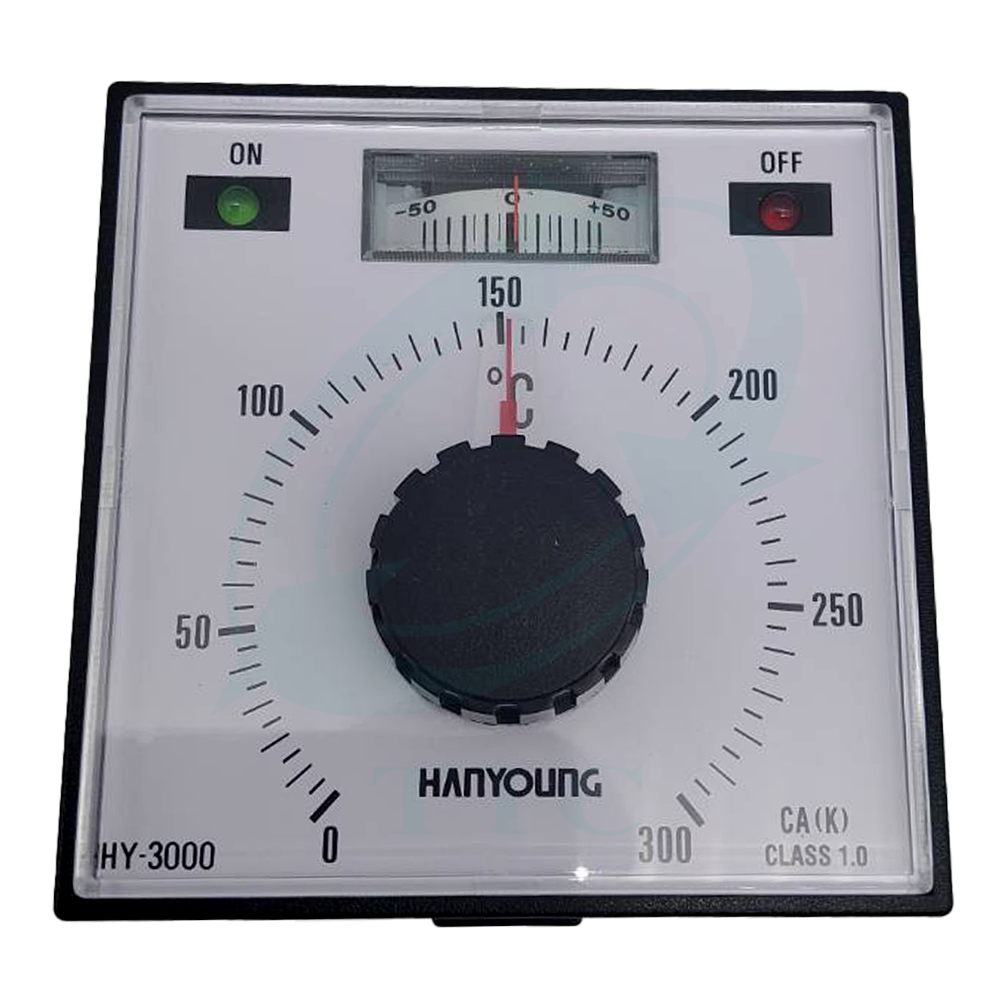

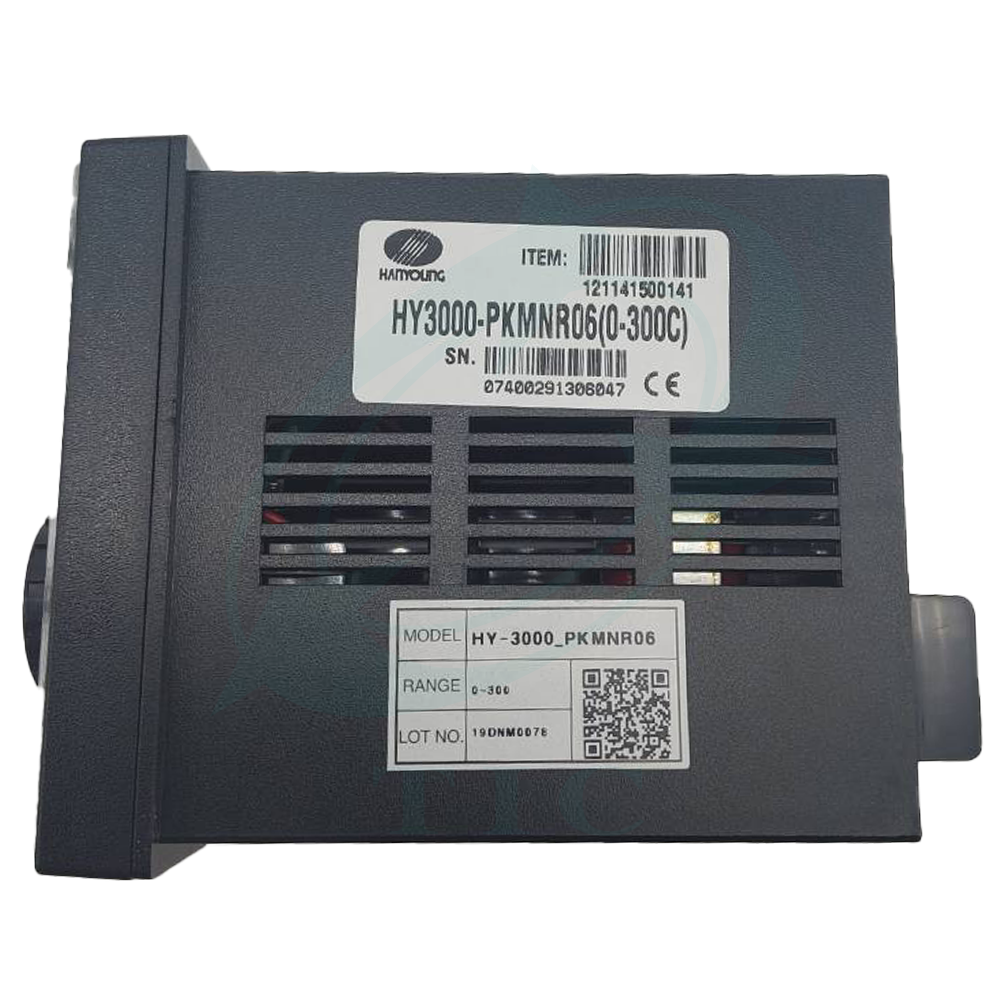

Model : HY3000 (ระบบ ON-OFF) |
Type : Temperature controller Properties
body size
96x96mm, depth 104mm
input
Thermocouple type K, RTD Pt100Ω
Accuracy
1% of full scale or ± 2°C
temperature display
Analog display
control
Proportional band : 3% of full scale (fixed)
output
-
power supply
110 V /220 VAC (50 / 60Hz)
Pros
-
Alarm
-
details
- Display : Deviation display
- Control method : Proportional, ON-OFF control
- Proportional band : 3% of full scale (fixed)
- Control output : Relay output (3A 250VAC)
- Operating temperature : 0-50°C
- Operating humidity : 35-85% RH
- Weight : 440g
- Control method : Proportional, ON-OFF control
- Proportional band : 3% of full scale (fixed)
- Control output : Relay output (3A 250VAC)
- Operating temperature : 0-50°C
- Operating humidity : 35-85% RH
- Weight : 440g
Data Sheet
