-10°C to +55°C

1 Output

5 AAC

IP66

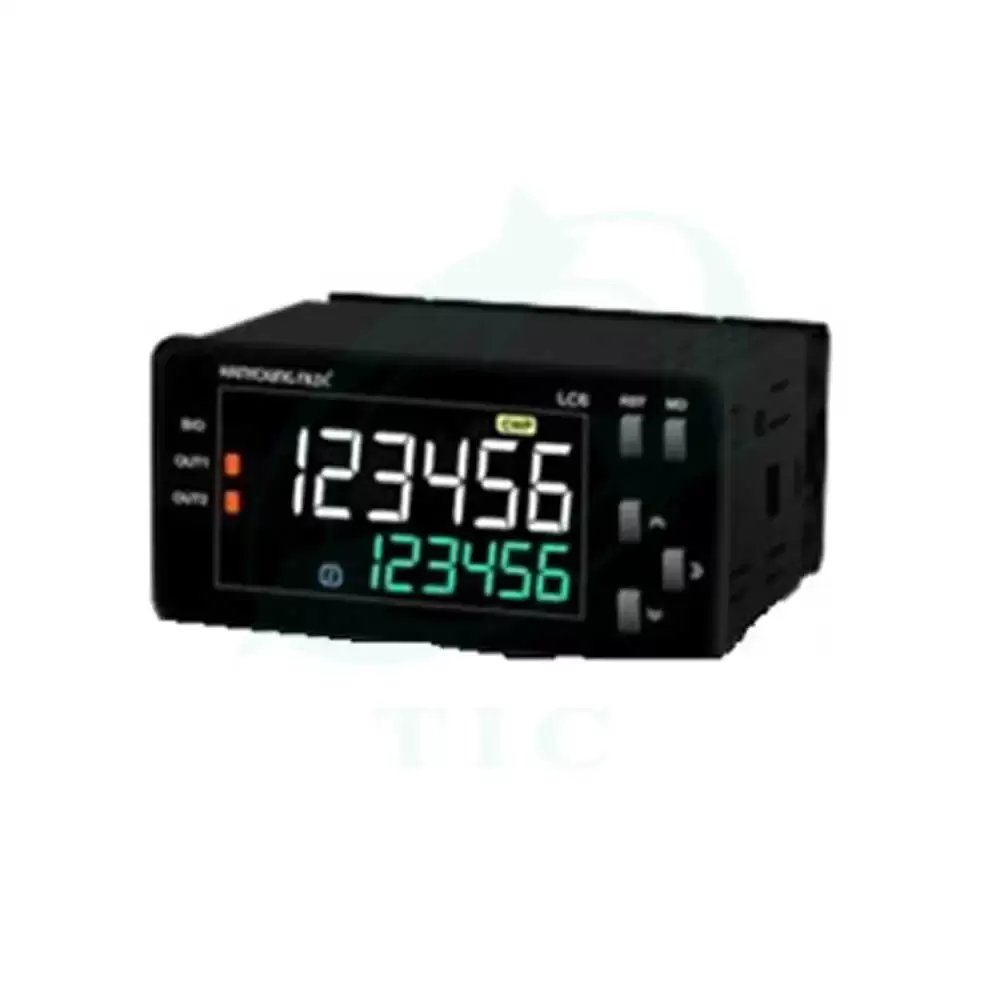

- Digital Counter / Timer Housing: Dimension 72 x 36 x 84.1 mm
- Digital display and White backlight ; Segment LC D 6 digits
- Timer range; 0.00001-999999
- The speed in the measurement chooses can fine 1Hz/ 30Hz/ 1kHz / 10kHz
- Choose can be usable both of ON-DELAY / OFF-DELAY
- Choose a position has of the decimal point 5 position
- Power supply; AC 100~240V
- Power supply to sensor; 12VDC 10%@ 100 mA
- There is scale factor
- Choose the work of Input/Output get many the format such as N, F, C, R, K, P, Q, A
- RS485 Modbus RTU Protocol (Request)
- Key Lock Display function
