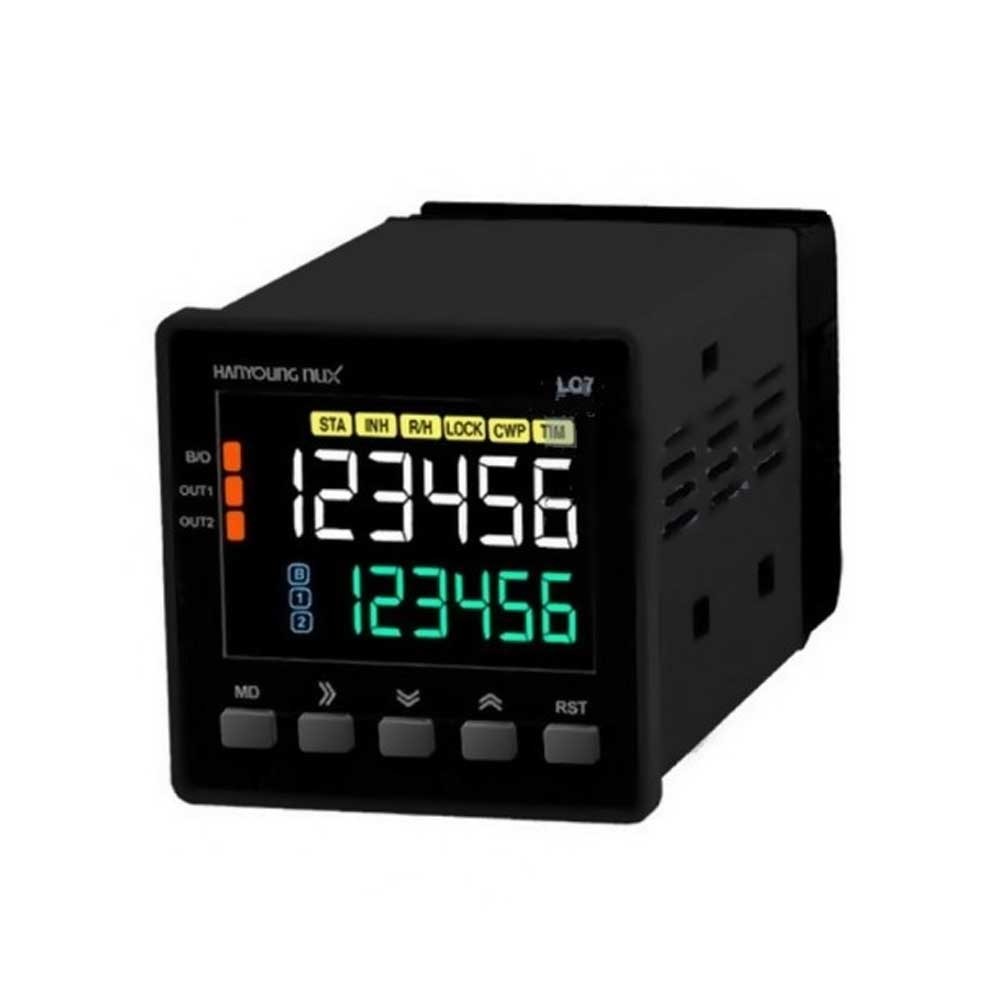

Dimension 72 x 72 x 92.9 mm

Segment LC D 6 digits

-20C to +65C/ 35~85% RH

100V~240 VAC (50/60Hz)

IP 66 , Key Lock Display function

- Timer range; 0.00001-999999
- The speed in the measurement chooses can fine 1Hz/ 30Hz/ 1kHz / 10kHz
- Choose can be usable both of ON-DELAY / OFF-DELAY
- Choose a position has of the decimal point 5 position
- Power supply; AC 100~240V
- Power supply to sensor; 12VDC 10%@ 100 mA
- There is scale factor
- Choose the work of Input/Output get many the format such as N, F, C, R, K, P, Q, A
- Have 1 output relay 2 A 250VAC (Select by Order)
- RS485 Modbus RTU Protocol (Select Order)
