-20° C ... +80 °C)

The sensor is made of plastic.

4.8 - 30 VDC

Push-Pull 4.8-30 VDC or RS422 4.8 -26 VDC

IP 67

Measurement is dependent on the sensor. Available in 10µm., 25µm. and 100µm.

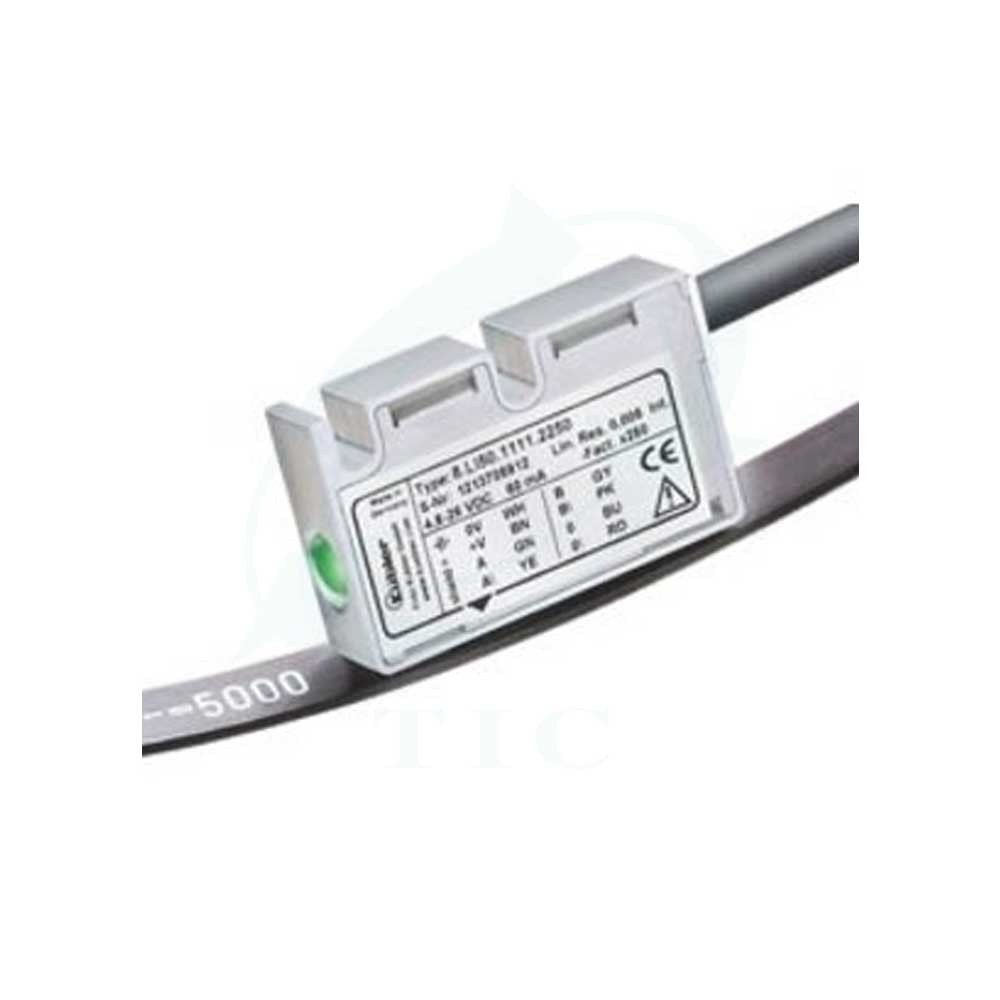

It consists of a LI20 Series sensor and a B1 Series magnetic stripe. Easy to use, simply attach the magnetic stripe to the area to measure distance/velocity. Then install the sensor by placing the sensor on the magnetic bar. when the sensor moves It outputs a pulse to an indicator such as a Counter, Tachometer or PLC.
feature
- The measurement distance depends on the length of the magnetic bar. Available up to 20 meters
-Easy to install, not afraid of water, not afraid of dust, suitable for measuring distance / measuring speed of movement in a straight line.
