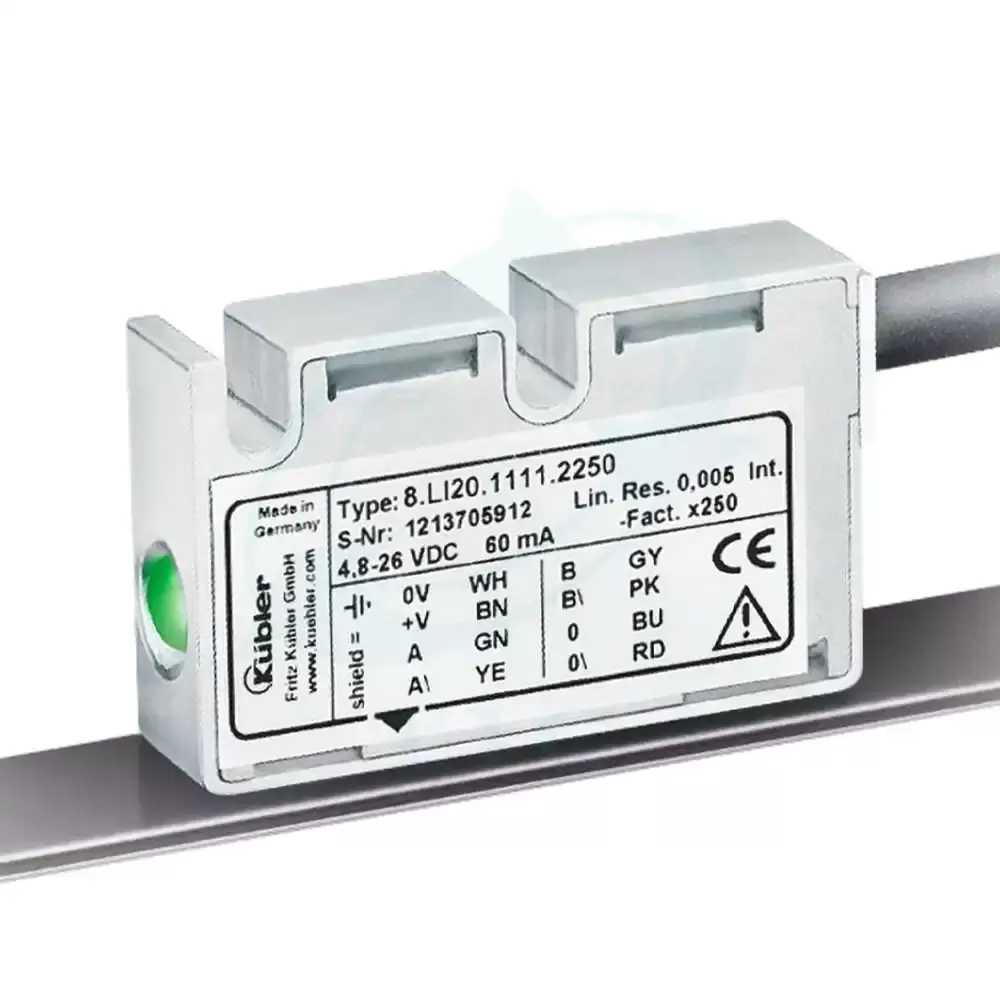

Encoder
Brand : Kubler
|
Model : LI20/B1 LIMES (แบบ Linear) |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
operating temperature range
-20 °C ... +80 °C
power supply
4.8-26 Vdc/4.8-30 Vdc
output
RS422/Push-Pull
IP
IP67,IP68,IP69K
Housing Material
Aluminum
resolution
10,25,100 µm.
details
- LI20 Series sensors and B1 Series magnetic strips.
- Easy to use, attach the magnetic strip to the area where you want to measure distance/speed, then install the sensor so that it is placed on the magnetic strip.
When the sensor moves, a pulse is output to a display such as a Counter, Tachometer or PLC.
- measurement distance depends on the length of the magnetic strip, select up to 20 meter
- Easy to install, waterproof, dustproof, suitable for measuring distance/speed of straight-line movement.
- Easy to use, attach the magnetic strip to the area where you want to measure distance/speed, then install the sensor so that it is placed on the magnetic strip.
When the sensor moves, a pulse is output to a display such as a Counter, Tachometer or PLC.
- measurement distance depends on the length of the magnetic strip, select up to 20 meter
- Easy to install, waterproof, dustproof, suitable for measuring distance/speed of straight-line movement.
