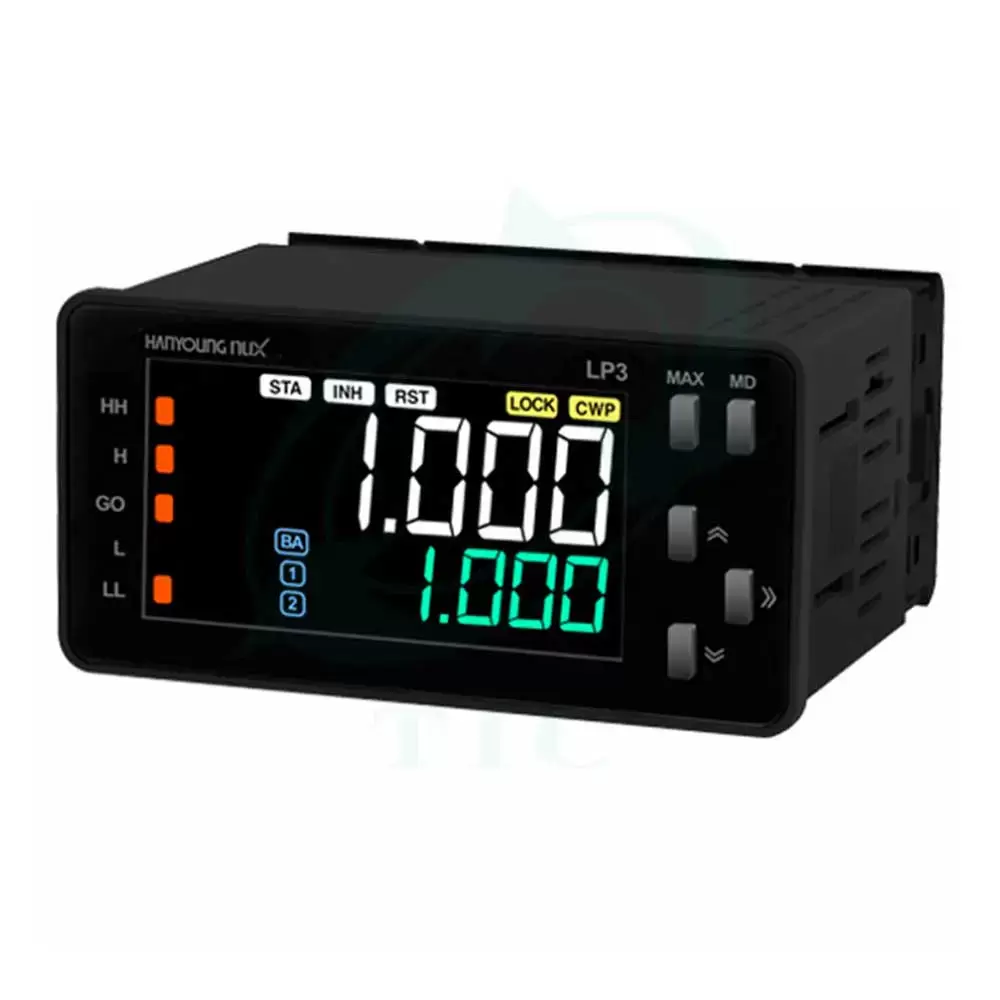

Multifunction Counter
Brand : Hanyoung
|
Model : LP3-5AN |
Type : Counter/Timer/Time switch Properties
operating temperature range
-10°C to +50°C
output
None
Current rating
None
IP
IP66
details
- Dimension 96 x 48 mm
- 7 segment display 5 digits
- Power supply 110 – 240 VAC
- Voltage output for sensor 12 VDC 120mA
- Mode operation: Frequency/speed, moving speed, Cycle, Passing time, Time different, Time width, Pulse width, Pulse interval, Addition counter
- Analog output, Relay output, Open collector
- Operating temperature -10 – 50oC
- Operating Humidity 35- 85 %RH
- 7 segment display 5 digits
- Power supply 110 – 240 VAC
- Voltage output for sensor 12 VDC 120mA
- Mode operation: Frequency/speed, moving speed, Cycle, Passing time, Time different, Time width, Pulse width, Pulse interval, Addition counter
- Analog output, Relay output, Open collector
- Operating temperature -10 – 50oC
- Operating Humidity 35- 85 %RH
Data Sheet
