48 x 24mm

Thermocouple : K, J, T, E, R, S, B, U, N R.T.D : Pt100 Voltage : 0~10,0~100mV DC

±( 0.5%FS+1 digit)

LED 7 SEGMENTS

PID Conttrol or ON-OFF Control

Current : 4~20mA,0~20mA Receiving impedance : 250Ω- Contact : 1a, Contact capacity : 240V AC 2A / resistive load

90-264 VAC 50/60Hz or 24 VAC/DC

-

- Mini size digital controller.
- Accuracy ± 0.3% FS + 1digit

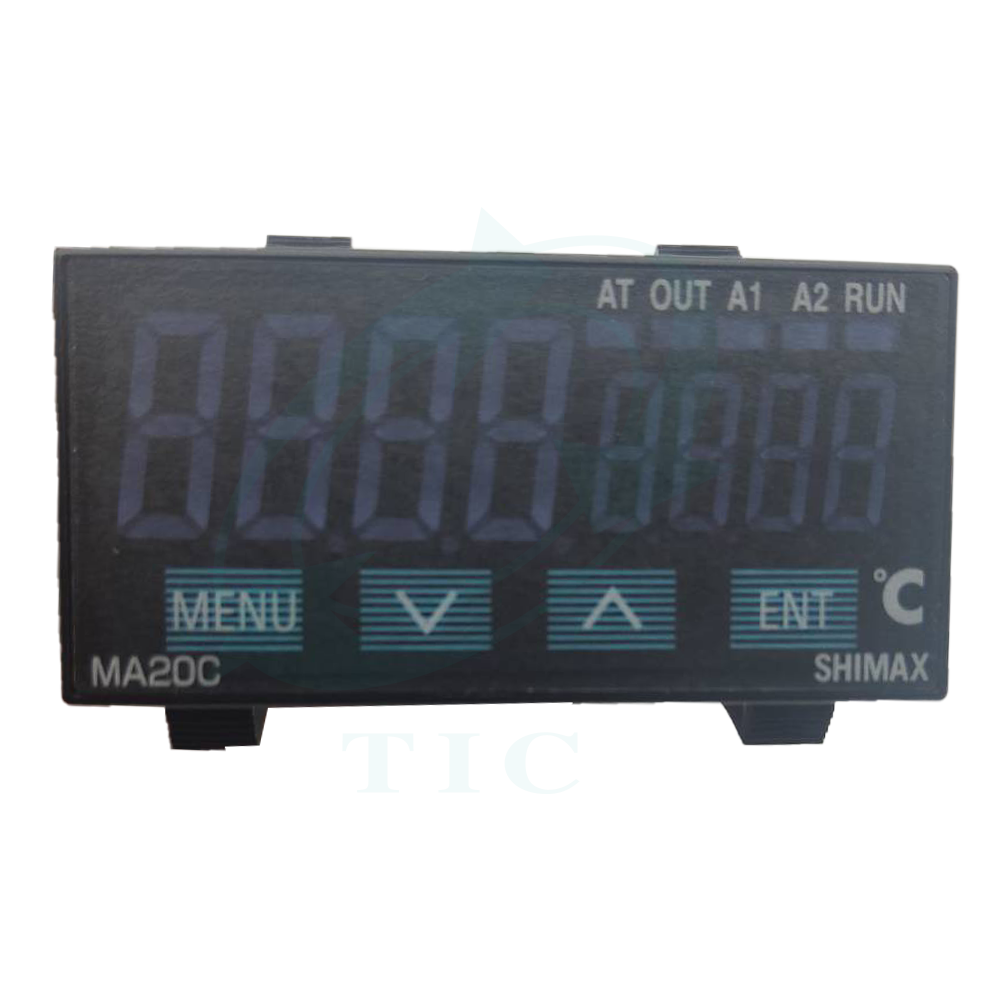

- Digital display:PV 7-segment red LED 4 digit (Character height 11.6mm)SV 7-segment yellow LED 4 digit (Character height 8.4mm)Voltage input : 0-10mV, 0-100mV DCCurrent input : 4~20mA, 0~20mA Receiving impedance : 250Ω
- PID control with auto tuning function or ON-OFF operation.
- Power supply : 90-264 VAC 50/60Hz or 24 VAC/DC
- Option : Alarm output, analog retransmission, digital input, RS-485 communication
- Free program software (Shimax Soft) for link to computer.
- Dimension : 48 x 24mm
