Temperature Probe and Controller/Heater
Brand : Shimax
|

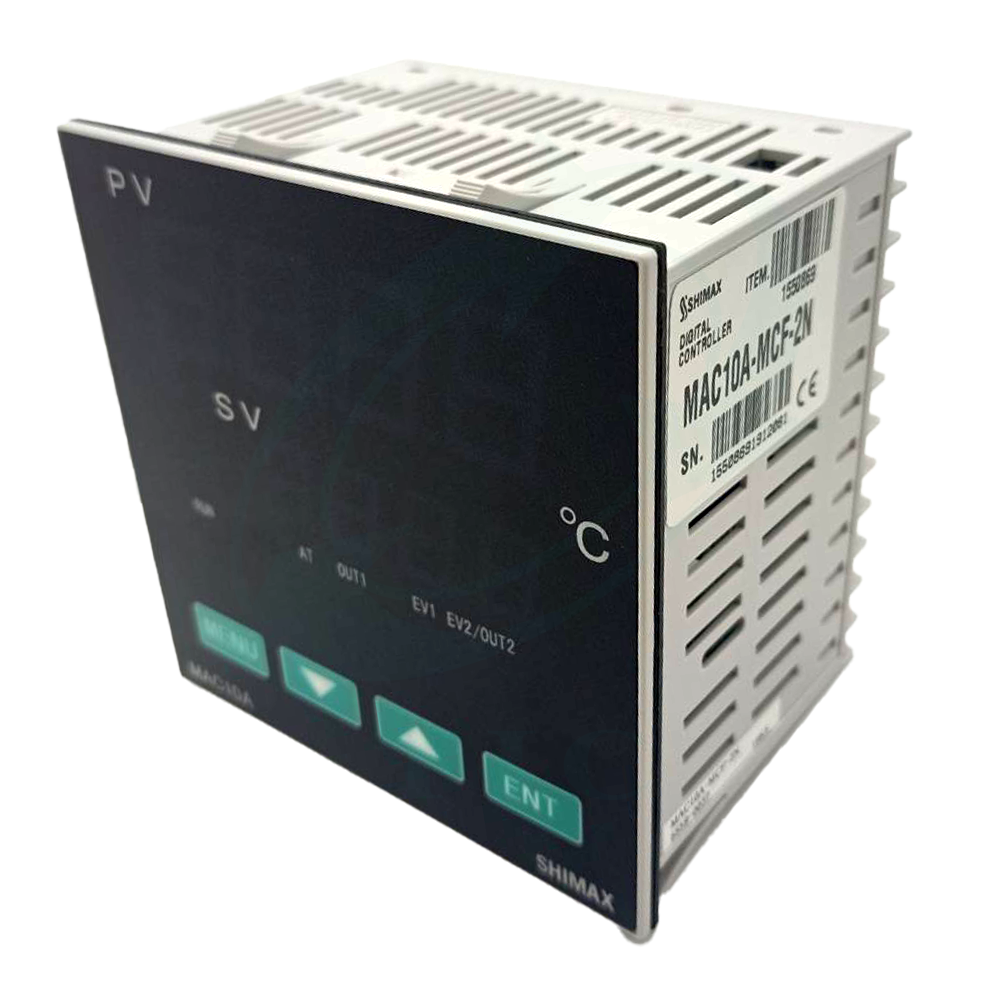

Model : MAC10 Series |
Type : Temperature controller Properties
body size

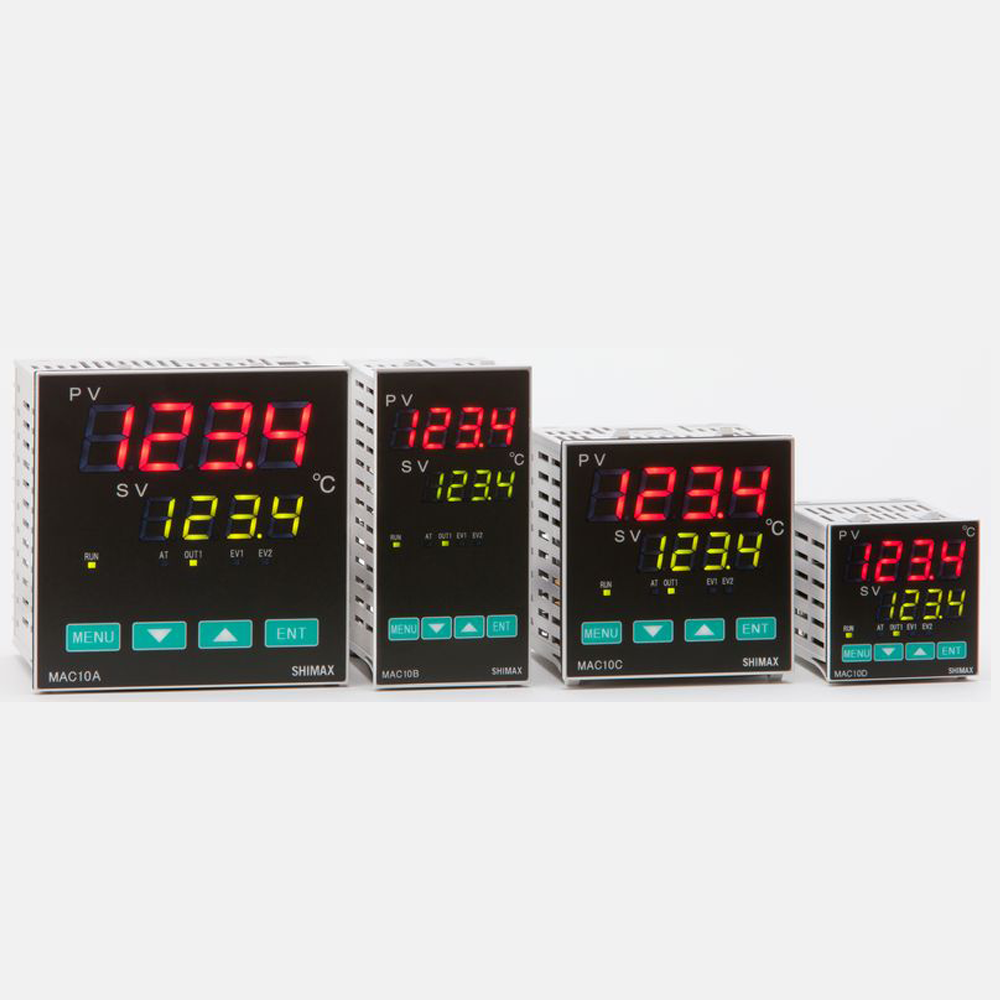

Size of MAC10 Series
- MAC10A size 96x96mm
- MAC10B size 48x96mm
- MAC10C size 72x72mm
- MAC10D size 48x48mm
- MAC10A size 96x96mm
- MAC10B size 48x96mm
- MAC10C size 72x72mm
- MAC10D size 48x48mm
input
Universal input : Thermocouple : K, J, RTD : Pt100, Voltage input : 0-50mV, Current:: 0-20mA, 4-20mA
Accuracy
±( 0.5%FS+1 digit)

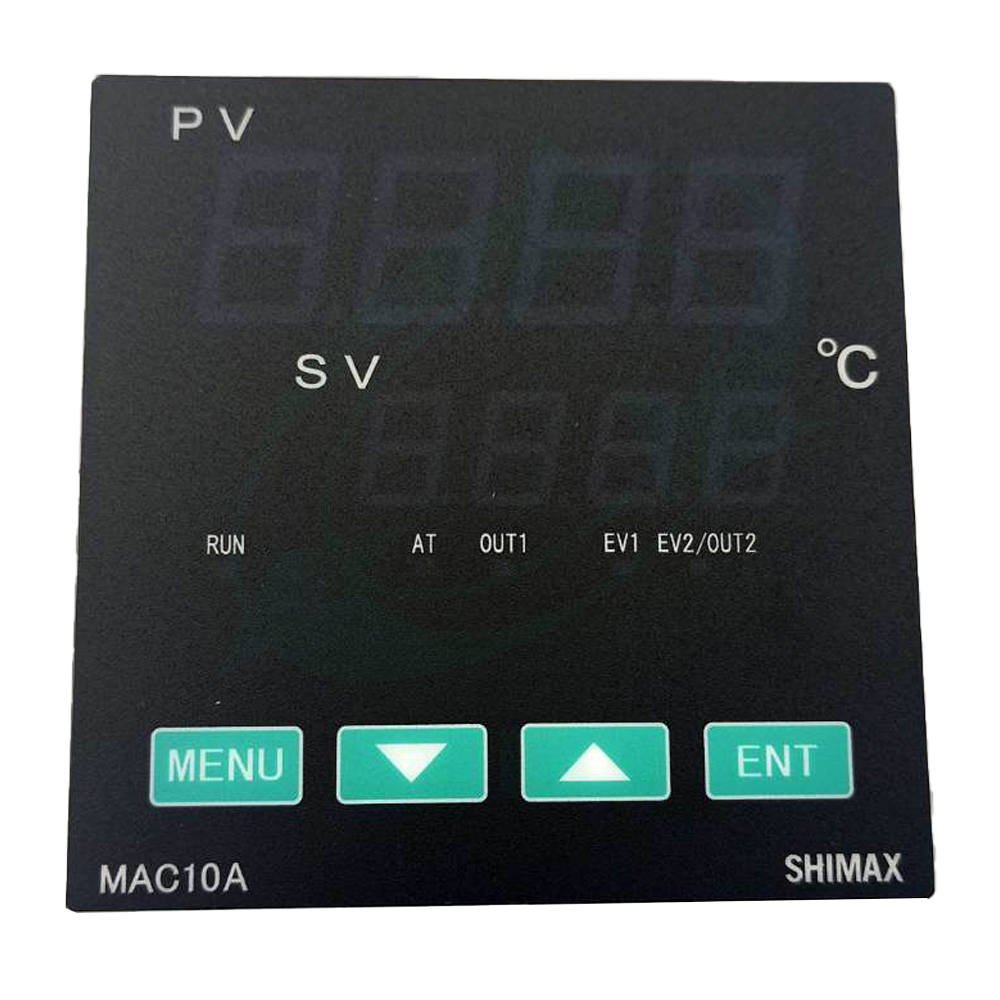

temperature display
LED 7 SEGMENTS
control
PID Conttrol or ON-OFF Control
output
-
power supply
90-264 VAC
Alarm
-
details
- Low cost compact digital controller.
- Space saving design : Panel depth is 62-65 mm. Vertical & Horizontal
- PID control with auto tuning function or ON-OFF operation.
- Power supply : 100-240 VAC 50/60Hz
- Main control output : Relay contract, pulse 12VDC or current 4-20mA
- Sampling period 0.25s
- Option : Alarm output, Alarm Delay & Timer
- Space saving design : Panel depth is 62-65 mm. Vertical & Horizontal
- PID control with auto tuning function or ON-OFF operation.
- Power supply : 100-240 VAC 50/60Hz
- Main control output : Relay contract, pulse 12VDC or current 4-20mA
- Sampling period 0.25s
- Option : Alarm output, Alarm Delay & Timer
Data Sheet
