Temperature Probe and Controller/Heater
Brand : Shimax
|

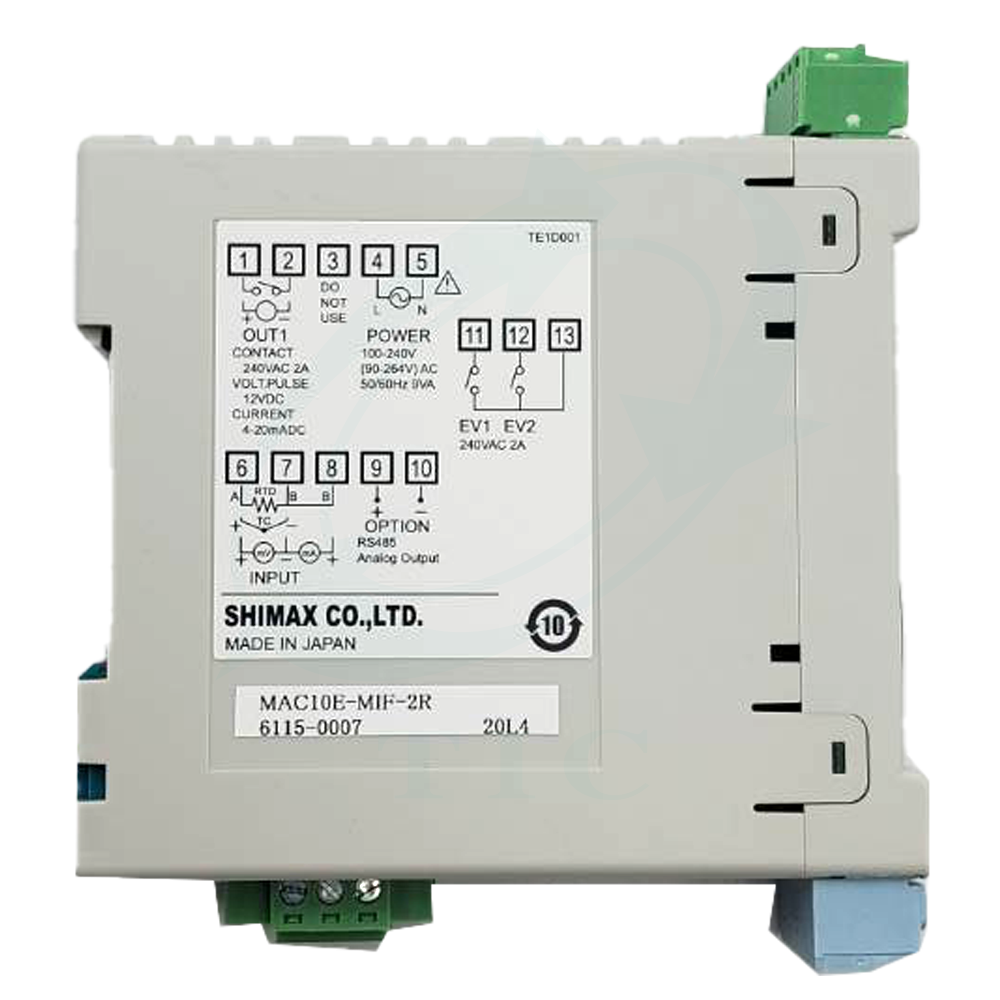

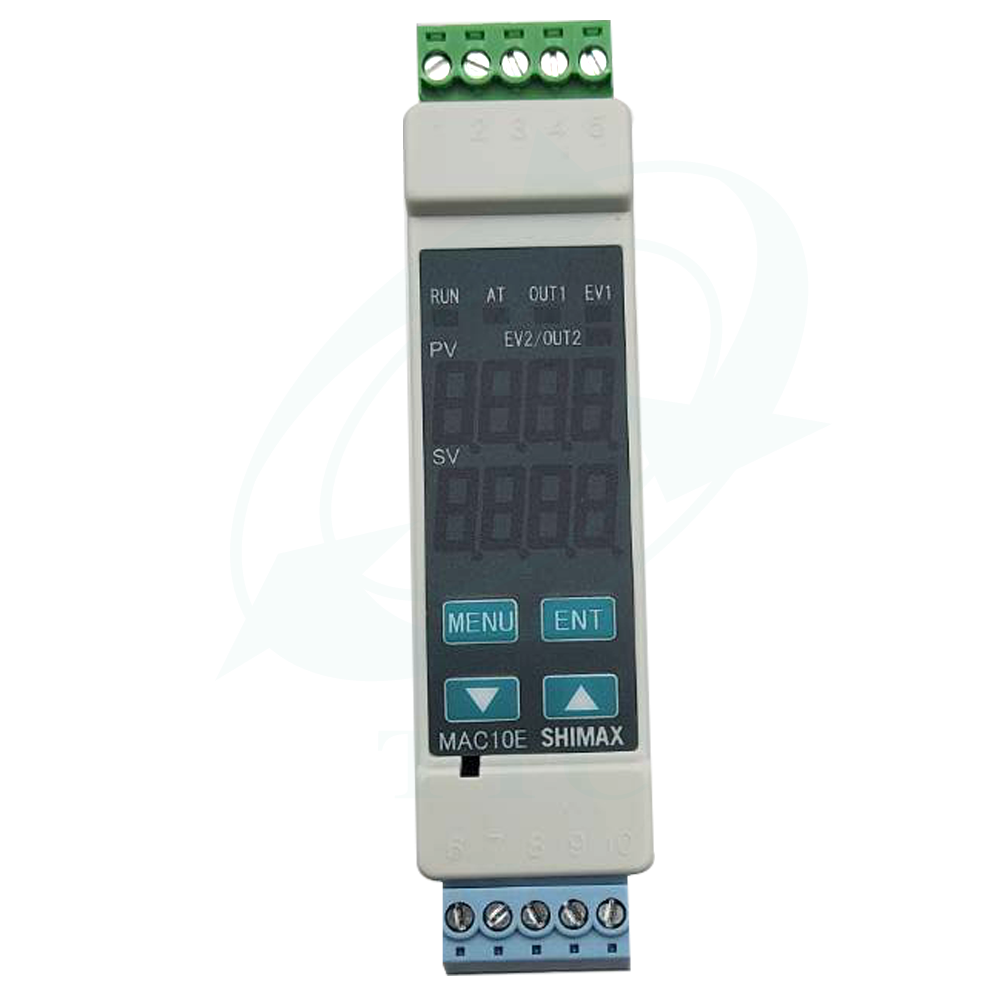

Model : MAC10E Series |
Type : Temperature controller Properties
body size
Size 22.5 mm. X 75mm. DIN rail mounting
input
Multiple Input (K, J, T, E, B, R, S, N, WRe5-26) PT100Ω,Voltage (0-50mV0-20mV 0-10mV ±10mV), Current (4-20mA 0-20mA)
Accuracy
±( 0.3%FS+1 digit)
temperature display
LED 7 SEGMENTS
control
PID Conttrol or ON-OFF Control
output
Output Relay 240VAC 2A, Output Current 4-20mA, Output Voltage 12VDC
power supply
90-264 VAC
Alarm
-
details
- Sampling Period 0.25 S
- Function alarm Timer
- Function alarm output 2 Channel
- Function analog 4-20mA 1 Channel
- Function communication port RS485 1 Channel
Highlight : Multiple input Thermocouple, RTD PT100Ω, Current, Voltage Built in
- Function alarm Timer
- Function alarm output 2 Channel
- Function analog 4-20mA 1 Channel
- Function communication port RS485 1 Channel
Highlight : Multiple input Thermocouple, RTD PT100Ω, Current, Voltage Built in
Data Sheet
