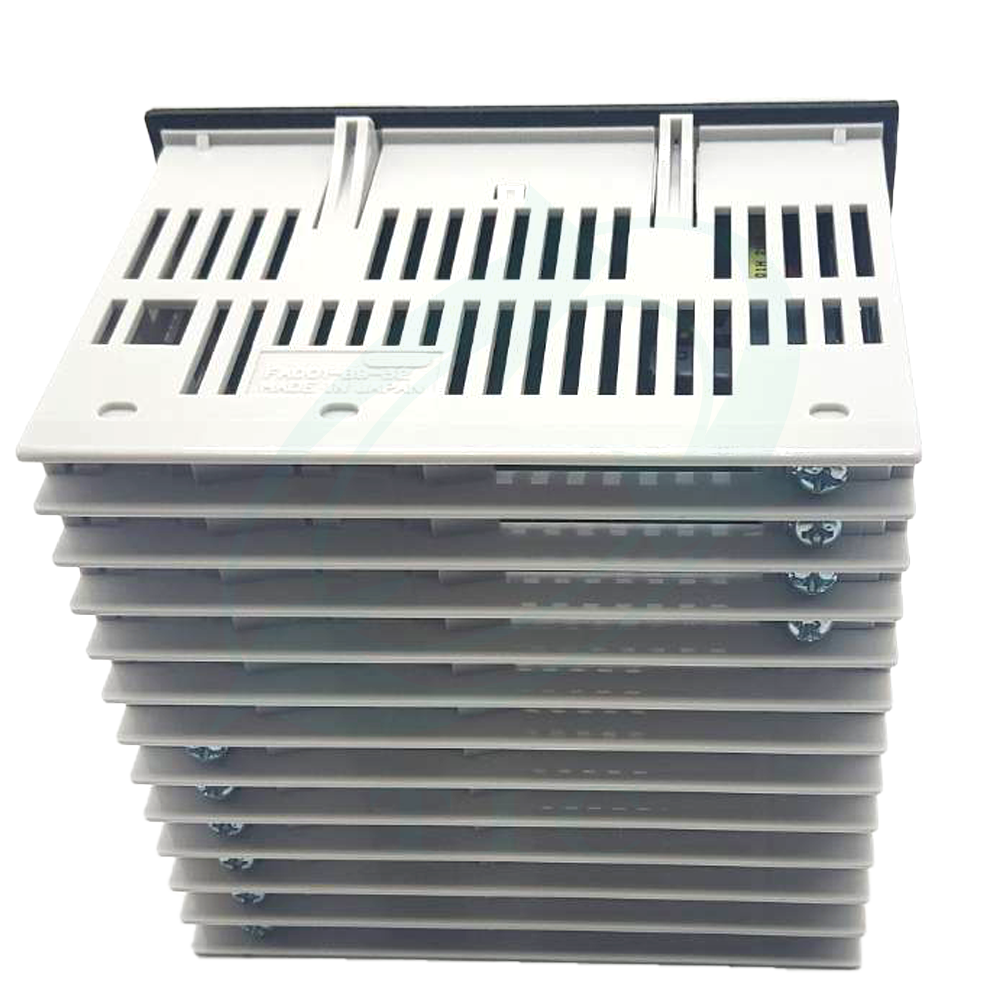

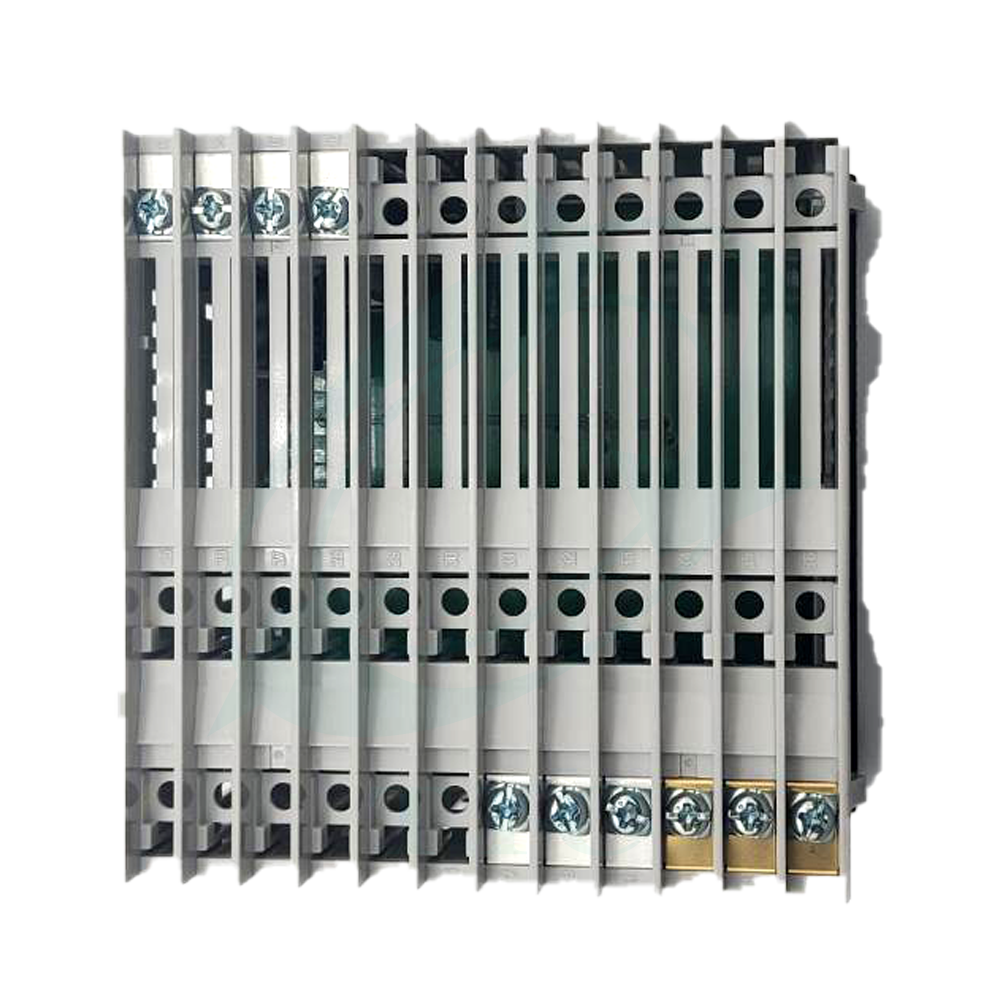

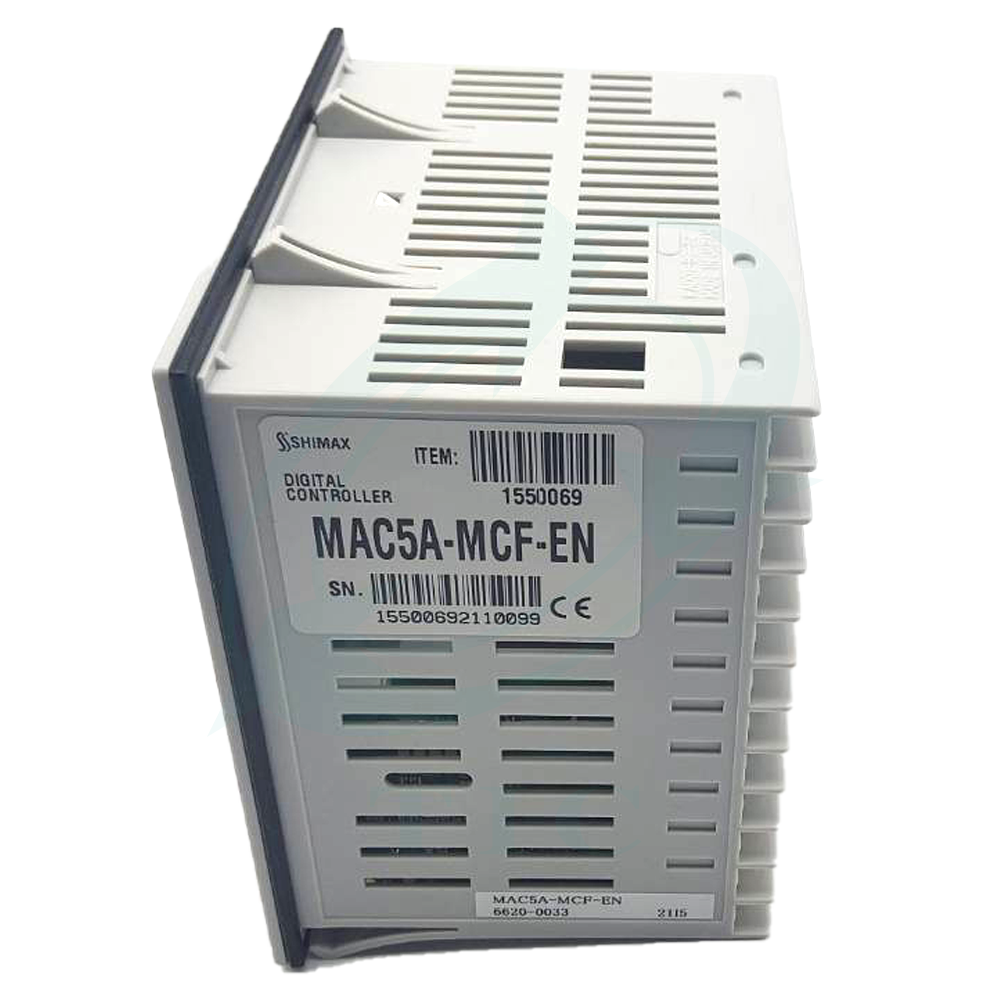

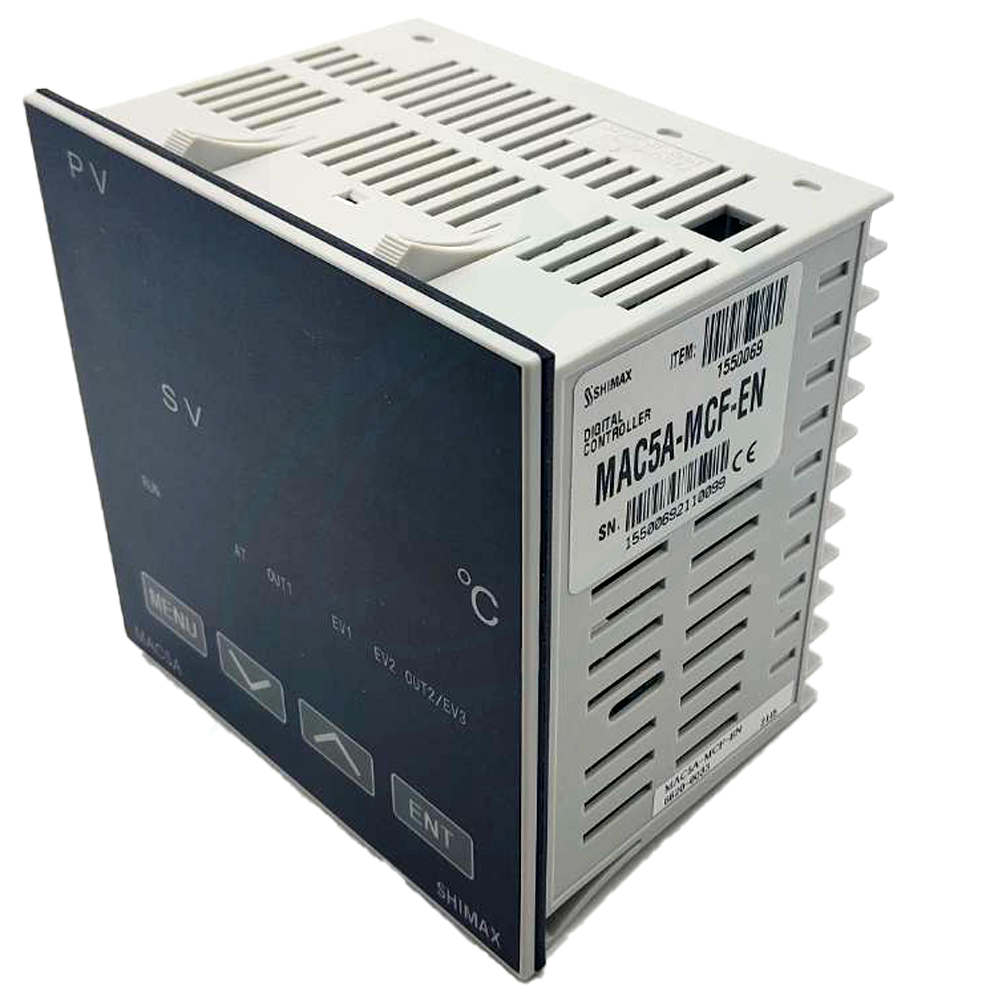

Temperature Probe and Controller/Heater
Brand : Shimax
|
Model : MAC5 Series |
Type : Temperature controller Properties
body size

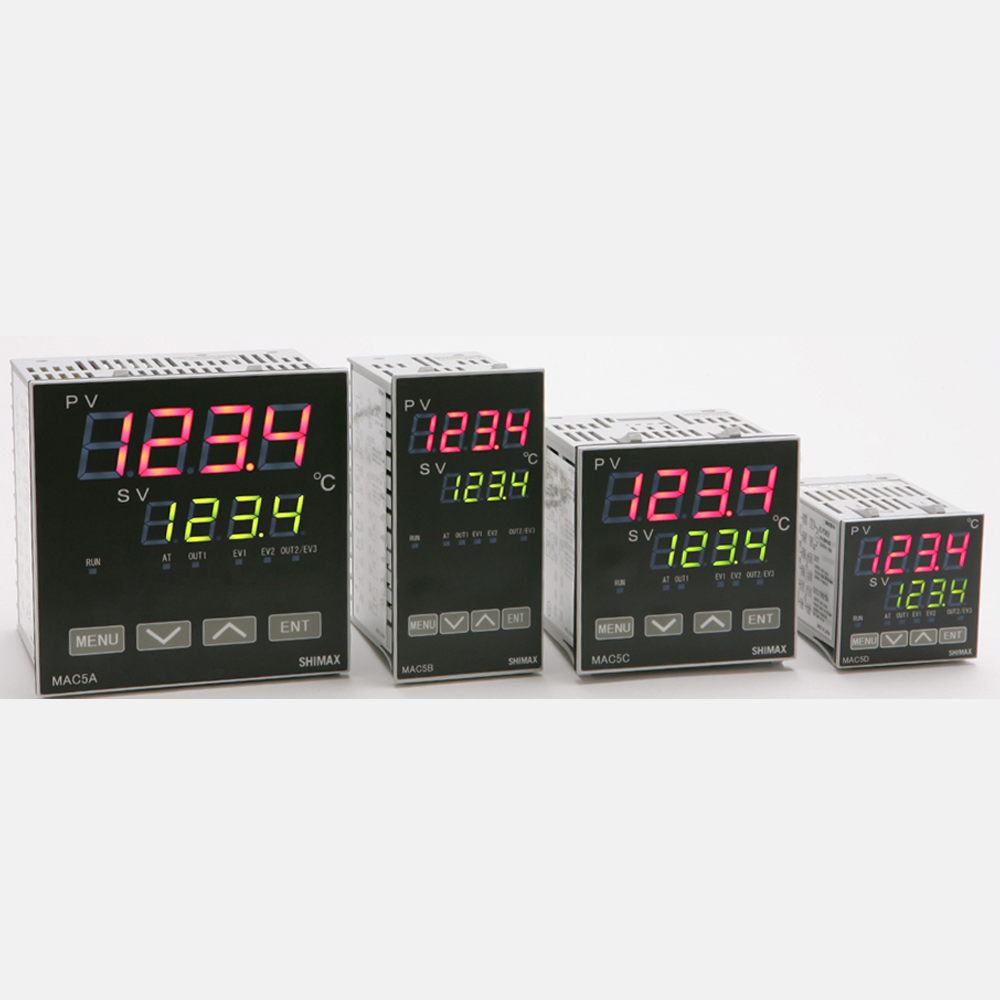

MAC5 Series

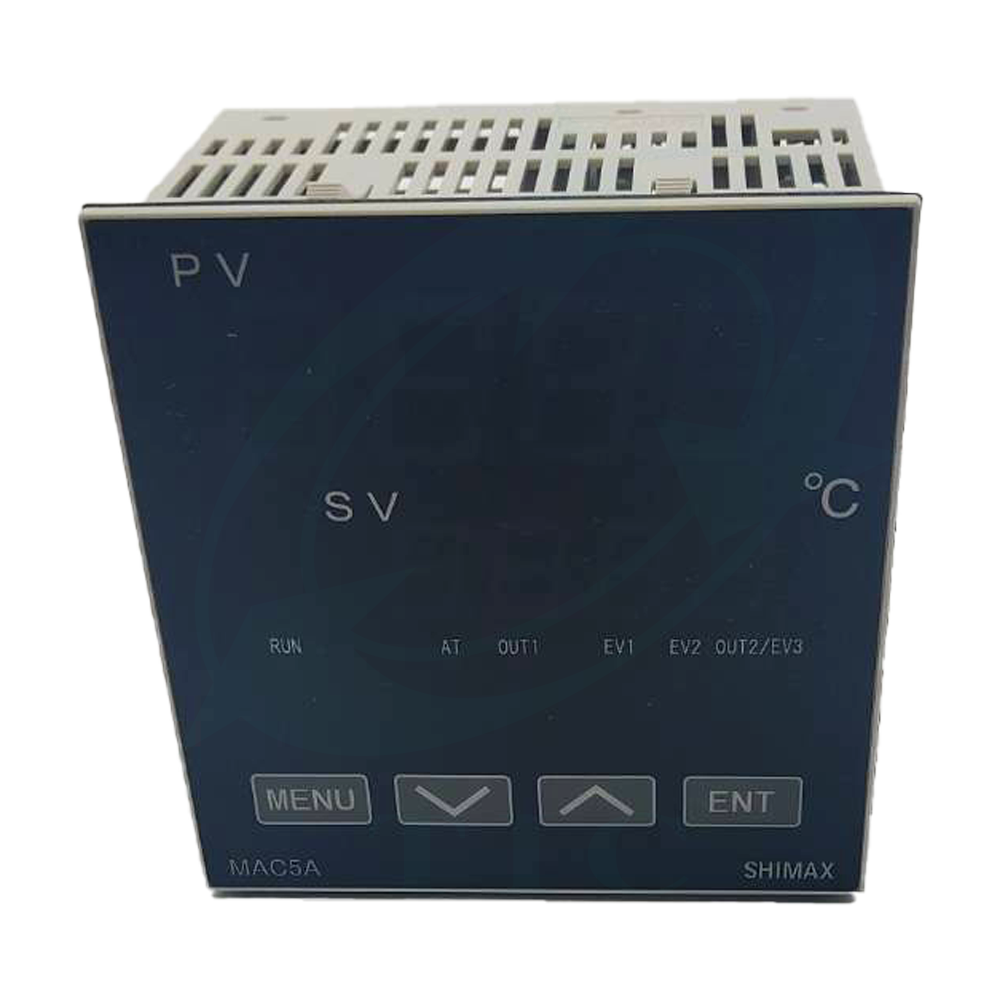

- MAC5A size 96x96mm
- MAC5B size 48x96mm
- MAC5C size 72x72mm
- MAC5D size 48x48mm
- MAC5A size 96x96mm
- MAC5B size 48x96mm
- MAC5C size 72x72mm
- MAC5D size 48x48mm

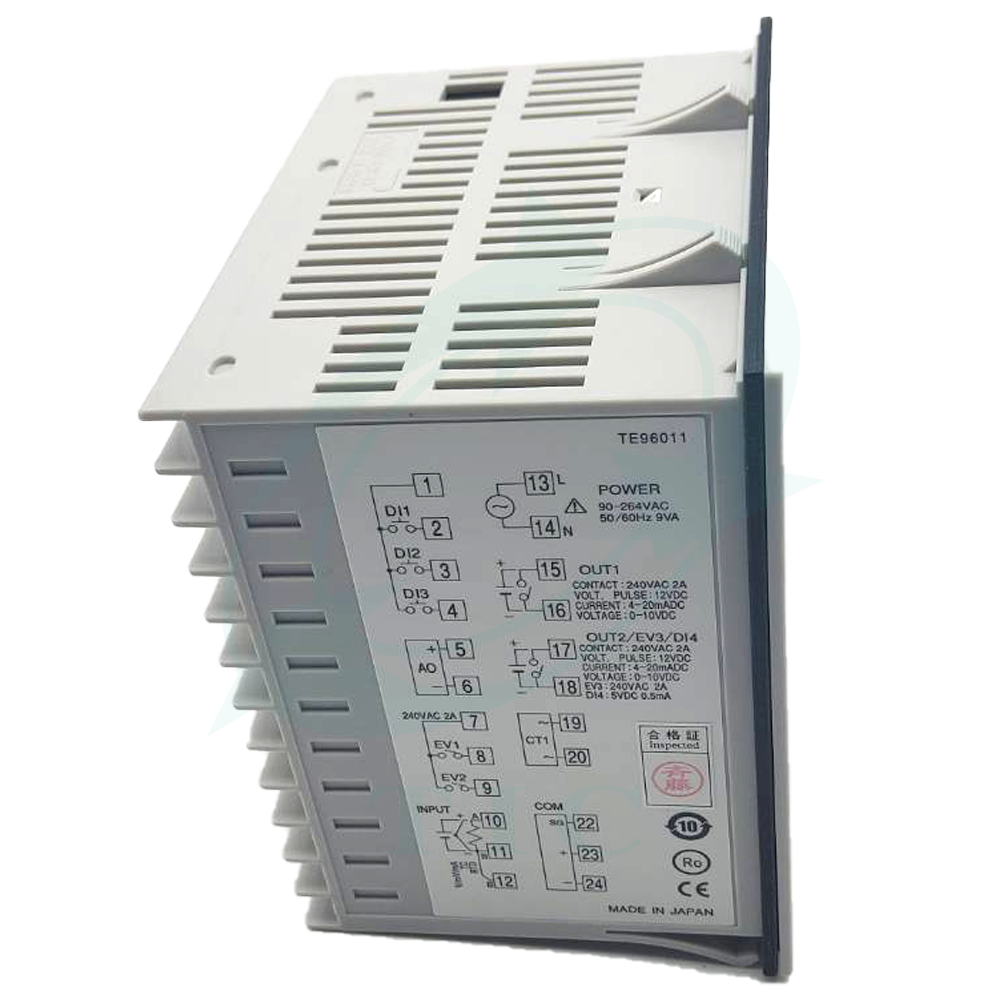

input
INPUT TYPE (K, J, T, E, R, S, U, NB, PLII, WRe5-26) R.T.D (PT100, JPT100) Voltage (0-10mV 0-20mV -10-10mV0-50mV 0-100mV)
Accuracy
±( 0.3%FS+1 digit)
temperature display
LED 7 SEGMENTS
control
PID control with auto tuning function or ON-OFF operation.
output
-
power supply
90-264 VAC
Alarm
-
details
- Low cost compact digital controller.
- Space saving design : Panel depth is 62 65 mm.
- PID control with auto tuning function or ON-OFF operation.
- Main control output : Relay contract, pulse 12VDC or current 4-20mA
- Sampling period 0.25s
- Option : Alarm output, control output 2, digital input
- Space saving design : Panel depth is 62 65 mm.
- PID control with auto tuning function or ON-OFF operation.
- Main control output : Relay contract, pulse 12VDC or current 4-20mA
- Sampling period 0.25s
- Option : Alarm output, control output 2, digital input
Data Sheet
