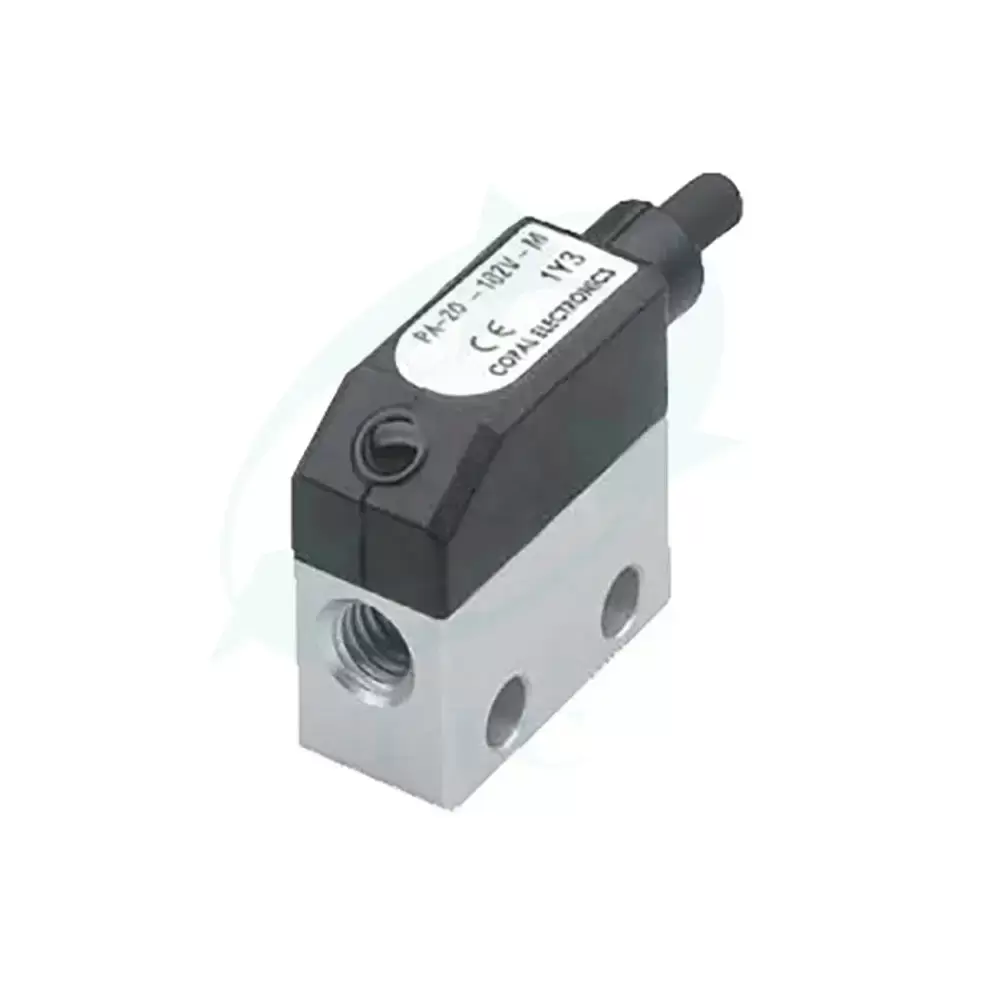

Pressure Switch
Brand : COPAL
|
Model : PA-20 Series |
Type : Level/Flow/Pressure and Solenoid valves Properties
input
-
Accuracy
-
operating temperature range
-10 to 50 °C
output
Output is analog 1~5 VDC (1 output)
temperature/humidity
-10 ~ 60 °C / 35 ~ 85% RH
power supply
10.8~30 VDC
Housing Material
-
Operating pressure
-100 ~ 0 kPa , -100 ~300 kPa
Mounting thread size
M5 male/female
details
- It is a sensor that converts the pressure into a standard signal hole.
- Can be used with non-corrosive gas
- Can be connected with a display such as model PZ-30
- Can be used with non-corrosive gas
- Can be connected with a display such as model PZ-30
Data Sheet
