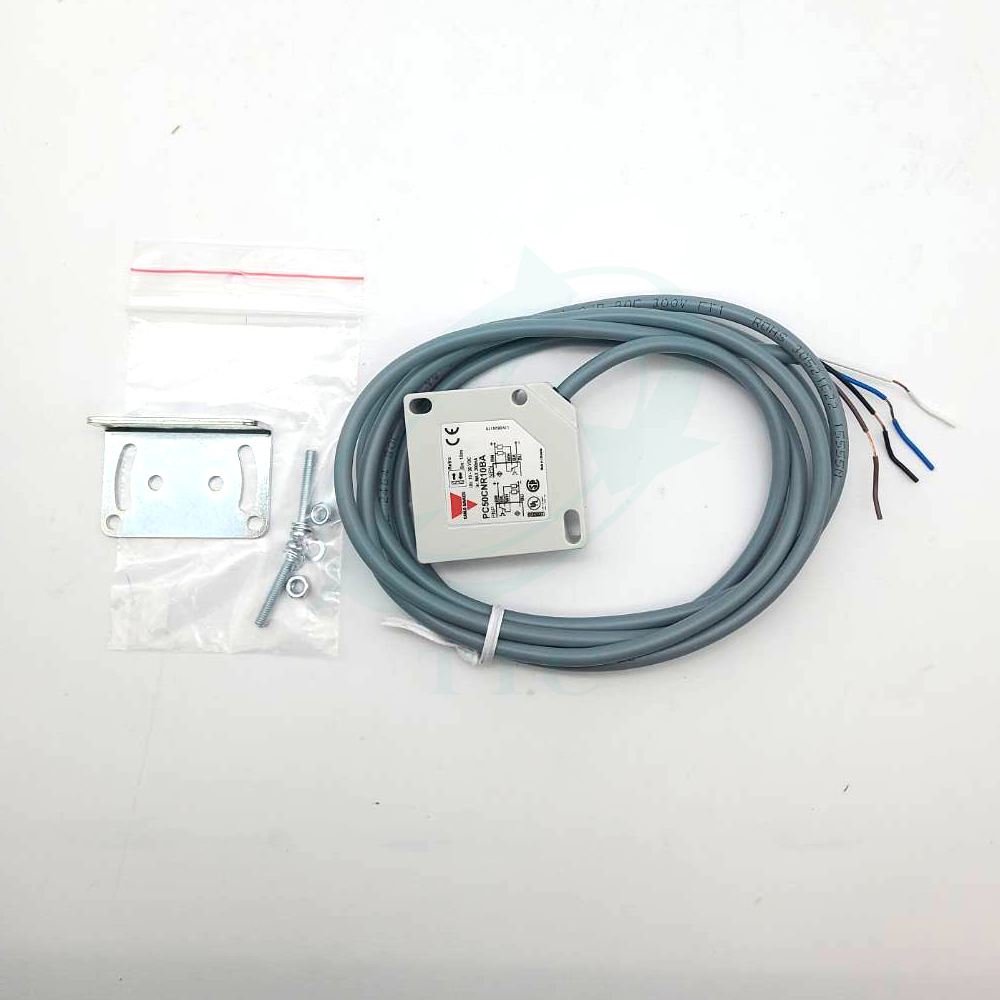

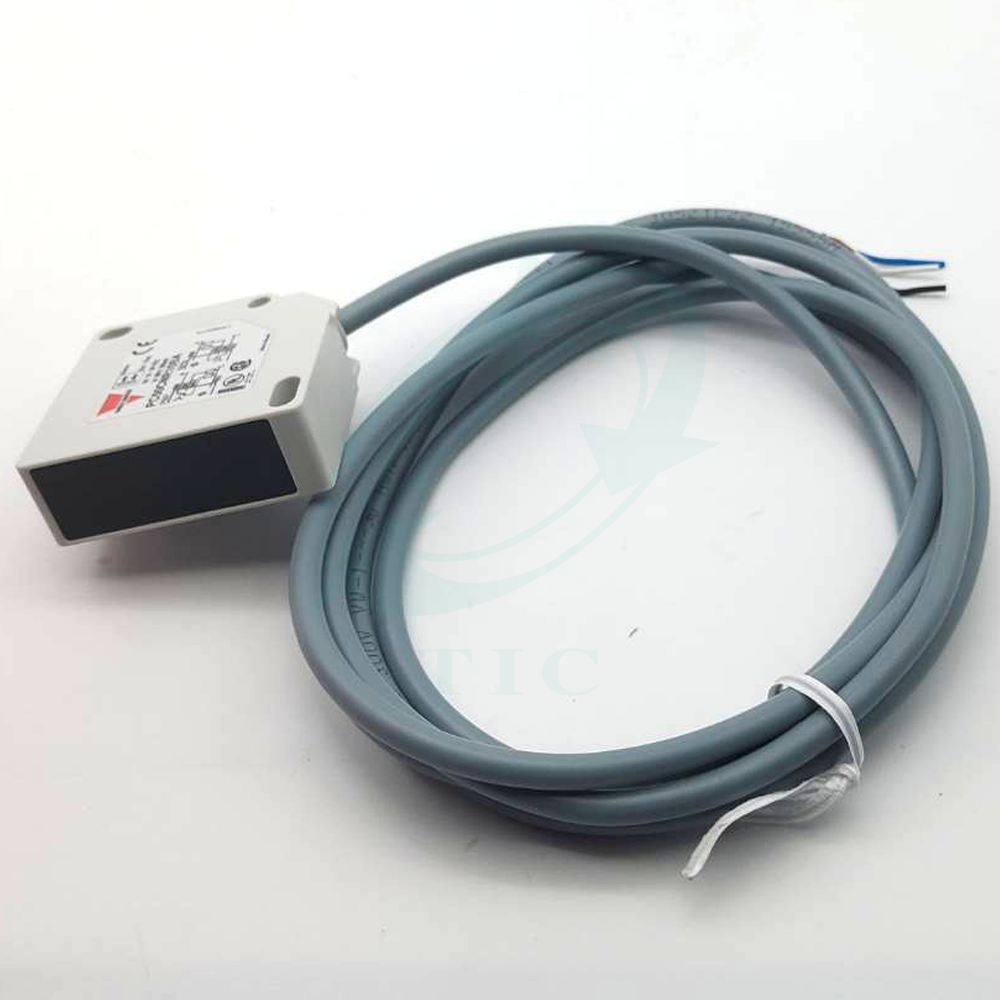

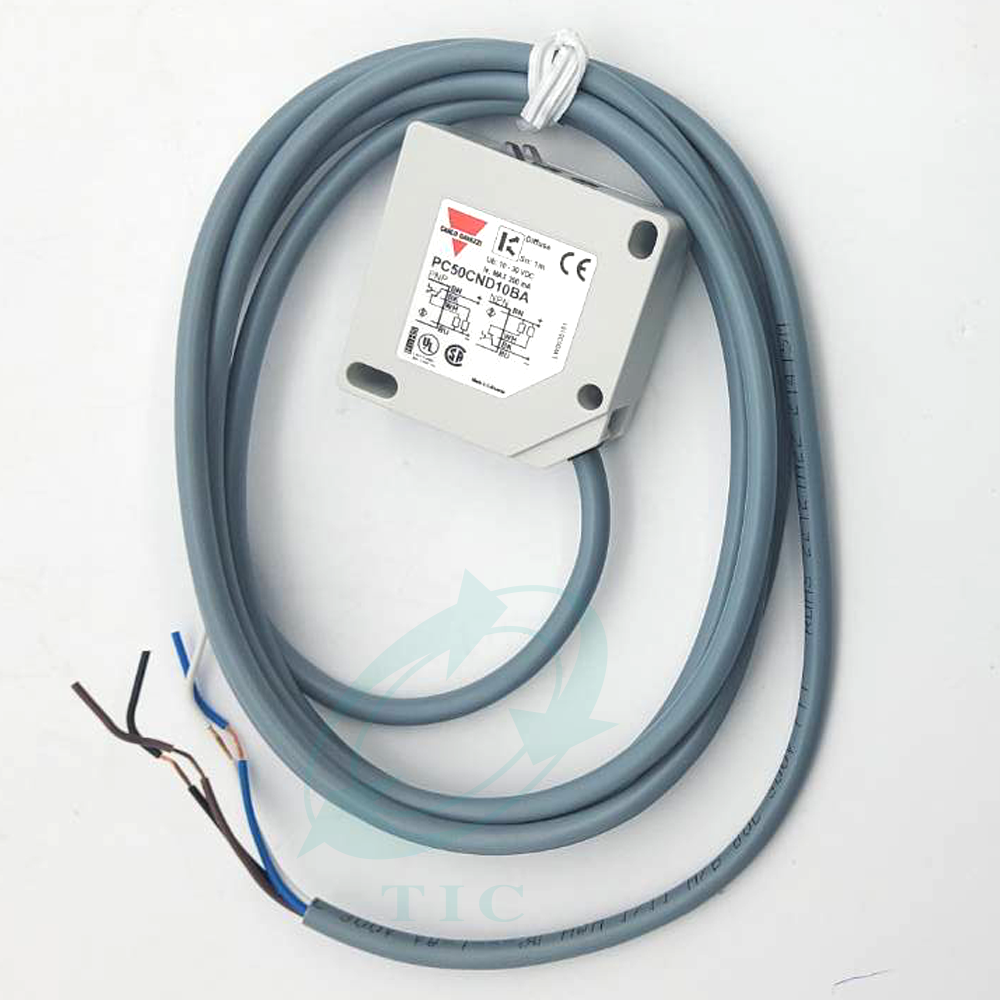

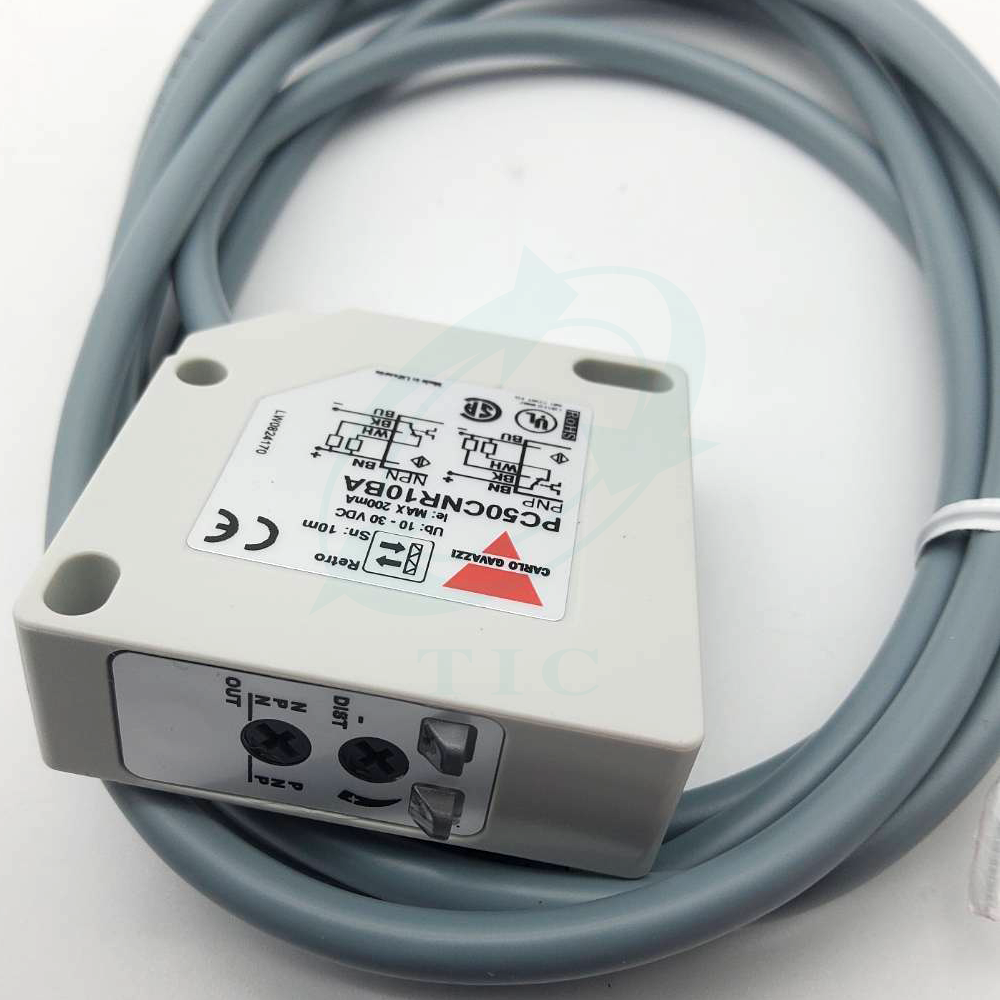

Photo Switch
Brand : Carlo Gavazzi
|
Model : PC50CNR/PC50CNP Series |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
output
NPN Or PNP
power supply
10 – 30 VDC และ 12-240 VDC/24-240 VAC
Distance
10 m.
LED
LED indication
IP
IP67
details
- Range: 20 m
- Adjustable sensitivity
- Modulated, infrared light
- Supply voltage: 10 to 30 VDC
- Output: 200 mA, NPN or PNP selectable
- Make and break switching function
- LED for output indication, signal stability and power ON
- Protection: reverse polarity, short circuit, transients
- Cable and plug versions
- High EMC immunity
- Adjustable sensitivity
- Modulated, infrared light
- Supply voltage: 10 to 30 VDC
- Output: 200 mA, NPN or PNP selectable
- Make and break switching function
- LED for output indication, signal stability and power ON
- Protection: reverse polarity, short circuit, transients
- Cable and plug versions
- High EMC immunity
Data Sheet
