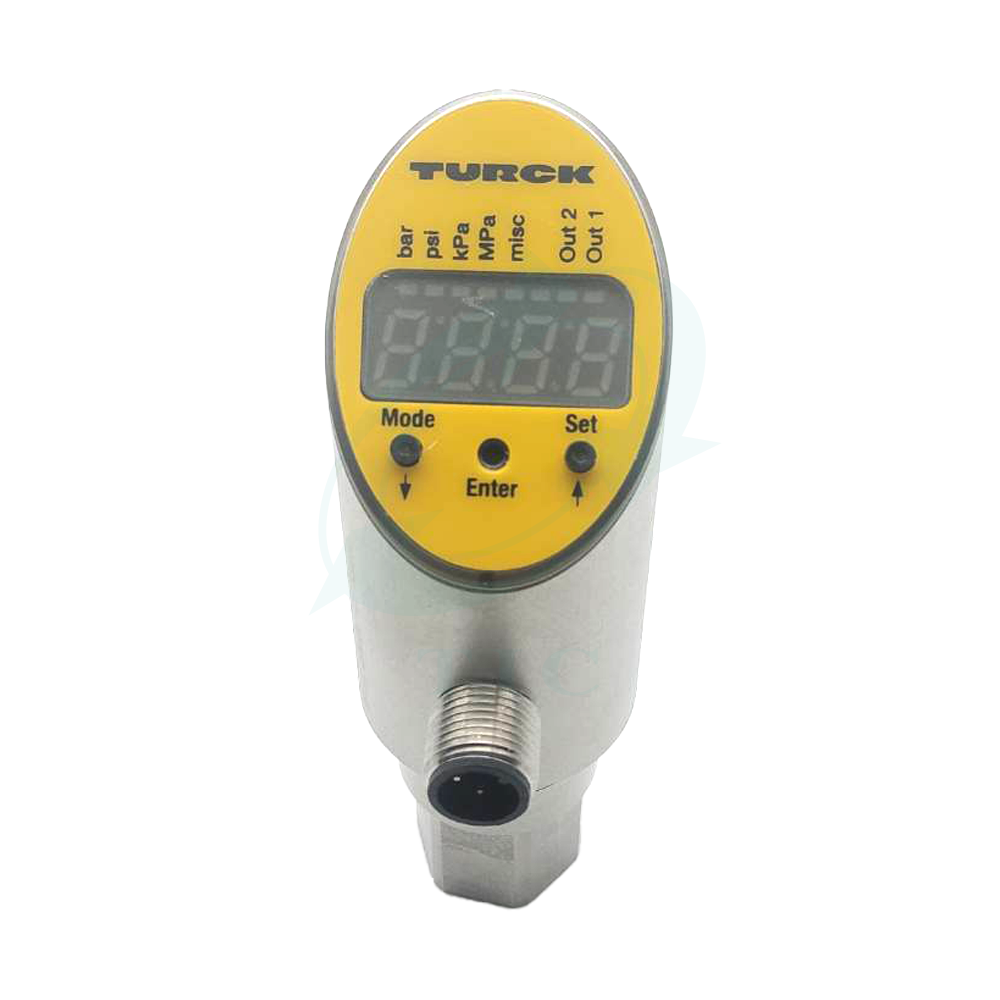

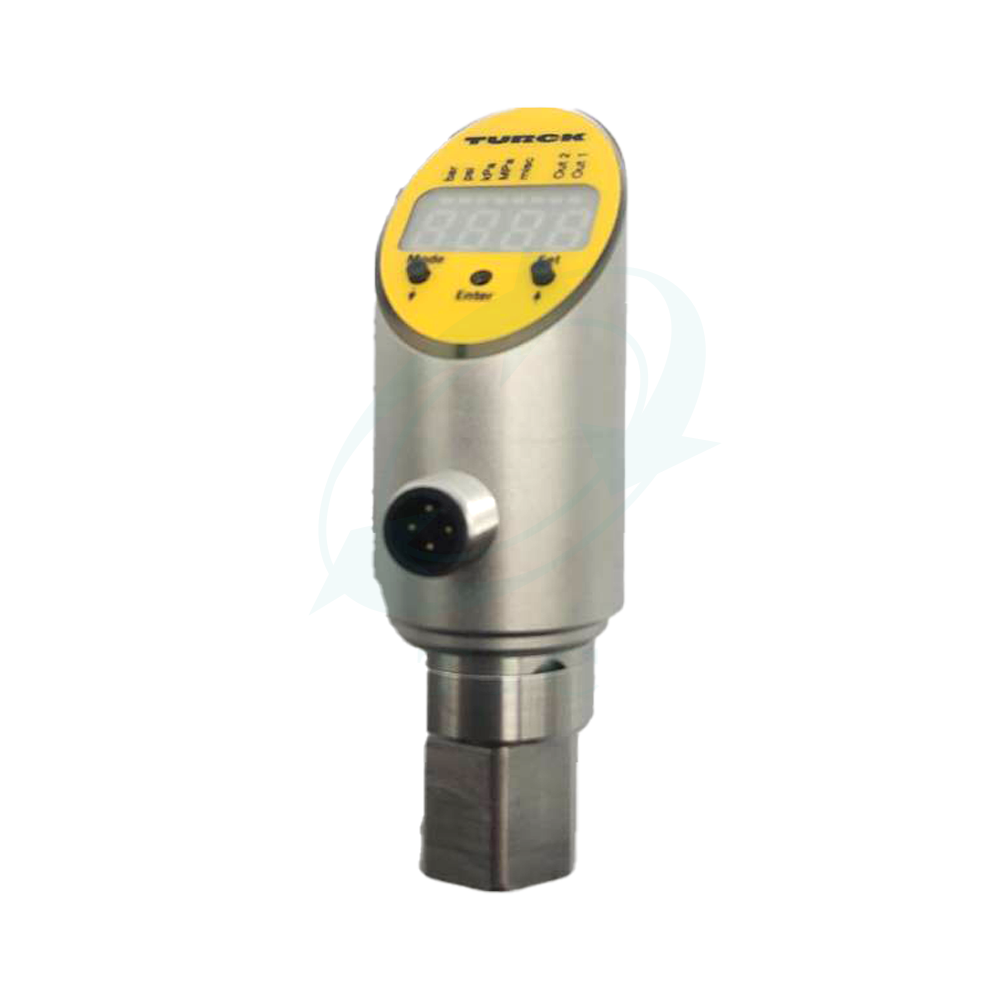

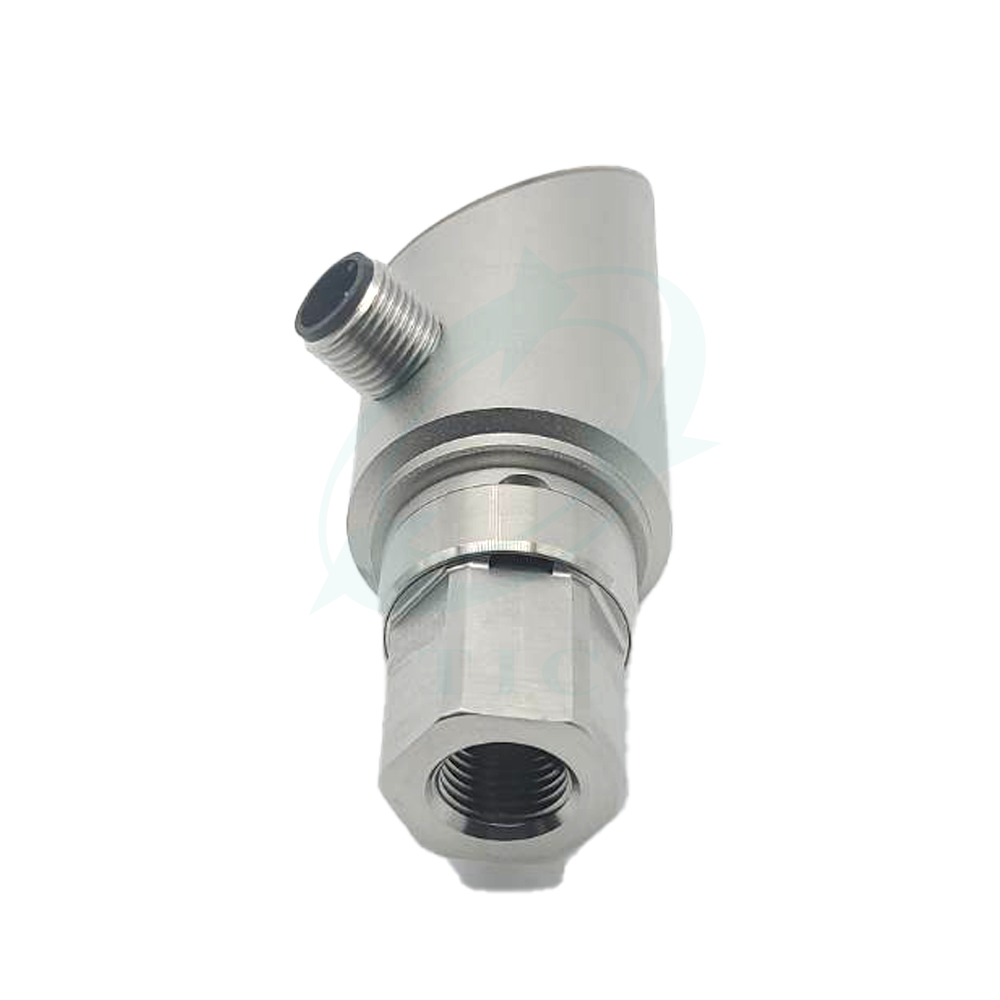

Pressure Level Transmitter
Brand : Turck
|
Model : PS Series (Current Output + Switch output) |
Type : Level/Flow/Pressure and Solenoid valves Properties
operating temperature range
-25…+70°C
output
- Output is IO-Link , Current output (3-wire) , Switching output
- Selectable NO/NC contact, PNP/NPN output
- Analog output 4…20/ 0…20 mA (3-wire)
- Selectable NO/NC contact, PNP/NPN output
- Analog output 4…20/ 0…20 mA (3-wire)
Measuring range
-
power supply
18 to 30VDC
Housing Material
Stainless-steel/Plastic , V2A (1.4305)
Operating pressure
0, 1, 2.5, 10, 25, 40, 100, 250, 400, 600 Bar
Mounting thread size
G1/4”
IP
IP67
details
- cylindrical shape
- The display is digital.
- Can be displayed in units of (bar, psi, kPa, MPa, misc to )
- Can prevent programming by pressing the button to lock the function.
- The display is digital.
- Can be displayed in units of (bar, psi, kPa, MPa, misc to )
- Can prevent programming by pressing the button to lock the function.
Data Sheet
