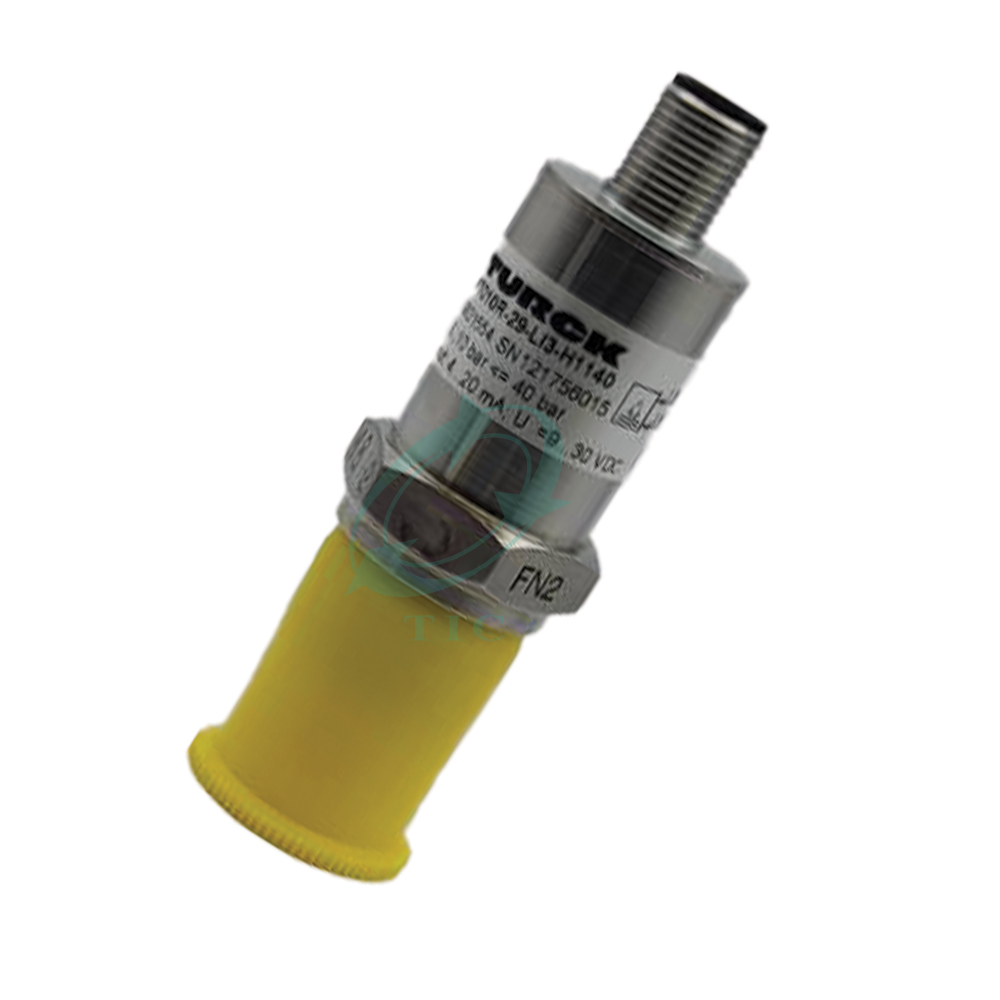

Pressure Level Transmitter
Brand : Turck
|
Model : PT010R-29-LI3-H1140 |
Type : Level/Flow/Pressure and Solenoid valves Properties
operating temperature range
-25…+70°C
output
Analog Output 4 - 20V 2-wire
Measuring range
0 – 145.04 psi, 0-1 Mpa
power supply
18 to 30VDC
Housing Material
Stainless-steel/Plastic , V2A (1.4305)
Operating pressure
0 - 10 Bar
Mounting thread size
G1/4”
IP
IP67
details
- The appearance of the housing has no display screen.
- Connect the cable with a separate plug, size M12
- outside temperature -25…+85 °C
- Connect the cable with a separate plug, size M12
- outside temperature -25…+85 °C
Data Sheet
