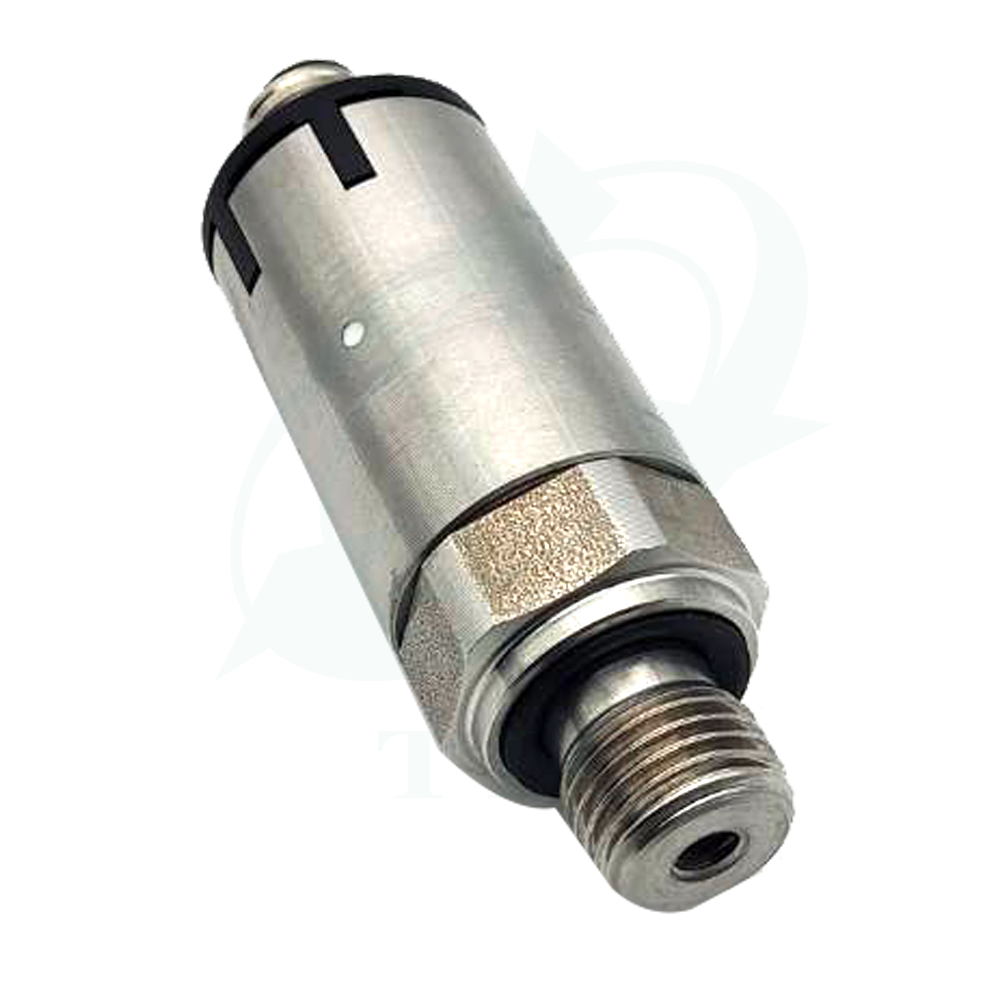

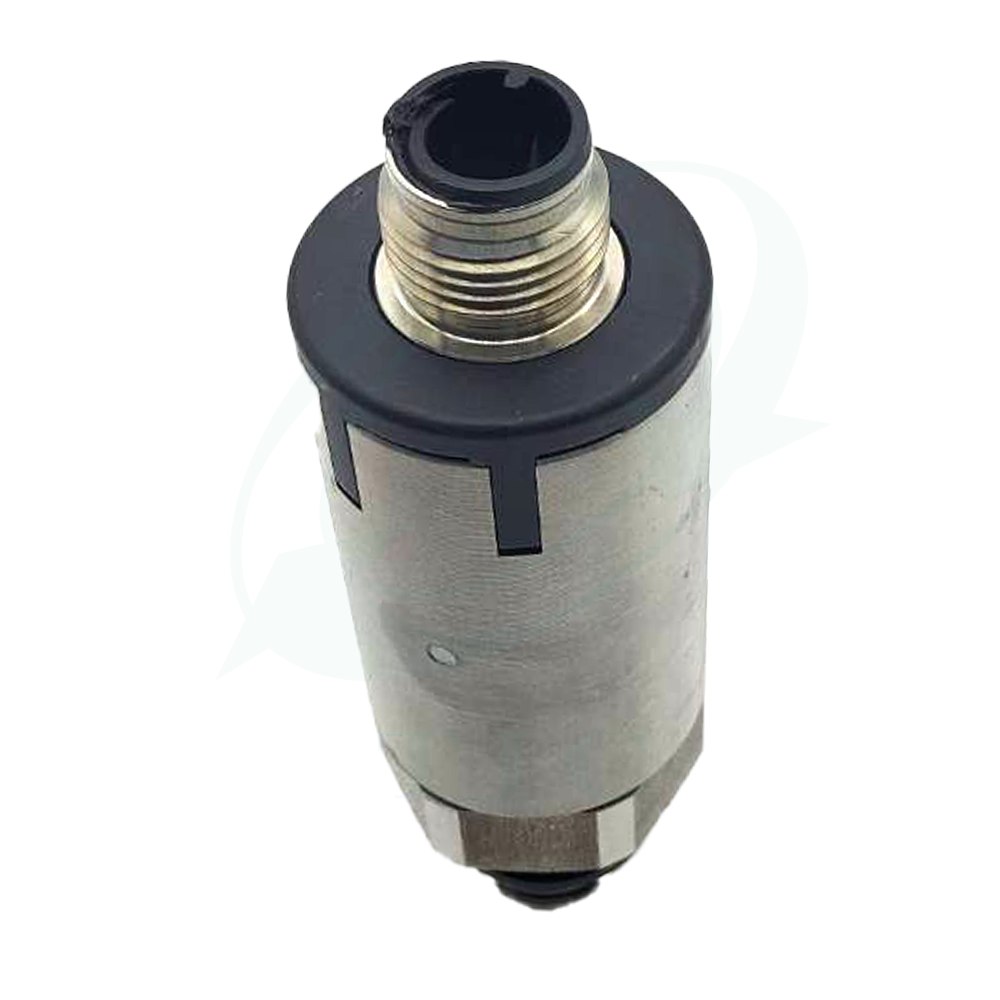

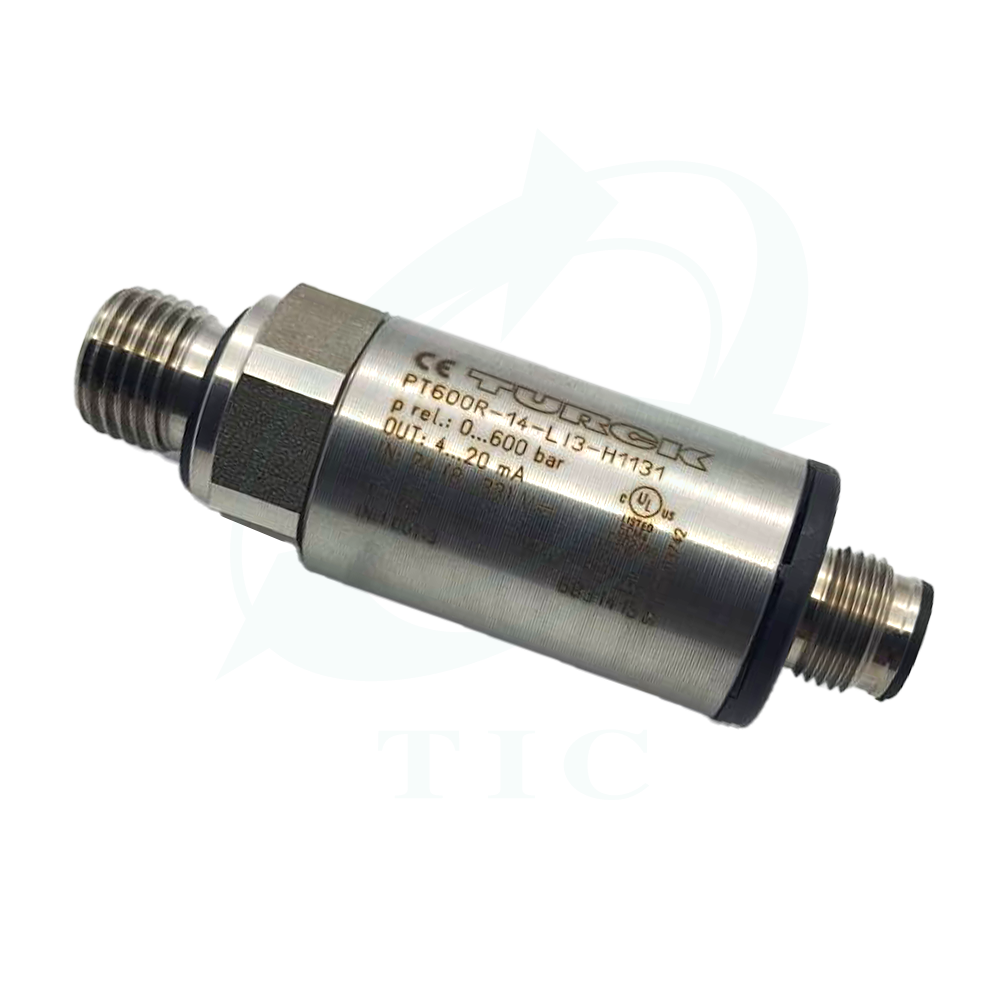

Pressure Level Transmitter
Brand : Turck
|
Model : PT600R-14-LU2-H1131 |
Type : Level/Flow/Pressure and Solenoid valves Properties
operating temperature range
-25…+70°C
output
3 wire analog 0 - 10V output
Measuring range
0 - 8702 psi, 0-60 Mpa
power supply
18 to 30VDC
Housing Material
Stainless-steel/Plastic , V2A (1.4305)
Operating pressure
0 - 600 bar rel.
Mounting thread size
G1/4”
IP
IP67
details
The pressure sensors in the PT ... -1 series are powered by piezo-resistive ceramic measuring cells, where the ceramic diaphragm is proportional to the working pressure. It depends on the type of sensor used.
- The appearance of the housing has no display screen.
- Connect the cable with a separate plug, size M12
- The appearance of the housing has no display screen.
- Connect the cable with a separate plug, size M12
Data Sheet
