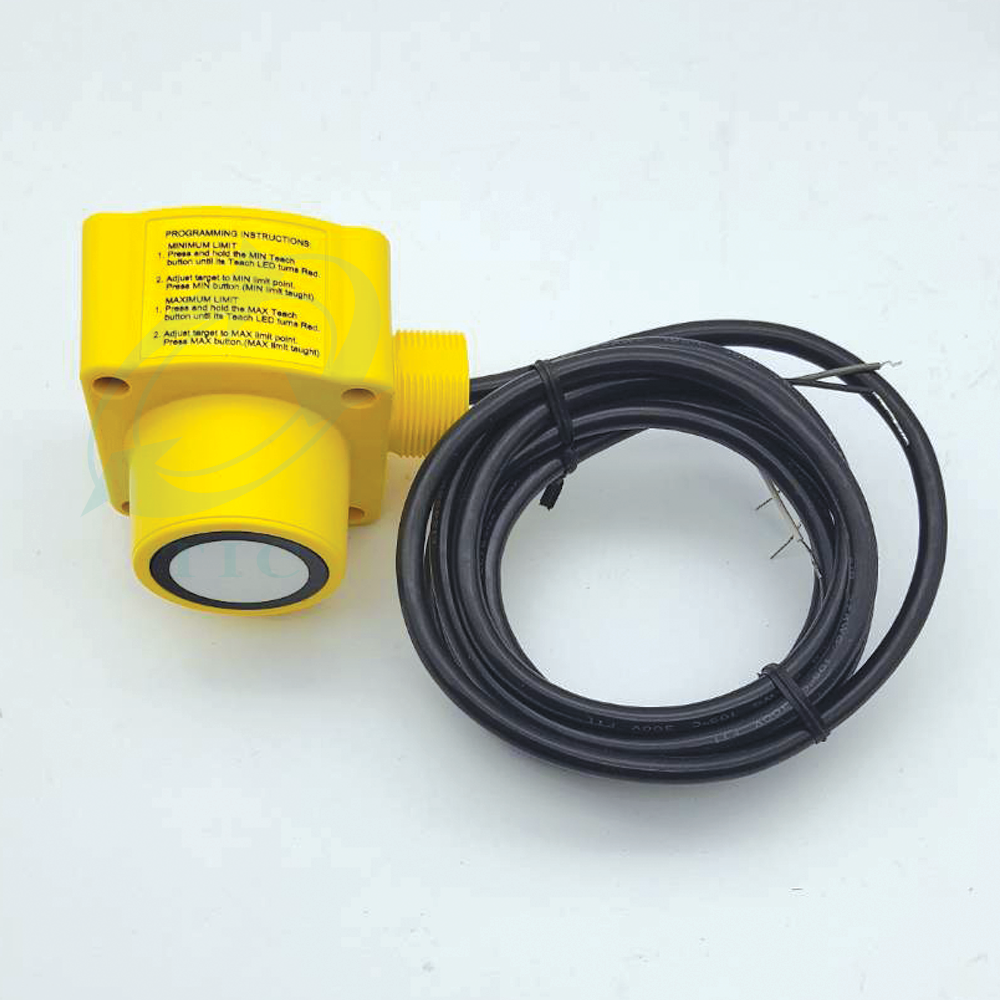

Ultrasonic Sensor
Brand : Banner
|
Model : QT50ULB |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
body size
50X50 mm.
operating temperature range
-20….+70C
output
Analogue
power supply
10...30 VDC
Pros
Easy-to-use, highly accurate leveling device
Distance
200mm ถึง 8 M
IP
IP67
Housing Material
-
Measuring range
-
details
- Long-range ultrasonic sensors with TEACH-mode programming
- Selectable 0 to 10 V dc or 4 to 20 mA output, selected via DIP switch
- Access to bank of 8 DIP switches through sealed cover for superior user functionality
- Unique housing design allows for multiple mounting configurations
- Choose models with integral unterminated 2 m (6.5 ft) or 9 m (30 ft) cable, or with Ministyle
or M12/Euro-style quick-disconnect connection
- Wide operating range of −20 °C to +70 °C (−4 °F to +158 °F)
- Selectable 0 to 10 V dc or 4 to 20 mA output, selected via DIP switch
- Access to bank of 8 DIP switches through sealed cover for superior user functionality
- Unique housing design allows for multiple mounting configurations
- Choose models with integral unterminated 2 m (6.5 ft) or 9 m (30 ft) cable, or with Ministyle
or M12/Euro-style quick-disconnect connection
- Wide operating range of −20 °C to +70 °C (−4 °F to +158 °F)
Data Sheet
