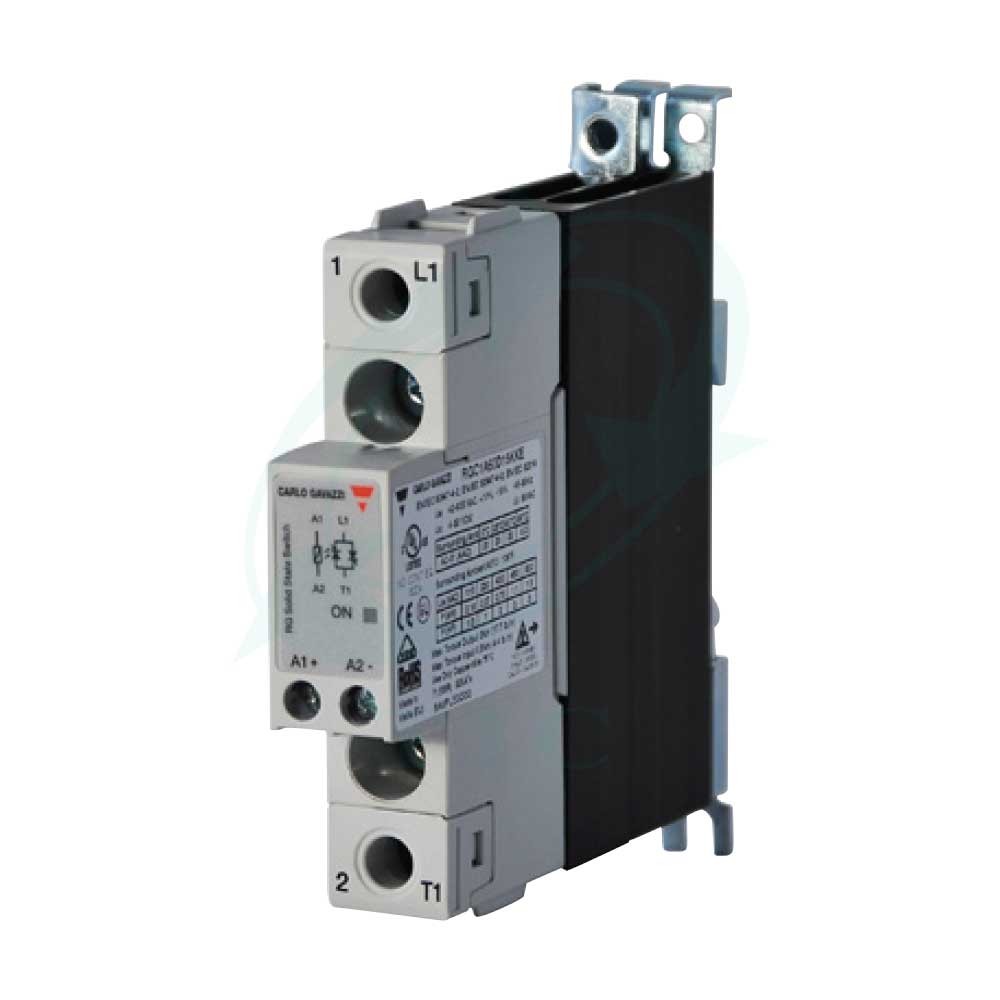

Relay/PCB mounting solid state relay
Brand : Carlo Gavazzi
|
Model : RGC1A series |
Type : Solid state relay with heat sink Properties
operating temperature range
0 °C to 70 °C
IP
IP 20
details
- It is a Solid State Relay for use with AC loads.
- There is an LED to show the working results.
- Control input 3-32 VDC, 20-275 VAC
- There is an LED to show the working results.
- Control input 3-32 VDC, 20-275 VAC
Current rating
15 AAC, 20 AAC, 25 AAC, 30 AAC, 40 AAC, 43 AAC, 60 AAC, 65 AAC, 85 AAC
output
23: 230 VAC +10% -15%, 800 Vp
60: 410 - 660 VAC +10% - 15%, 1200 Vp
60: 410 - 660 VAC +10% - 15%, 1200 Vp
Data Sheet
