-40 to 80 C

1 Output

85 A

IP20

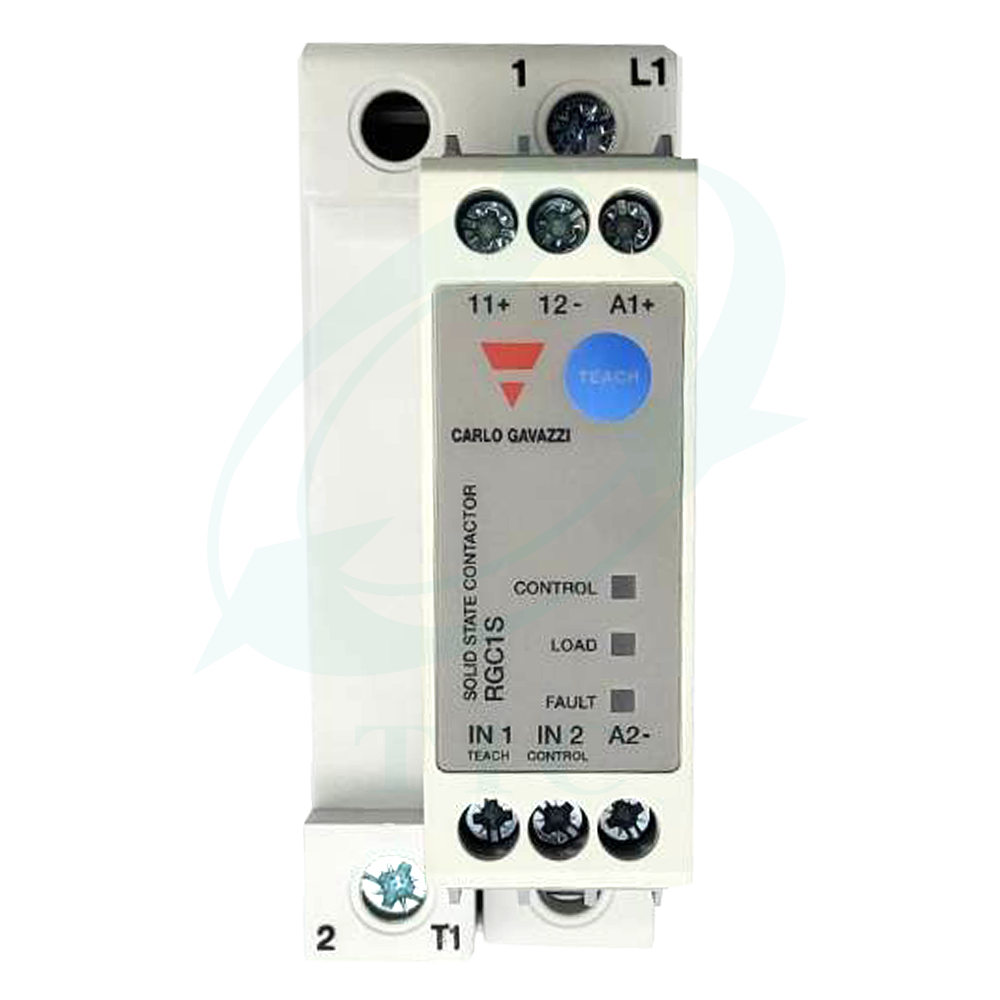

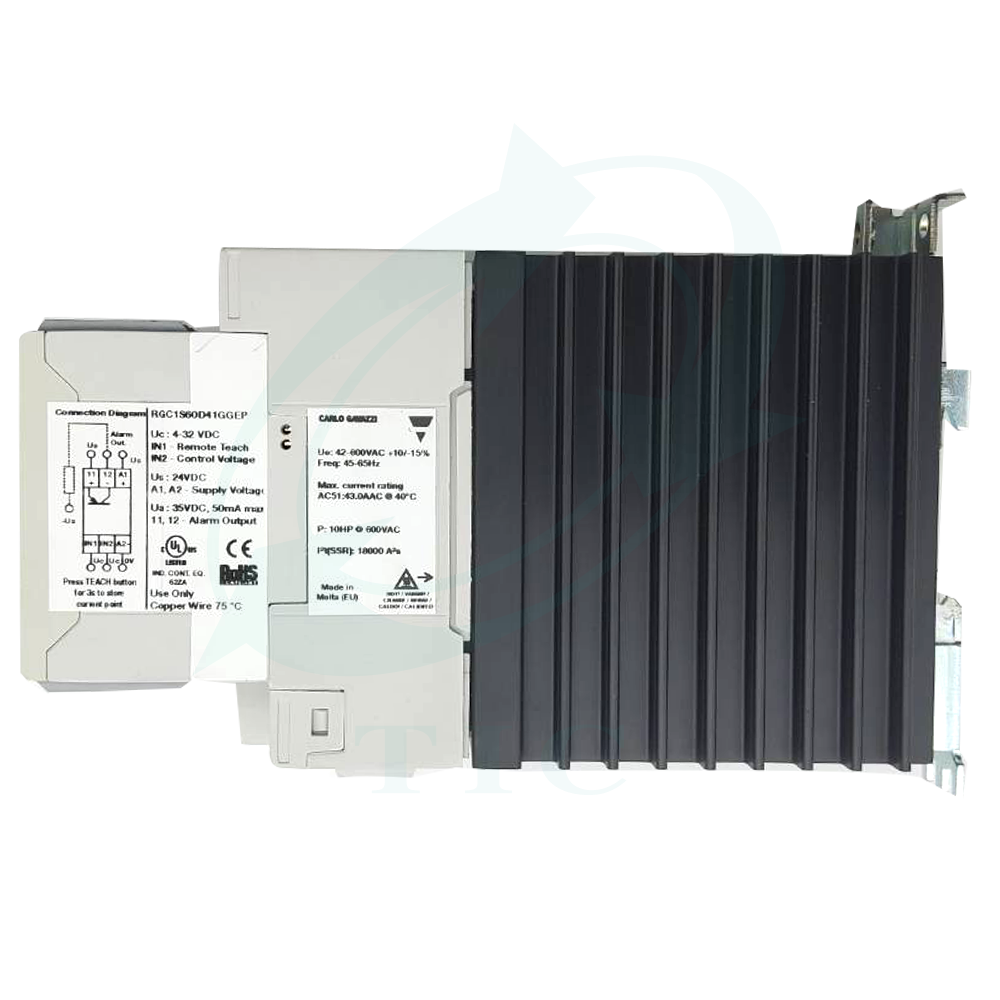

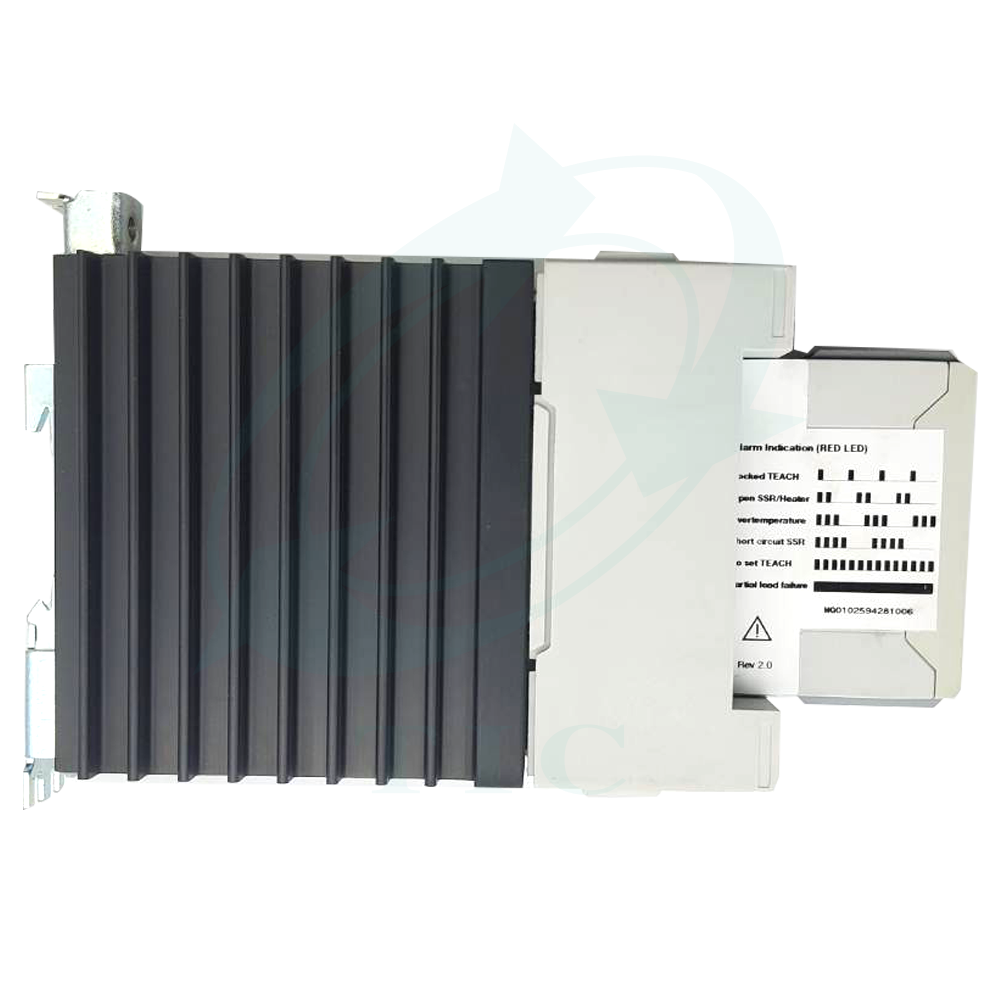

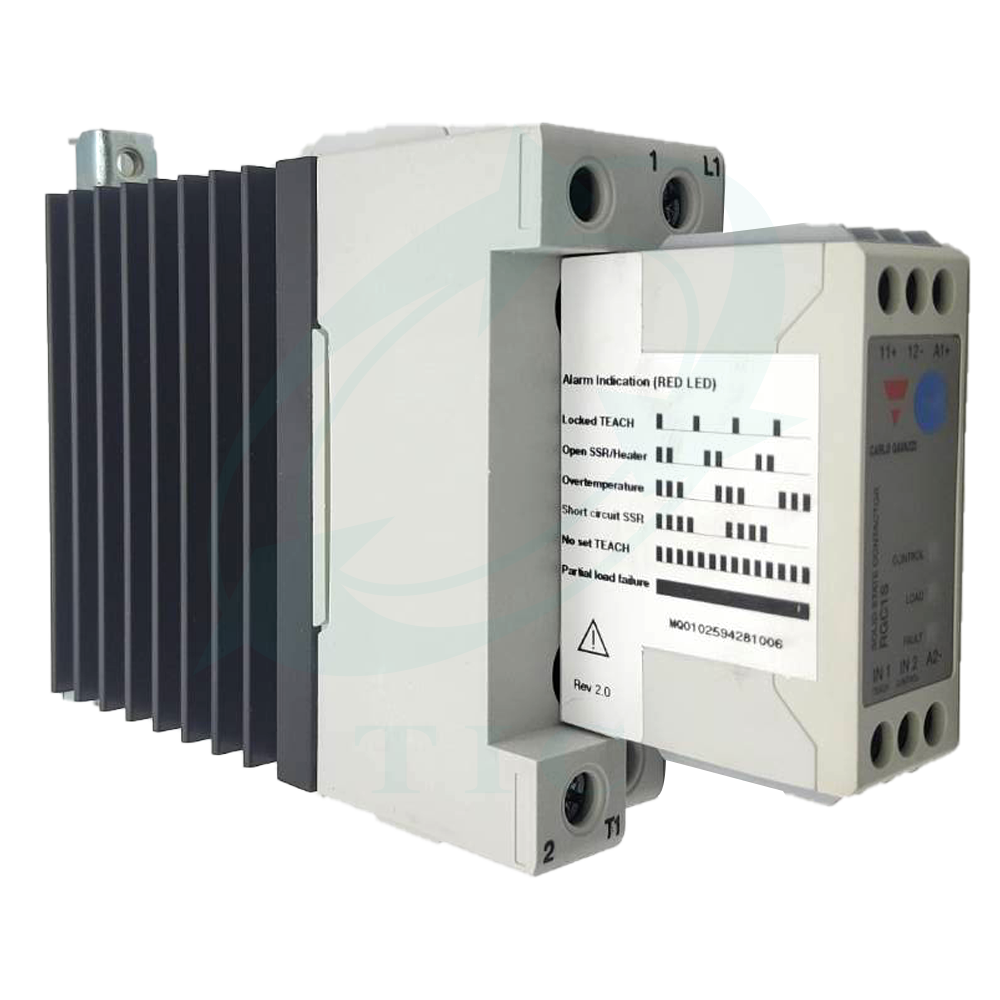

Very Small Solid state relay :SSR Integrated Heatsink
-Use for control Heater Load : 1 Phase 230VAC, 600VAC, 690VAC
- Zero cross or Instant on switching SSR for Industrial
-Rated operational current: 25 A , 50A, 75A, 85A
- Minimum current I²t for fusing (t=10ms) 18000 A²s for I²t
-Control input : 3-32VDC OR 20-275VAC, 24-190VDC
-Rated operational voltage: 600 VAC OR 1600 Vp up to model
- Integrated voltage transient protection with varistor
- Standard and According to UL, cUL, CSA , CE , IEC/EN60947-4-2, IEC/EN60947-4-3
- DIN-Rail installation standard
- Weight approx .155 g
