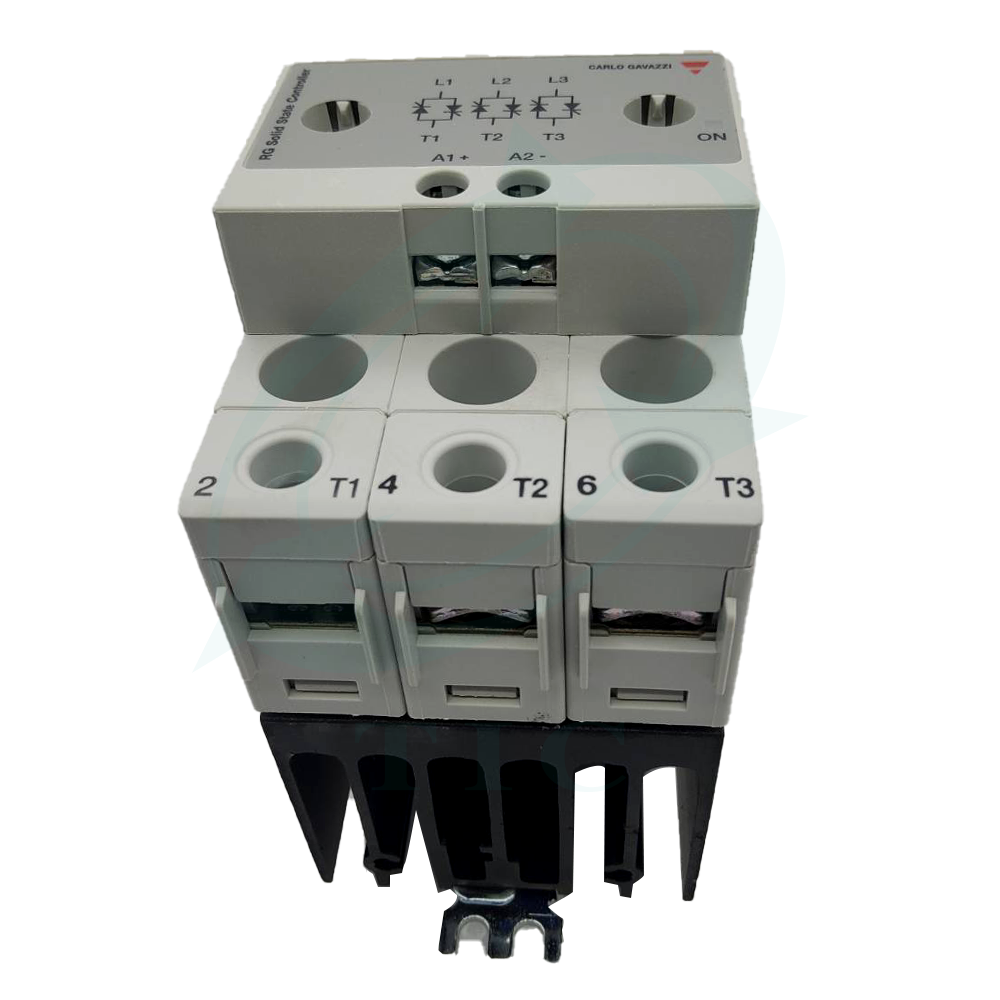

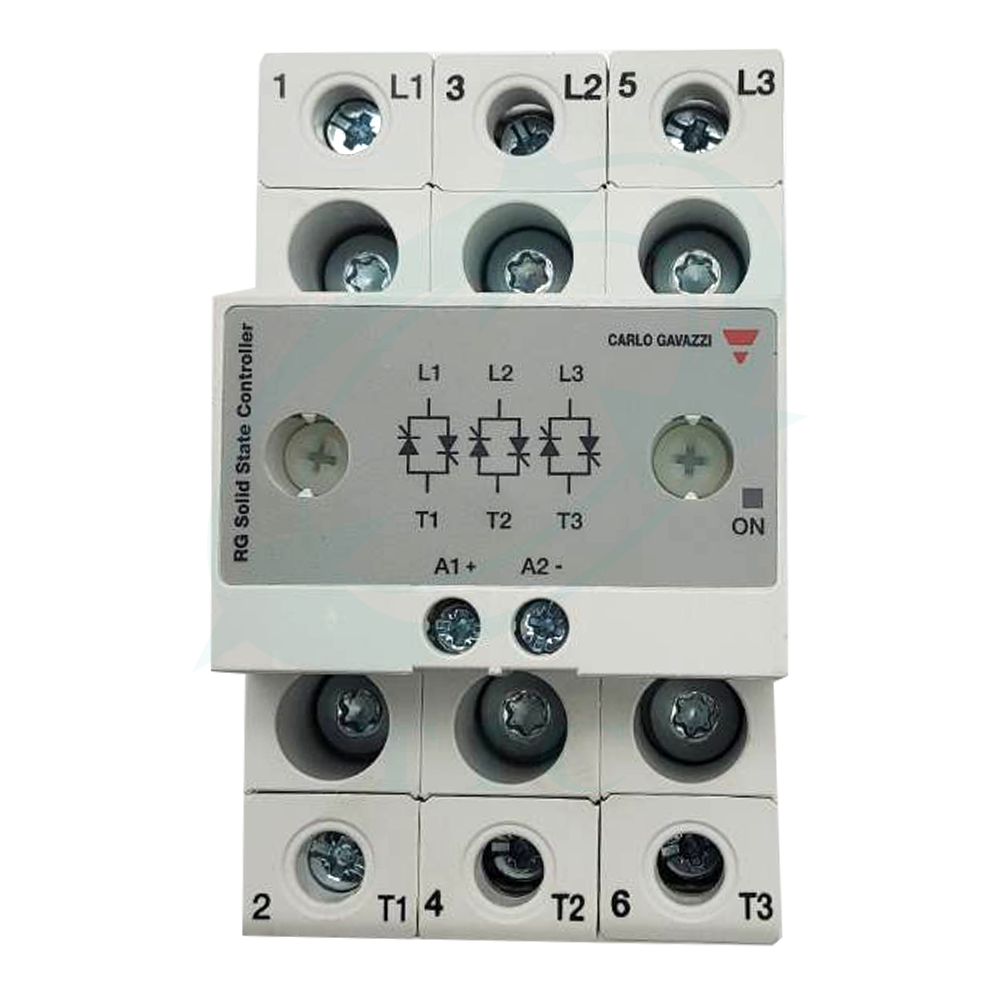

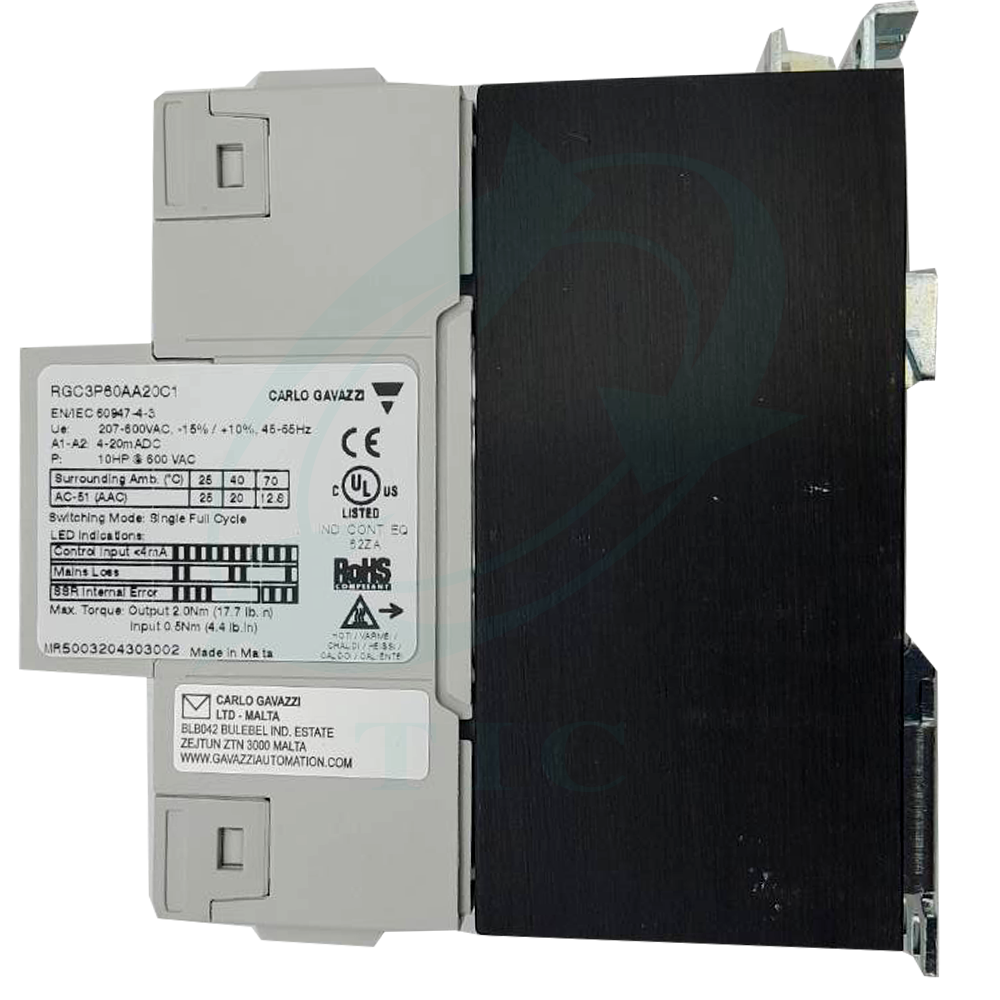

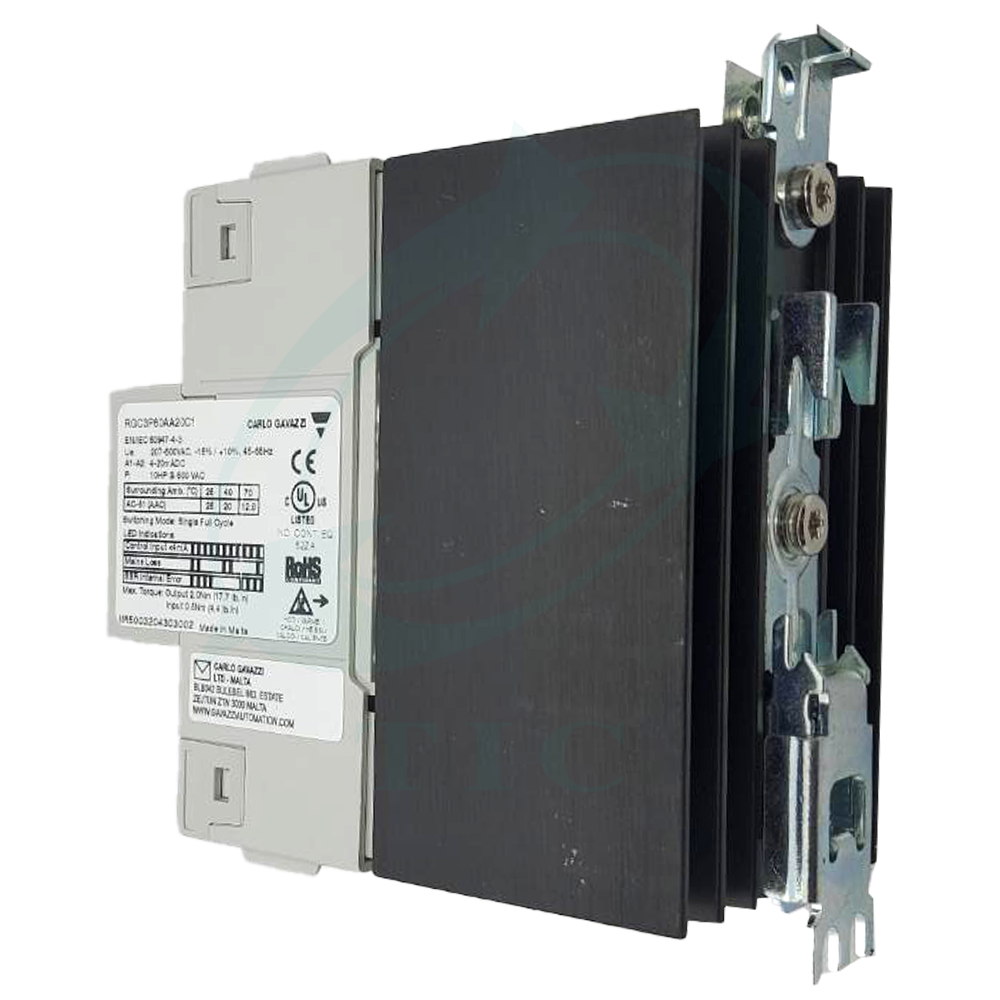

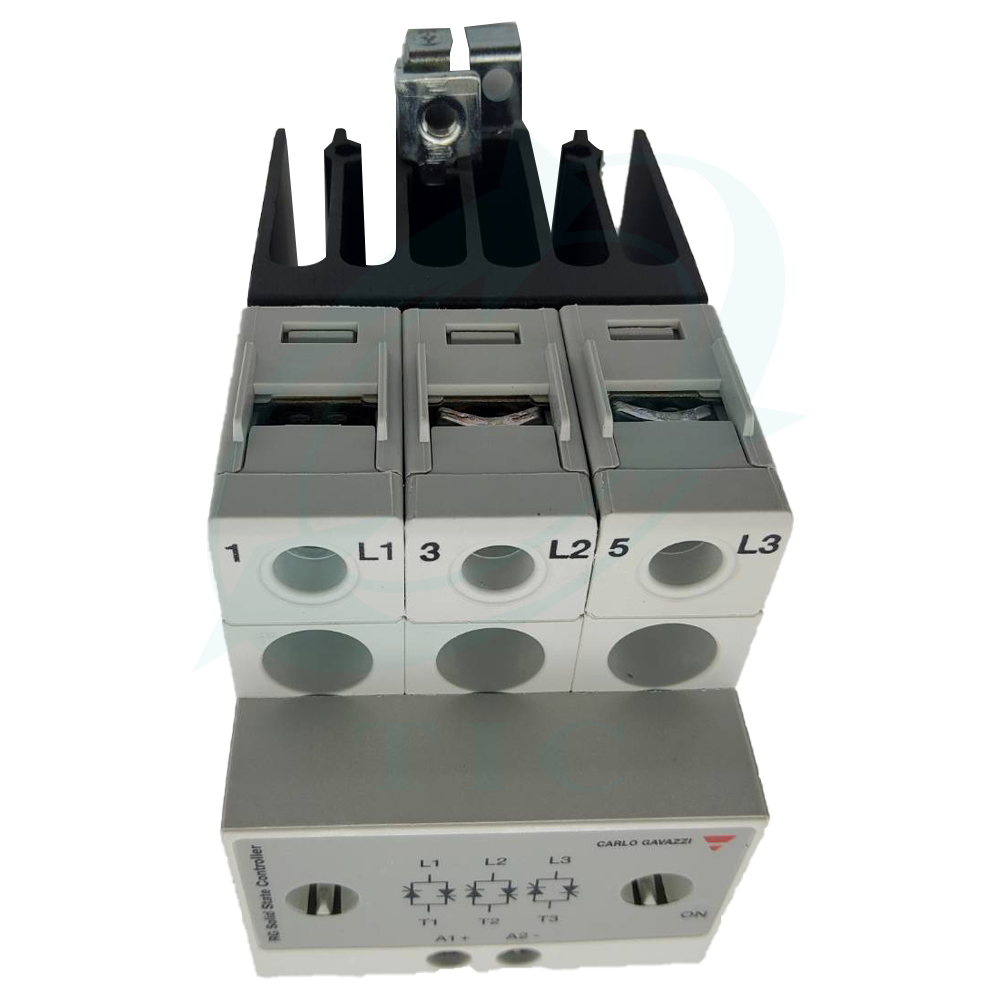

Relay/PCB mounting solid state relay
Brand : Carlo Gavazzi
|
Model : RGC3P-Series |
Type : Solid state relay with heat sink Properties
operating temperature range
-40 to 70 C
IP
IP 20
details
- Solid state relay, full 3 phase, 4-20mA input, cheap and durable from Italy
- Dimmable accelerator control system (Proportional Control)
- Available in phase scalable formats such as angle or distributed full cycles (1, 4 or 16 full cycles).
- There is an EMR output system and a display light when the alarm occurs.
- Control input 0-20mA, 4-20mA, 12-20mA, 0-5V, 1-5V, 0-10V.
- Can prevent Transient because it has built-in varistor
- Easy to install, DIN-Rail type
- Dimmable accelerator control system (Proportional Control)
- Available in phase scalable formats such as angle or distributed full cycles (1, 4 or 16 full cycles).
- There is an EMR output system and a display light when the alarm occurs.
- Control input 0-20mA, 4-20mA, 12-20mA, 0-5V, 1-5V, 0-10V.
- Can prevent Transient because it has built-in varistor
- Easy to install, DIN-Rail type
output
60: 42 - 660 VAC, 1200 Vp
Data Sheet
