-10°c to +100°c

None

None

IP65

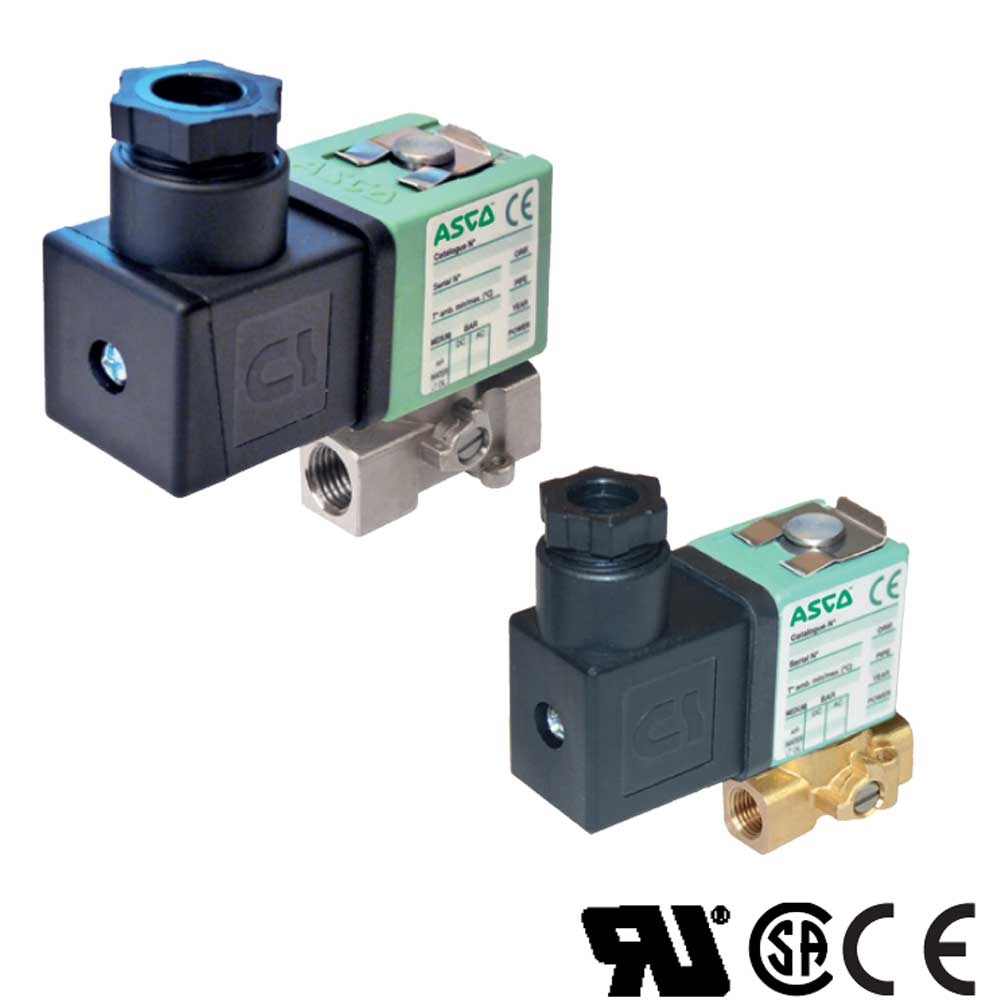

- SOLENOID VALVE direct operated 1/8
- SCG256 Series Solenoid valve 2/2
-Can be use : air, inert gas, water, oil
- Body : Brass, stainless steel
-ELECTRICAL CHARACTERISTICS Coil insulation class F
-Connector Spade plug (cable Ø 6-8 mm or Ø 6-10 mm)
-Connector specification DIN 43650, 11 mm, industry standard B (type 01) or ISO 4400 / EN 175301-803, form A (type 02)
-Electrical safety IEC 335
-Electrical enclosure protection Moulded IP65 (EN 60529)
-Standard voltages DC (=) : 24V - 48V
(Other voltages and 60 Hz on request) AC (~) : 24V - 48V - 115V - 230V / 50 Hz (Have to Order)
-operator ambient temperature range (TS) :-10°c ถึง +60°c
