output, withstand current 10 (6) A

230 VAC (50Hz) ± 10%

IP 55

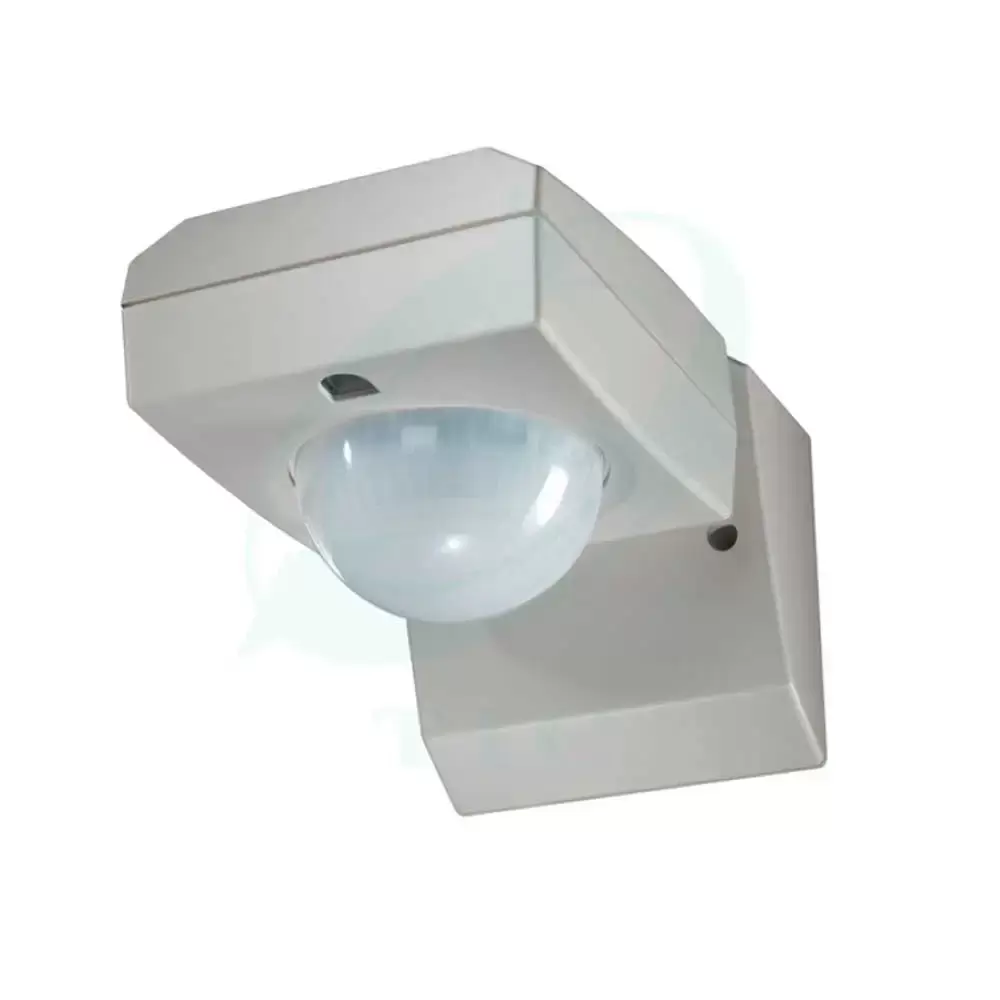

Motion detection (PIR)
- 220 degree monitoring angle
- The sensor head can be horizontally adjusted by +,- 90 degrees.
Vertical 90 degrees up and 25 degrees down
- Mixed metering suitable for the control of incandescent and halogen lamps.
Voltage : 230 V AC
Frequency : 50-60 Hz
Power consumption : ca. 0,9 W
Number of channels: 1
Installation type: wall and ceiling mounting
Brightness setting range : 2-2000 LX
Capacity : 16 A (at 230 V AC, cos φ = 1), 10 A (at 230 V AC, cos φ = 0.6), 8 AX (at 230 V AC, cos φ = 0.3)
Detection angle: 220 degrees
Installation height: 2-4 meters
Delay switch light : 1 second -20 minutes
Lamp load : 2300 W
Fluorescent lamp load : 900 VA
Fluorescent lamp load : 400 VA 42 μF
Load of fluorescent lamps : 2300 W
Lamp : incandescent / halogen lamp, incandescent lamp, energy-saving lamp, LED light
Ambient temperature: -25 ° C ... +55 ° C
