Encoder
Brand : Kubler
|

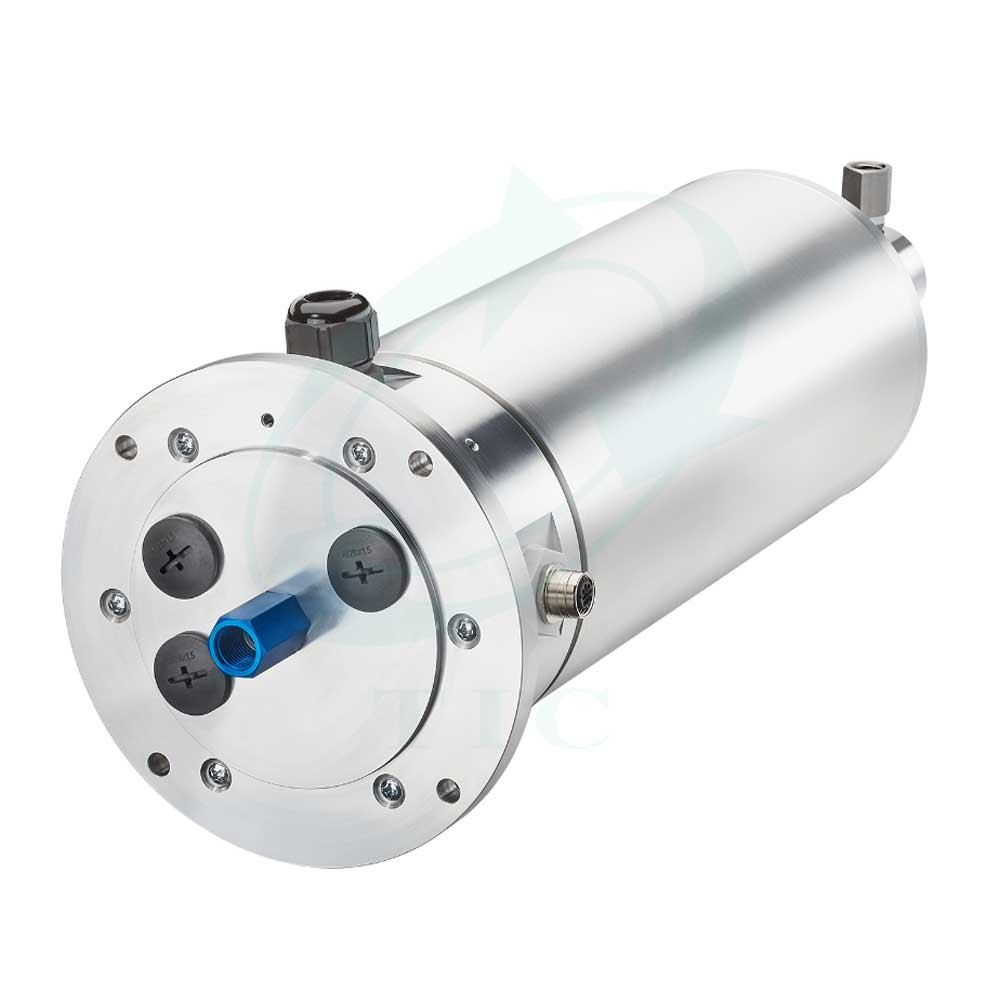

Model : SR120 (Slip ring) |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
body size
120 mm.
power supply
240-400 Vdc/ac
output
EtherNet/IP, EtherCAT, Profibus, ProfiNET, SAE J1939, IO Link, CANopen, 100 Mbit/sec.
Wiring Diagram
Cable
speed
300 RPM
electrical load voltage
25 A, 240 V AC/DC
20 A, 400 V AC/DC
16 A, 240 V AC/DC
10 A, 400 V AC/DC
20 A, 400 V AC/DC
16 A, 240 V AC/DC
10 A, 400 V AC/DC
IP
IP64
Design By
Germany
details
Slip rings are generally used to transmit power, signals or data. The transmission between the stator and rotor occurs through The sliding contact and high reliability SR120 slip ring is ideal for applications requiring high transmission rates. High data, three-chamber system allows parallel transmission of signals, loads and data up to 100 Mbit/s.
operating temperature range
-35°C to 85°C
Housing Material
Work with materials that are strong and durable.
Data Sheet
