Encoder
Brand : Kubler
|

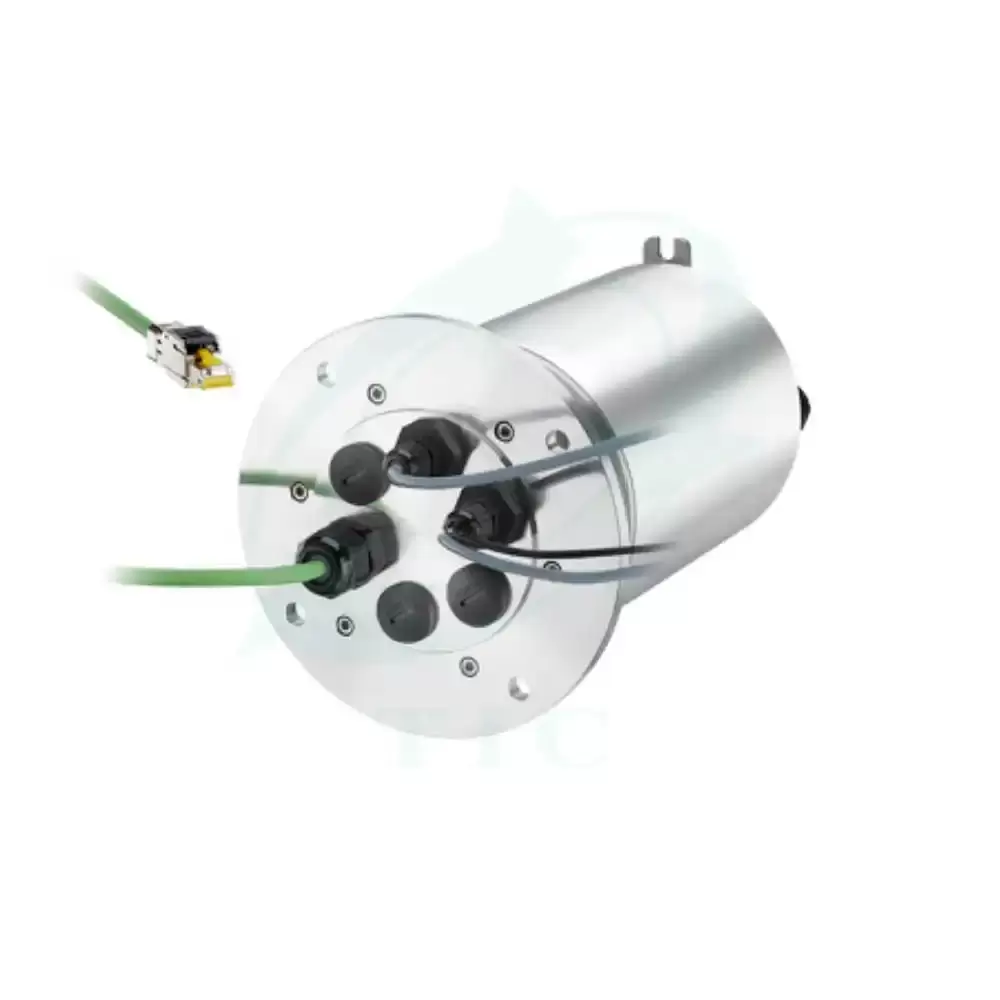

Model : SR160Series (Slip ring) |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
body size
160 mm.
Wiring Diagram
Connector M12,M23
speed
150 RPM
electrical load voltage
25 A, 230 V AC/DC
20 A, 400 V AC/DC
16 A, 230 V AC/DC
10 A, 400 V AC/DC
20 A, 400 V AC/DC
16 A, 230 V AC/DC
10 A, 400 V AC/DC
operating temperature range
-35 °C to 85 °C
Housing Material
Work with materials that are strong and durable.
power supply
230-400 Vdc/ac
output
EtherNet/IP, EtherCAT, Profibus, ProfiNET, SAE J1939, IO Link, CANopen, 100 Mbit/sec.
IP
IP65
Design By
Germany
details
Slip rings are generally used to transmit power, signals or data. The transmission between the stator and rotor occurs through The sliding contact and high reliability SR160 slip ring is ideal for applications requiring high transmission rates. High data, three-chamber system allows parallel transmission of signals, loads and data up to 100 Mbit/s.
Data Sheet
