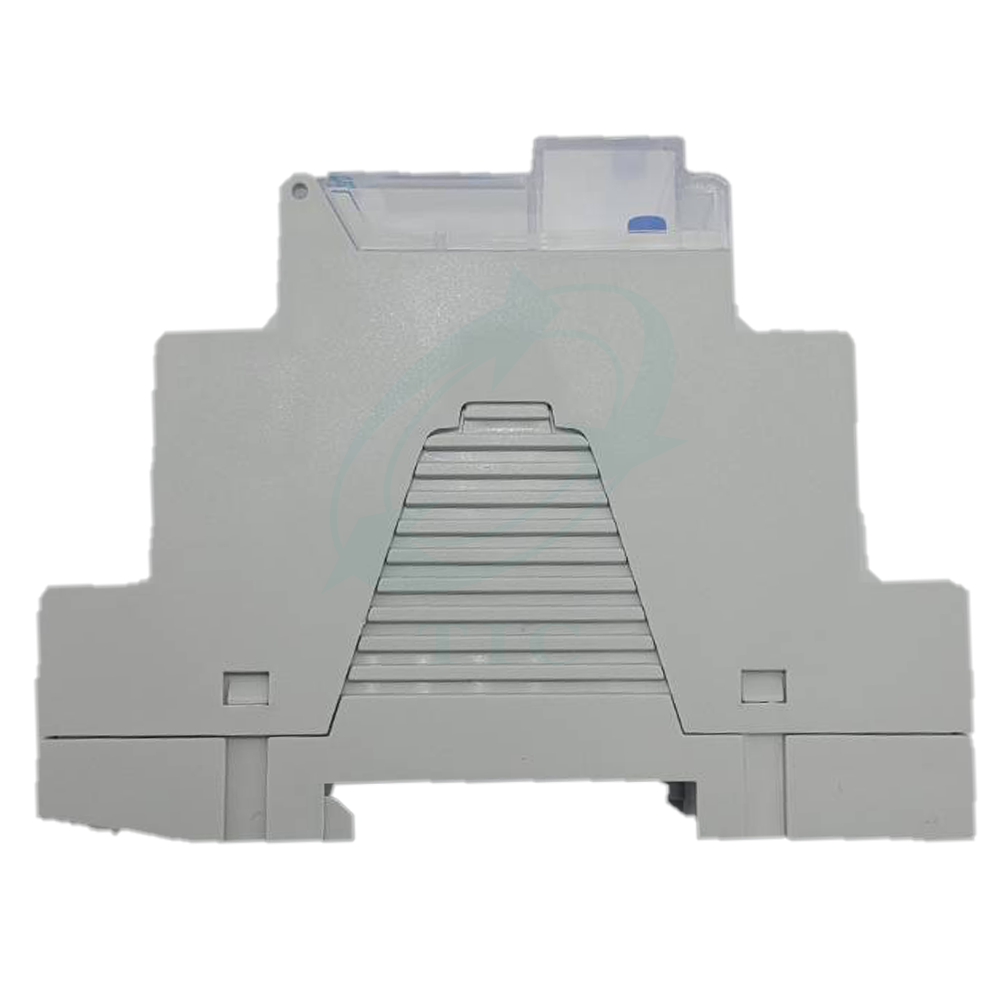

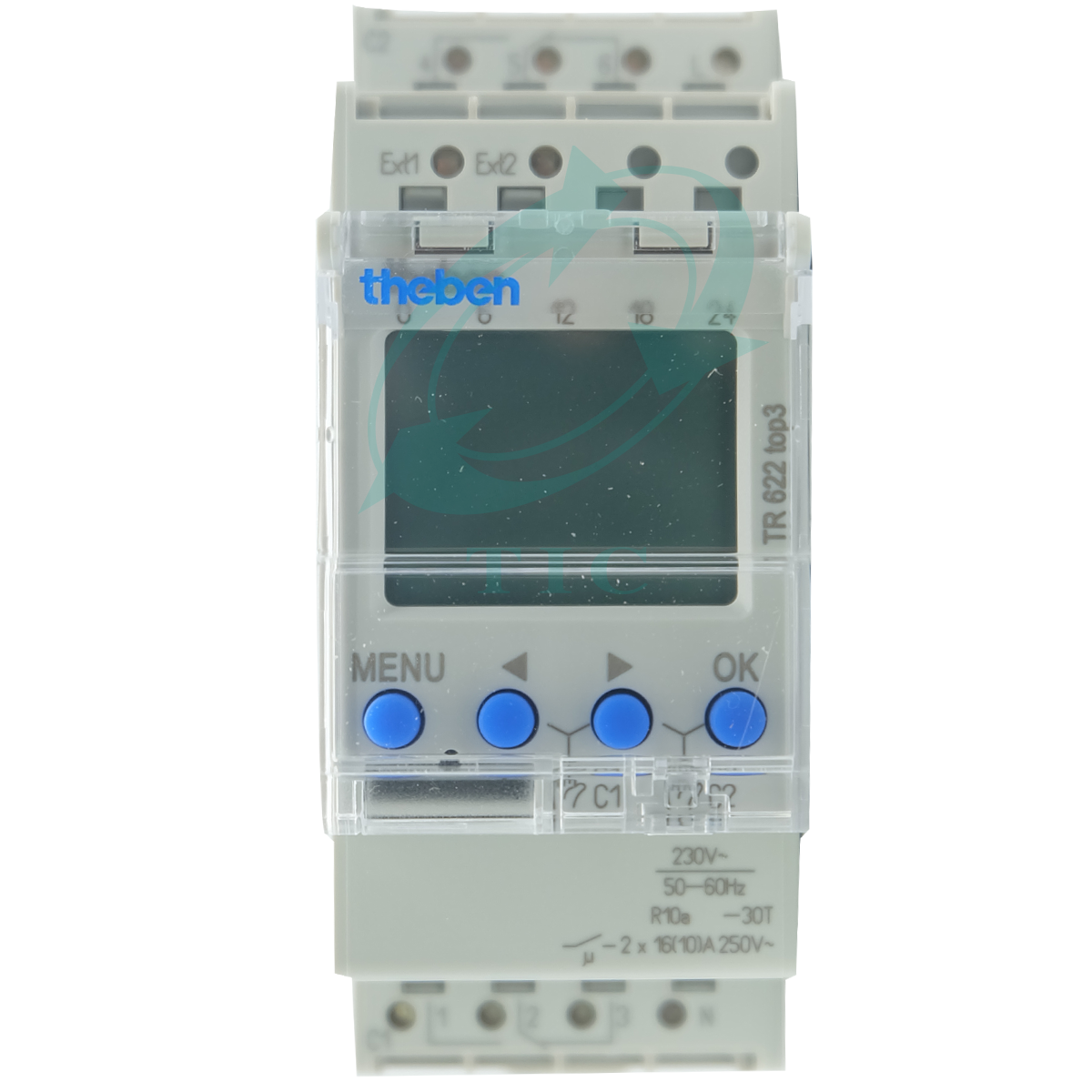

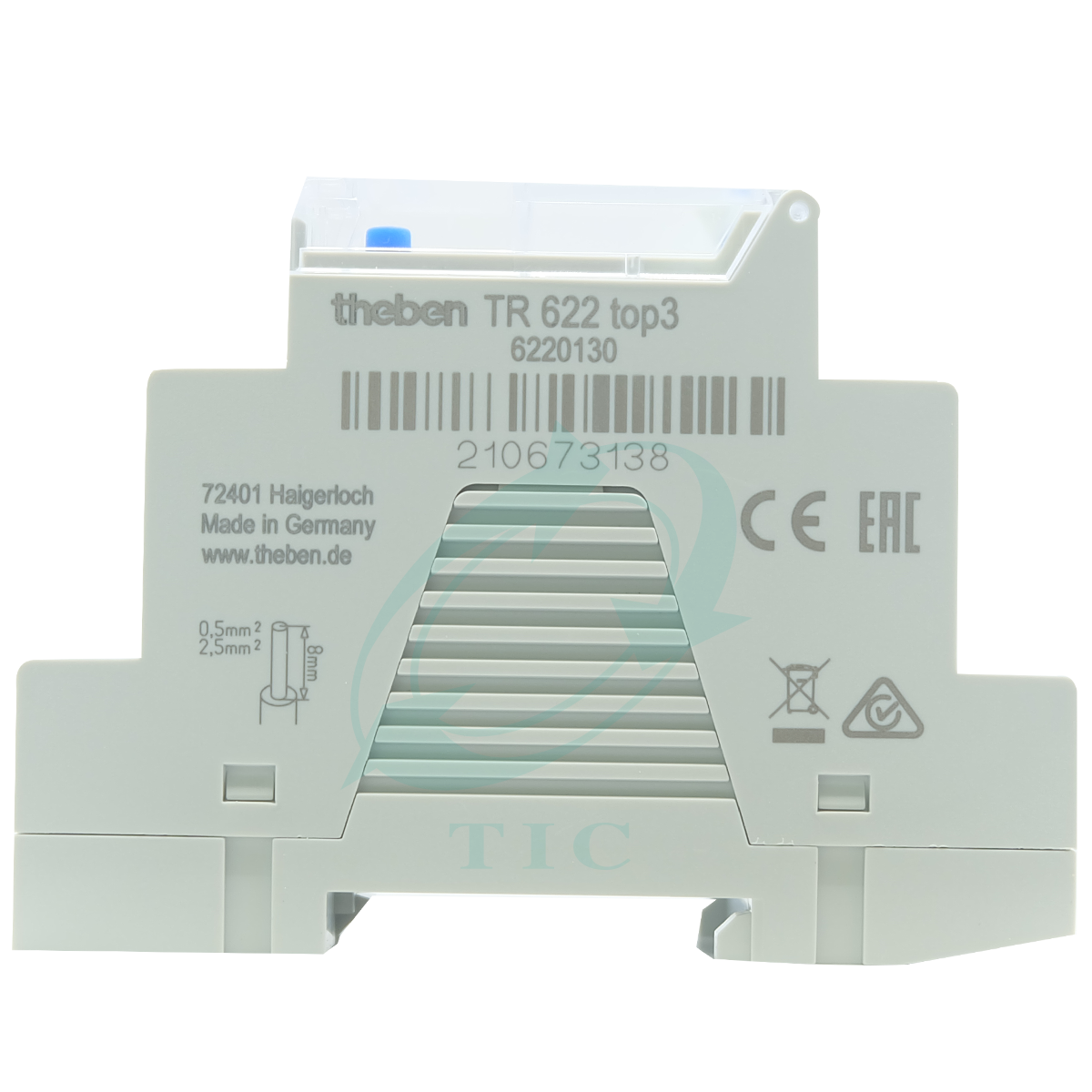

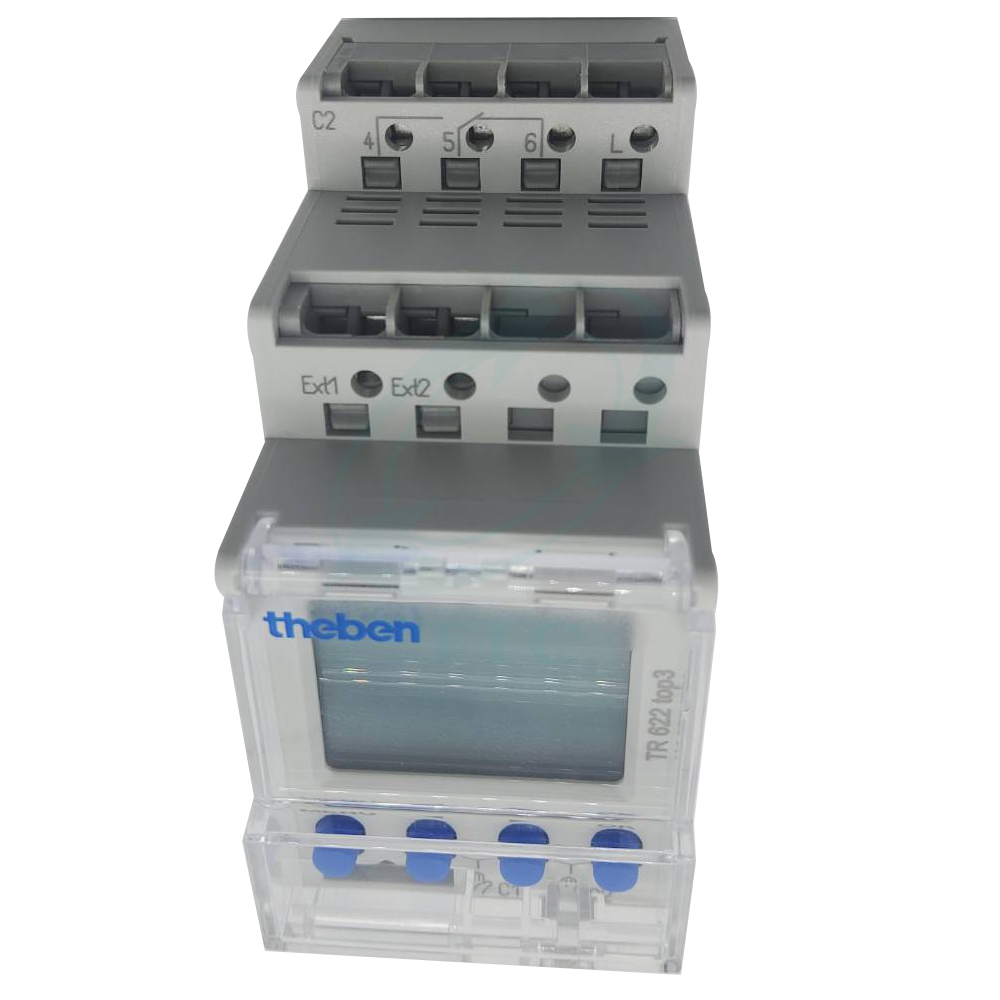

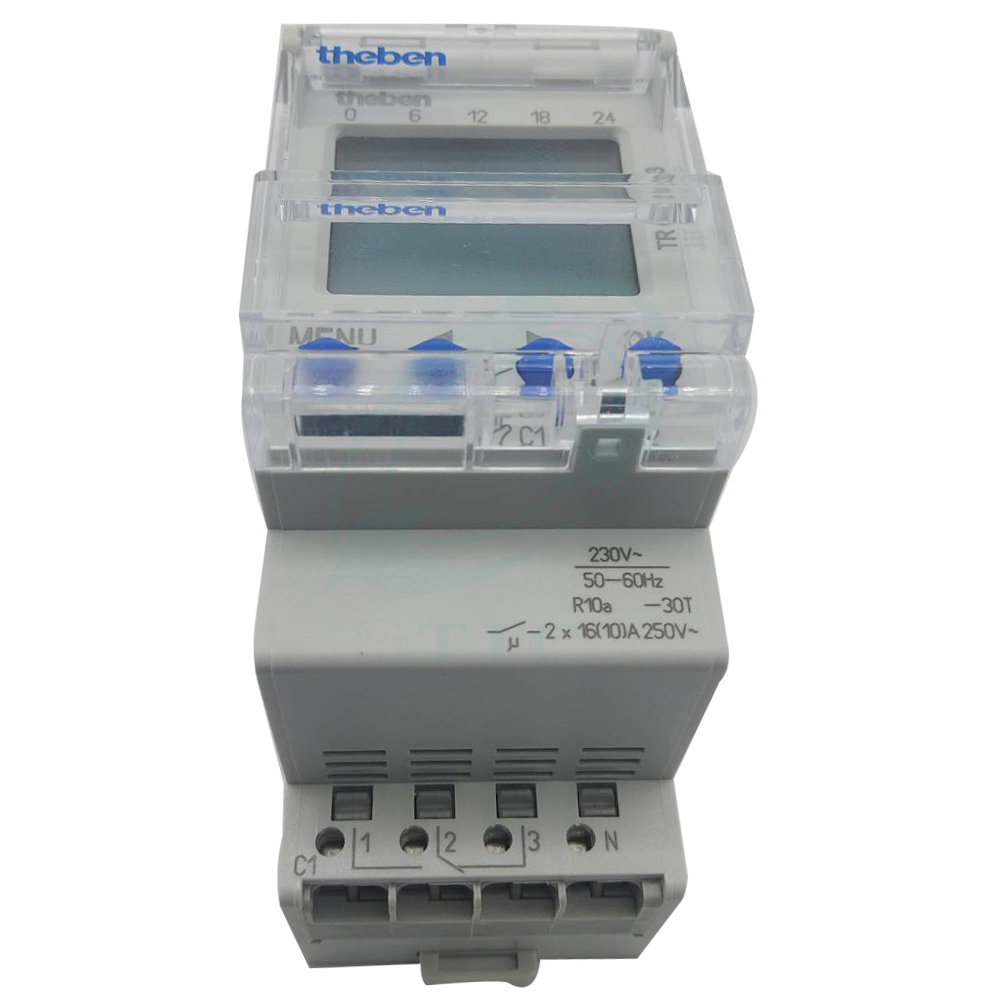

Digital Time Switch
Brand : Theben
|
Model : TR622 Top3 |
Type : Counter/Timer/Time switch Properties
body size
-
operating temperature range
-20°C to 50°C
power supply
230 VAC, 50/60 Hz
IP
IP20
details
- Digital time switch with weekly program form Germany
- Power reserve 10 years
- 84 memory locations 7 day/ 24 hour
- 2 Output 16A @230VAC
- Operating frequency 50/60Hz
- Shortest switching times 1 Second
- Support memory card Use for Copying programs
- Support Bluetooth Obelisk Top3 (option
- Working temperature -30°C to 55 °C
- Protection degree (front): IP20
- Standards according to EN 60 730-1
- Power reserve 10 years
- 84 memory locations 7 day/ 24 hour
- 2 Output 16A @230VAC
- Operating frequency 50/60Hz
- Shortest switching times 1 Second
- Support memory card Use for Copying programs
- Support Bluetooth Obelisk Top3 (option
- Working temperature -30°C to 55 °C
- Protection degree (front): IP20
- Standards according to EN 60 730-1
Data Sheet
