Thermocouple, RTD, Voltage, Current

LCD Display can record and real-time display

100 – 240 VAC

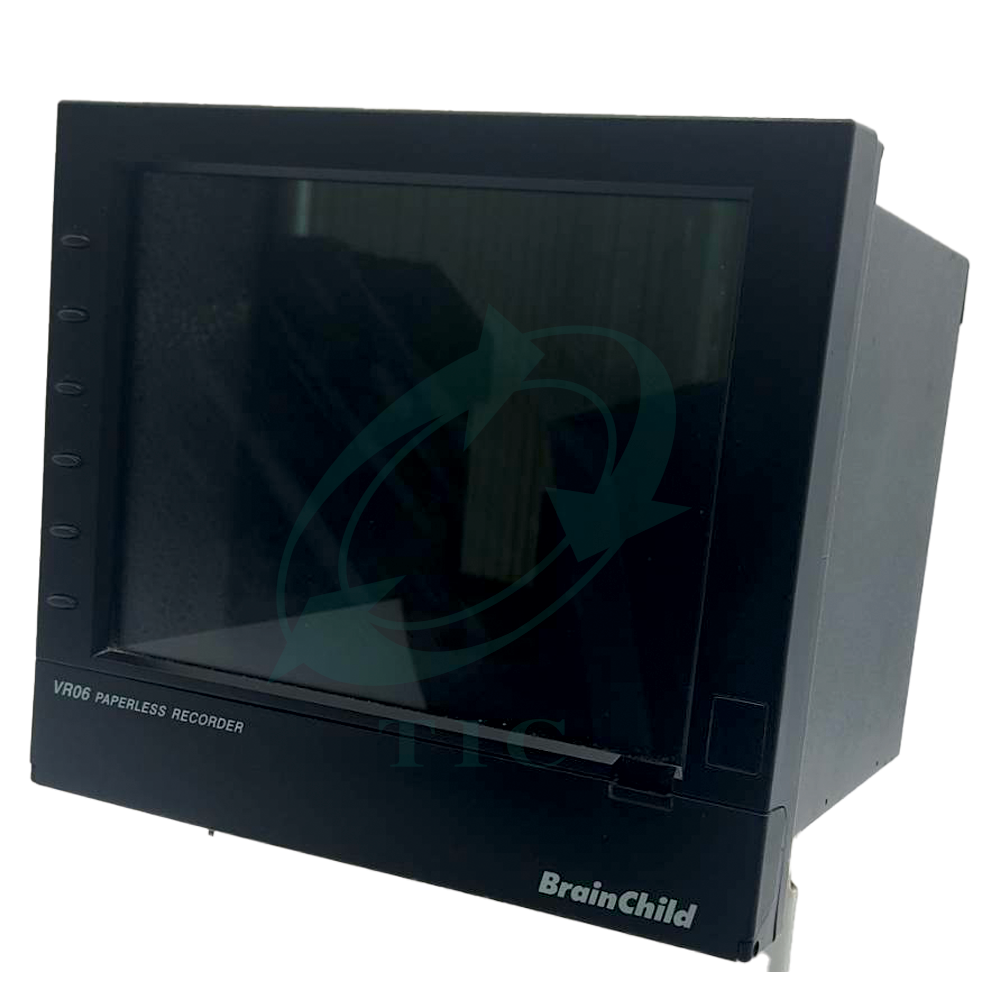

It is the world first paperless recorder of the same size in highest resolution VGA TFT display

6.4"Color TFT LCD with 640X480 pixels resolution

Alarm output 4 ch.(Open collector)

- 6.4"Color TFT LCD with 640X480 pixels resolution
- Universal input :Thermocouple (TC) : J, K, T, E, B, R, S, N, L/ RTD PT100Ω(DIN/JIS)Voltage : 0-60mV, 0-10VDCCurrent : 0-20 mA
- 6 isolated analog input in maximum
- 8MB storage memory on board
- Storage media : 128, 512 MB, 1 GB CF (Compact Flash) cards
- Various display formats : Vertical trend , horizontal trend, bar Graph, numerical or mixed- Alarm and sensor break detection function
- Option : Analog output, digital input, digital output, 24VDC Auxiliary Power Supply
- Sampling rate : 5 times/ second
- Approval standard : UL61010C-1, CSA C22.2 No. 24-93, CE: EN61010-1 (IEC1010-1)- 174 mm short depth
- Communication : Standard Ethernet and optional RS-232/ 422/ 485
- Power supply :90-250VAC, 47-63Hz, 60VA, 30W maximum11-18VDC or 18-36 VDC, 60VA, 30W maximum

Internal memory: 256 MB Flash
