Brand : Carlo Gavazzi
|

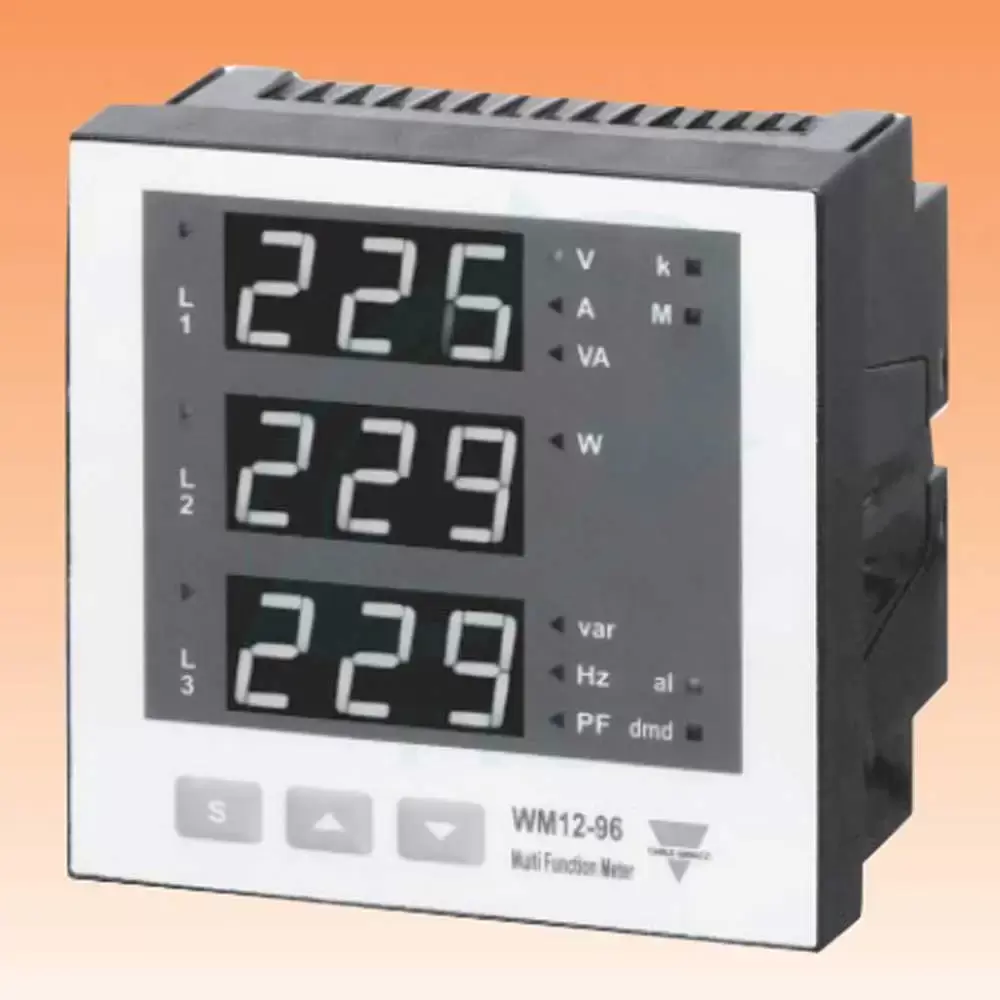

Model : WM12-96 Series |
Type : Energy Meter Analyzer Properties
Conectivity
RS485 Depend on ordered
screen size
96x96 mm
installation
Panel mount
body size
96x96 mm
Accuracy
±0.5 F.S
operating temperature range
-20°C to +55°C
Weight
400 g
power supply
230 VAC +10 % to- 15 %
output
RS485
Measuring range
Measure both 1-phase and 3-phase systems, installed in front of the cabinet (Panel)W, Wdmd, Var, VA, VAdmd, PF, V, A, Hz, Wdmd Max
measure current
Measure voltage 400 VAC , 660 VAC
pressure gauge
400 VAC , 660 VAC
temperature/humidity
0 °C to 50 °C and not more than 90 % RH
IP
IP65
details
True - RMS display
Data Sheet
